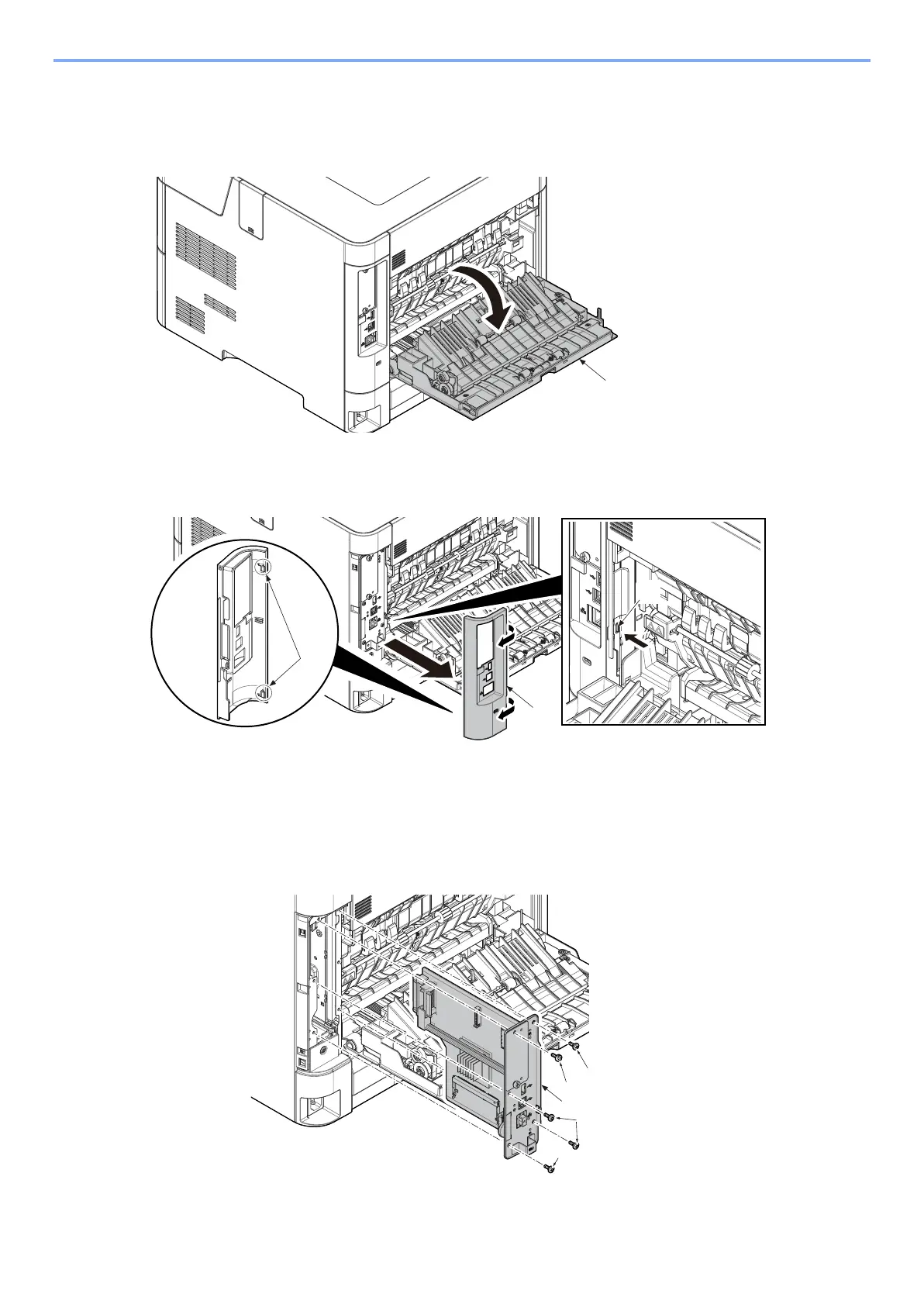

(4-1)Detaching and refitting the main PWB
1
Open the rear cover (a).
2
Release hook (b) and detach the interface cover (a).
• Attach 2 hooks (c) first when putting it back.
3
Unplug the power cable.
4
Detach the main PWB.
1 Remove four screws (a) and (b) then detach the main PWB unit (c).
2 Check or replace the main PWB and refit all the removed parts.
