4-18
Maintenance ＞ Assembly and disassembly

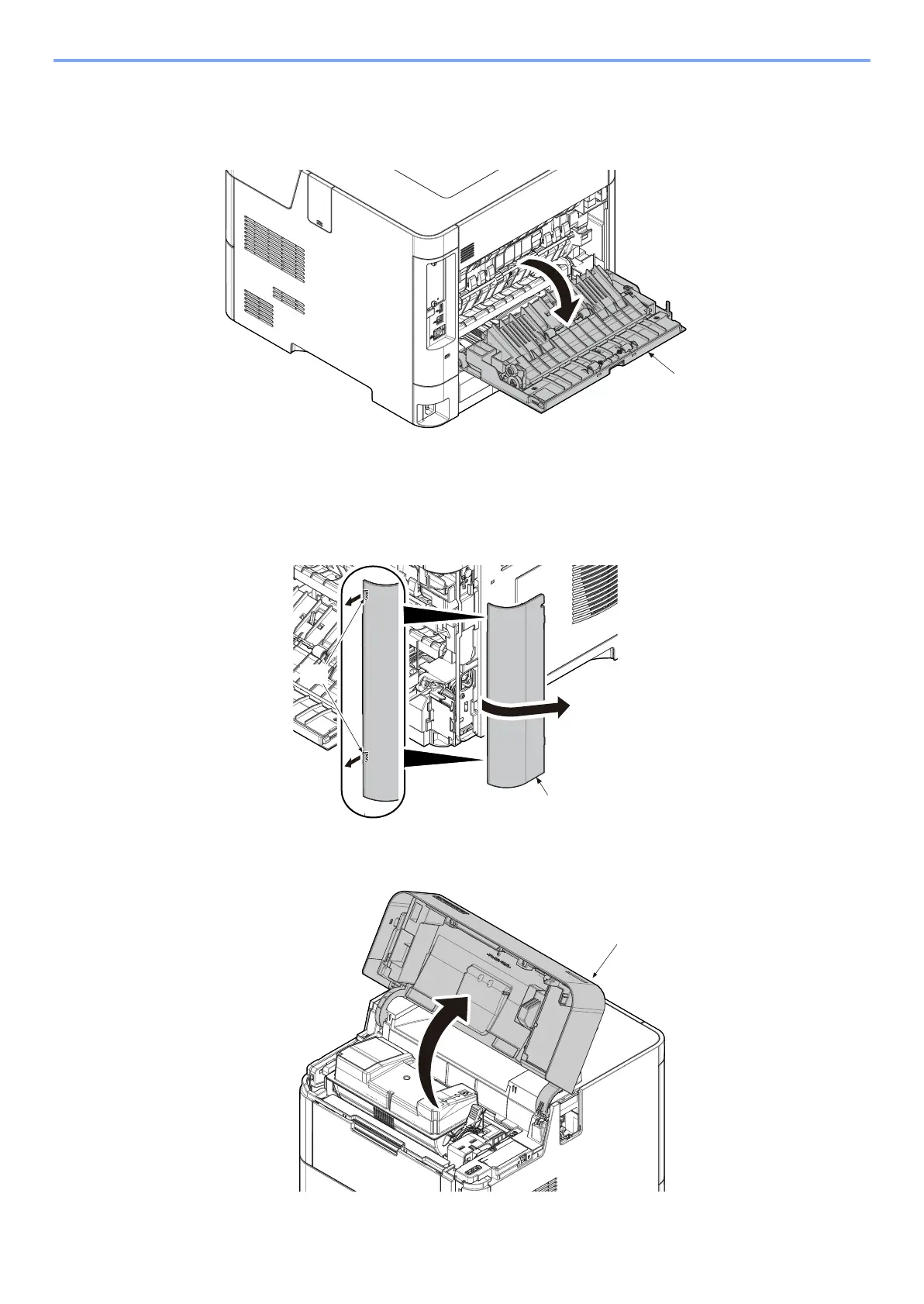

(1-3)Detaching and refitting the rear left and left cover
1
Open the rear cover (a).
2
Detach the rear left cover (a).
1 Pull the cover and release hook (b).
2 Detach the rear left cover (a) by rotating it.
3
Open the top cover (a).
a
a
b
a
