Machine Design ＞ Electric parts (Optional unit)
[CONFIDENTIAL]
(2-2)Part name table
(3) Paper feeder base (PB-325)

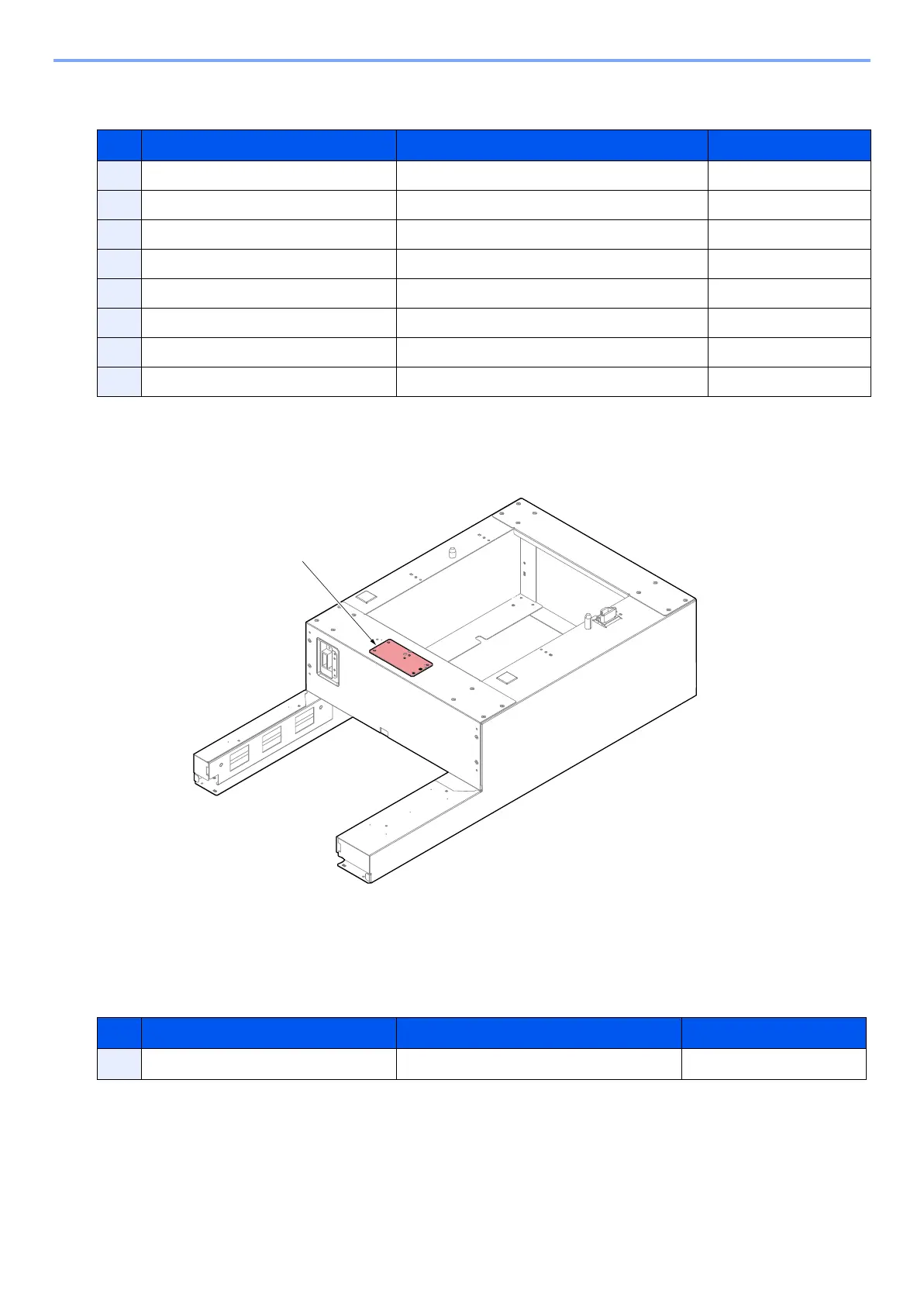

(3-1)Layout
(3-2)Part name table
No. Name used in service manual Name used in parts list Part. No.
1 PF PWB PARTS PWB PF MAIN ASSY SP 303S39403_
2 PF tray top position sensor PARTS SENSOR OPT. SP 302P79401_
3 PF paper feed sensor PARTS SENSOR OPT. SP 302P79401_
4 PF tray bottom position sensor PARTS SENSOR OPT. SP 302P79401_
5 PF cover switch SW.PUSH 7SP01000006+H01
6 PF lift motor PARTS DC MOTOR ASSY SP 303S39402_
7 PF paper feed motor PARTS MOTOR-PM DP SP 302S09401_
8 PF interface conector - -
1 PB PWB
Consist of the printer engine PWB and the relay PWB to the bulk feeder PF
feeder.
No. Name used in service manual Name used in parts list Part. No.
1
PB PWB
PARTS PWB ASSY PB SP 303N19401_
1
