Utax P-4532DN - (5-4) Detaching and reattaching the power source fan motor; (5-5) Detaching and reattaching the rear fan motor. (100 V 60;55;50 ppm only)

4-40
Maintenance ＞ Assembly and disassembly
(5-4)Detaching and reattaching the power source fan motor
1
Remove the right cover.
(See Page 4-15)
2
Detach the power source fan motor.

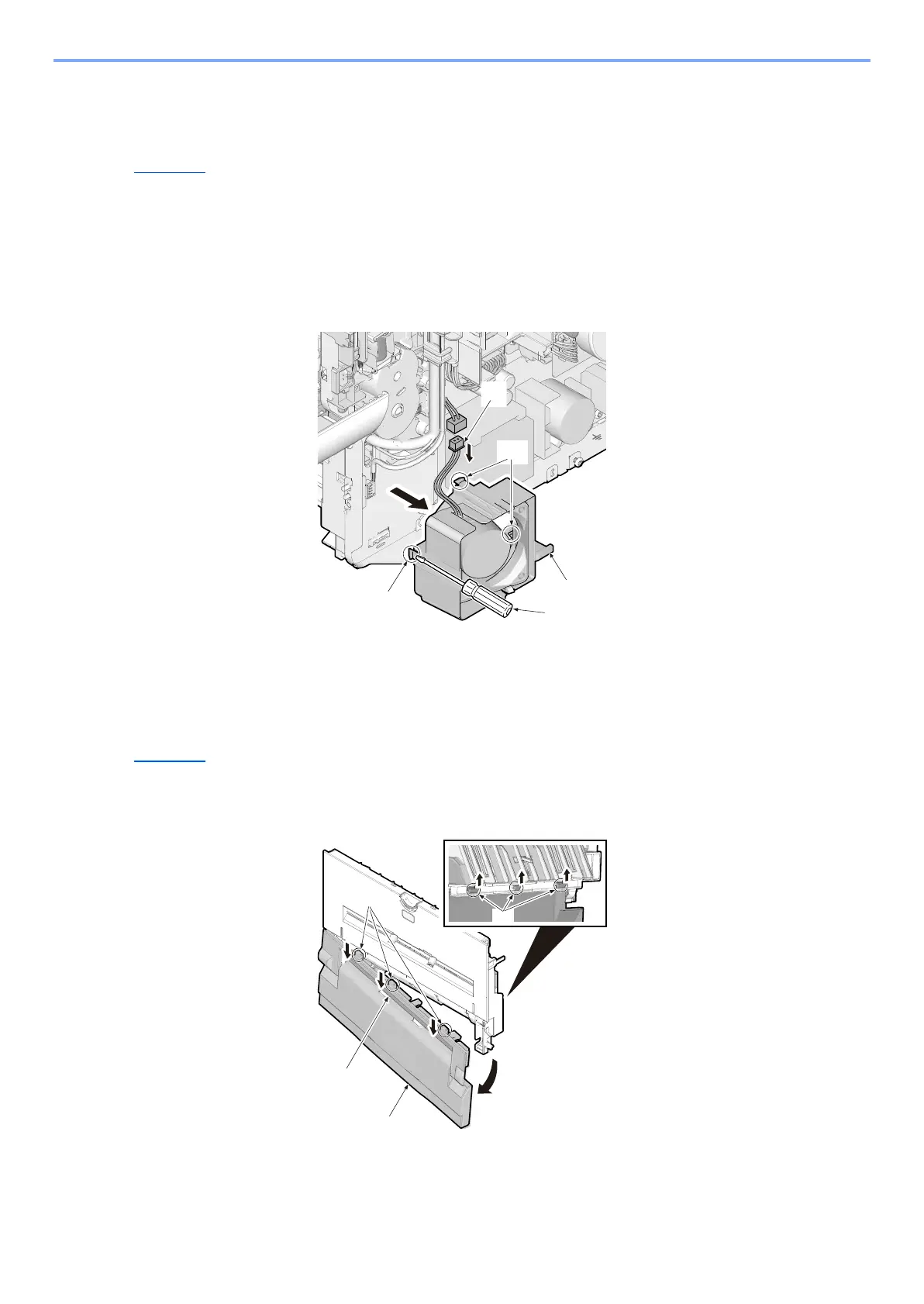

1 Pull the connector (b) of the power source fan motor (a).
2 Release three hooks (c) using flat-blade screwdriver (d) and then detach the power source fan motor (a).
3 Check or replace the power source fan motor and refit all the removed parts.
(5-5)Detaching and reattaching the rear fan motor. (100V 60/55/50ppm only)
1
Detach the rear cover assembly.
(See Page 4-21)
2
Release three hooks (a) and then detach the lower rear cover (c) and cassette cover (d)
by pulling out three projections.
3
Detach the rear fan motor.
1 Remove two screws (a) and detach the upper rear cover (b).
