3 - 7 Mechanical construction (option)

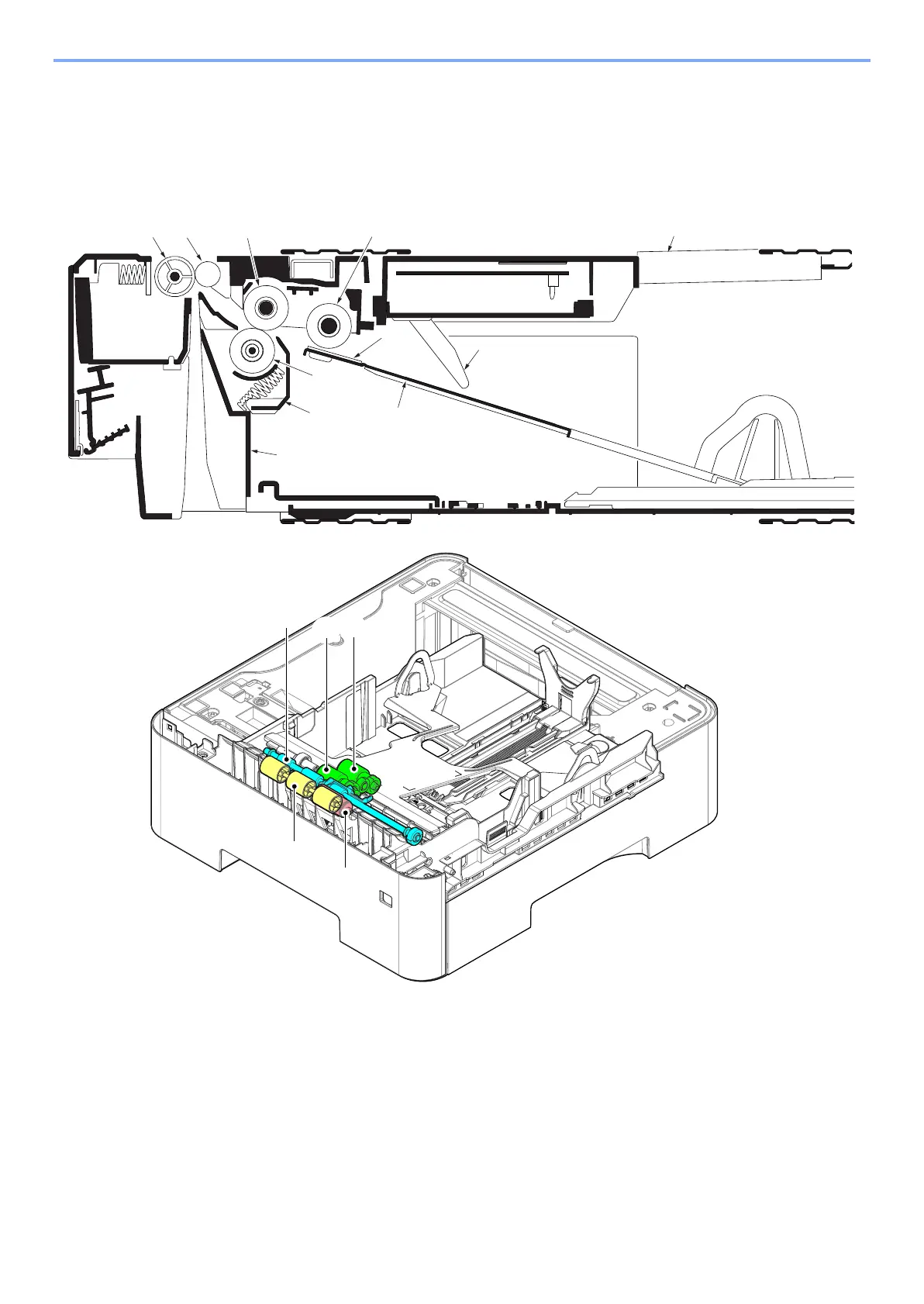

(1) Paper feeder (PF-3110)
The paper feeder conveys paper from the cassette to the printer. Cassette can hold up to 500 sheets of paper.
Paper is fed from the paper feeder by the rotation of the pickup roller and paper feed roller. The retard roller
prevents multiple sheets from being fed at one time, via the torque limiter.
1 PF paper feed roller
2 PF pickup roller
3 PF retard roller
4 Retard roller guide
5 PF conveying roller
6 PF conveying pulley
7 Bottom plate
8Bottom pad
9 Cassette base
10 Upper cover
11 Actuator (Paper gauge sensor)
2
8
3
7
9
4
10
11
1
5
6
1
2
3
5
6
