Utax P-4532DN - (3) Developer section; (3-1) Detaching and refitting the developer unit

4-7
Maintenance ＞ Maintenance Parts replacement procedure
4

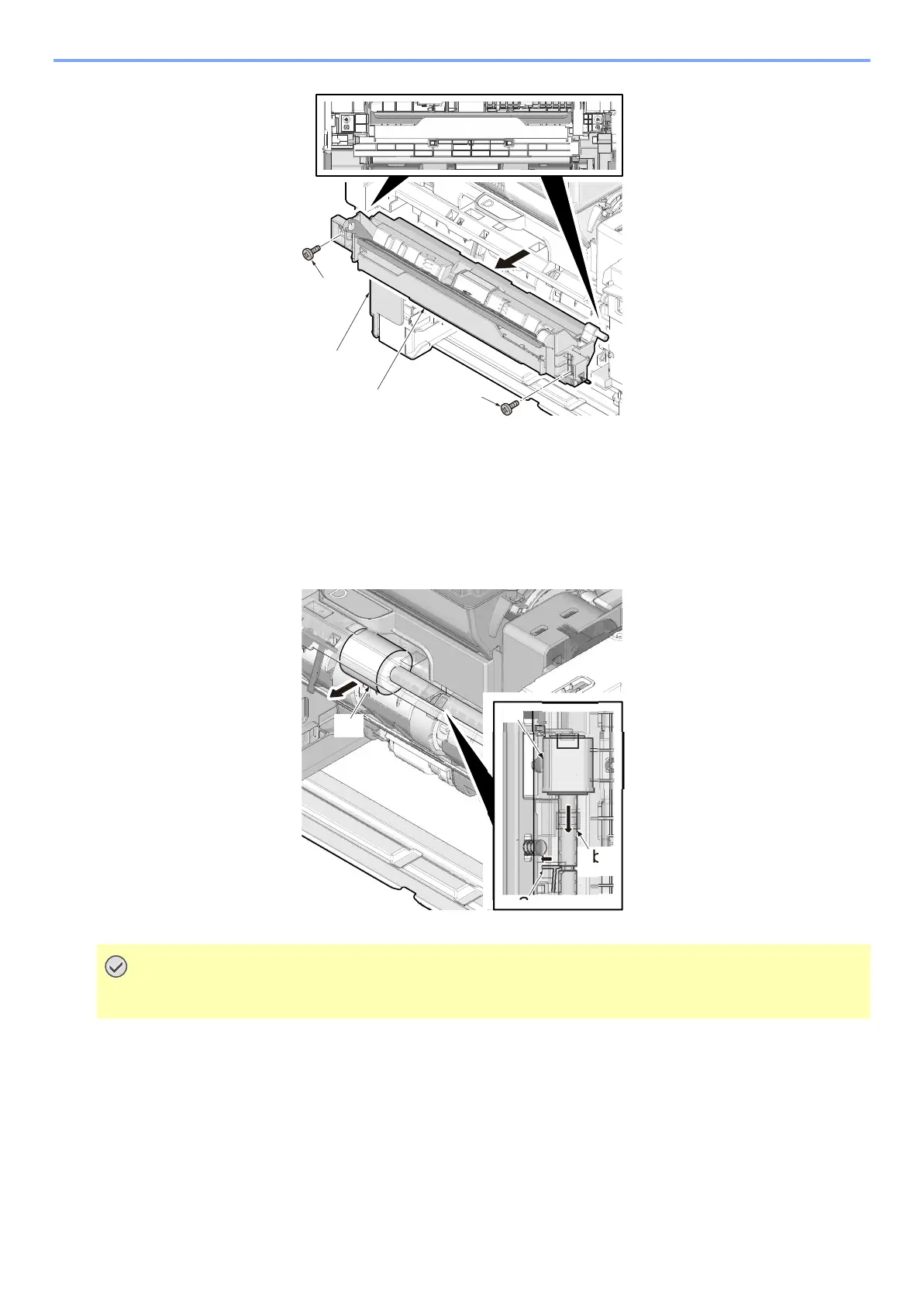

Detaching and refitting the paper feed roller
1 Release the lock lever (a) and then slide the MP paper feed roller shaft (b).
2 Detach the MP paper feed roller (c).
3 Check or replace the paper feed roller and refit all the removed parts.
(3) Developer section
(3-1)Detaching and refitting the developer unit
1
Remove toner container (a)
1 Open the top cover (b).
2 Rotate the lock lever (c) and detach the toner container (a).
Important
PayattentionnottotouchonsurfaceinthenewMPfeedrollerreplacement.
b
a
b
c
b
a
c
c
