Utax P-4532DN - 3 - 4 Electric parts (Optional unit); (1) Paper feeder (PF-3110); (1-1) Layout

3-18
Machine Design ＞ Electric parts (Optional unit)
[CONFIDENTIAL]
3 - 4 Electric parts (Optional unit)
(1) Paper feeder (PF-3110)

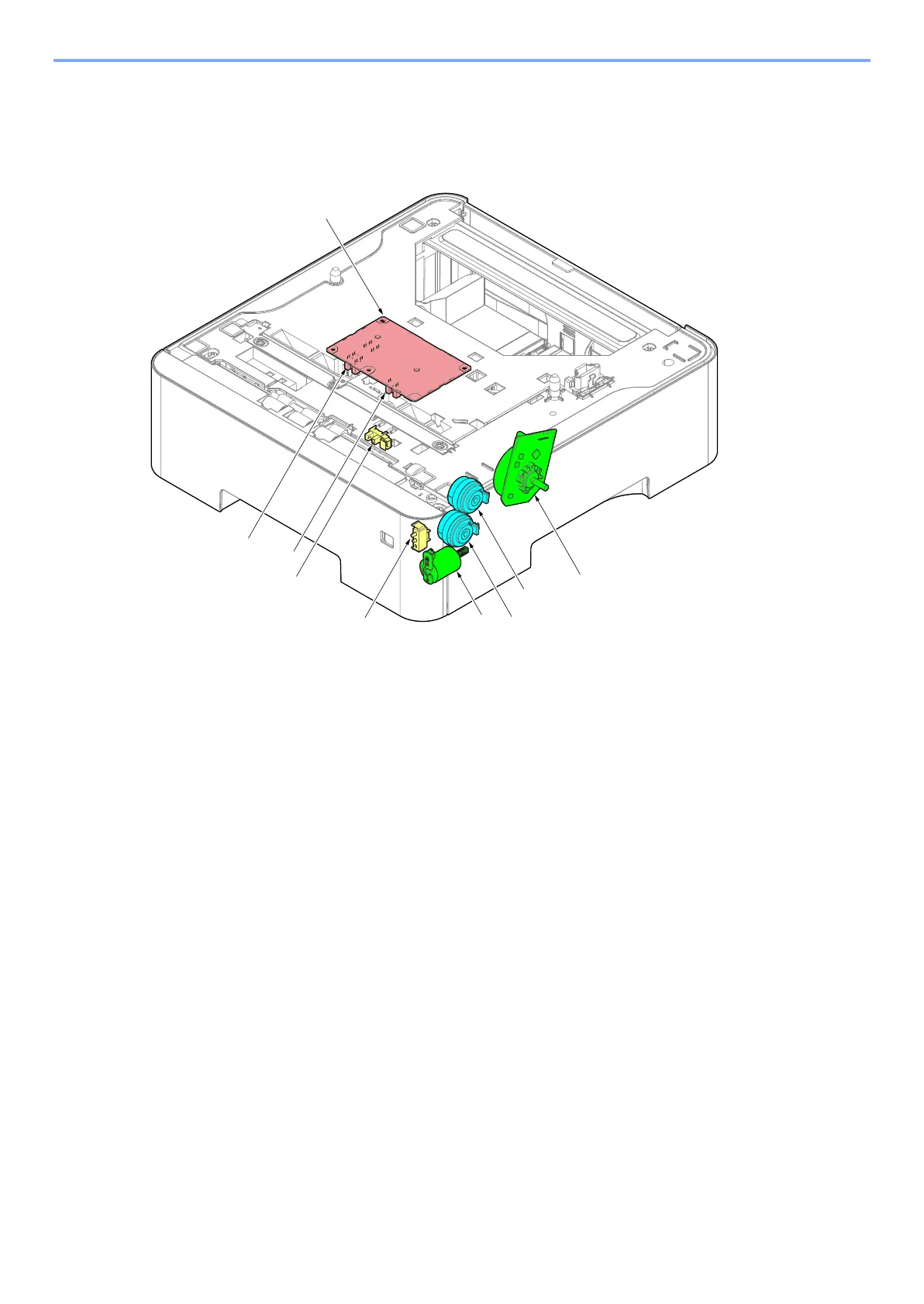

(1-1)Layout
1PF PWB
Controls electrical components in the paper feeder and communications with
the printer.
2 PF paper sensor 1
Detects the paper remaining amount level.
3 PF paper sensor 2
Detects the paper remaining amount level.
4 PF lift sensor
Detects the top limit of the bottom plate.
5 PF conveying sensor
Detects paper jam in the paper feeder
6 PF cassette size switch
Detects the paper size dial setting of the paper setting dial.
7 PF feed motor
Drives the paper feed mechanism in the paper feeder.
8 PF lift motor
Operates the bottom plate in the cassette.
9 PF feed clutch
Controls the paper feed from the cassette.
10 PF conveying clutch
Controls the paper conveying.
1
2,3
5
6810
4
7
9
