3-15
Machine Design ＞ Electric parts
[CONFIDENTIAL]
(6) Other parts

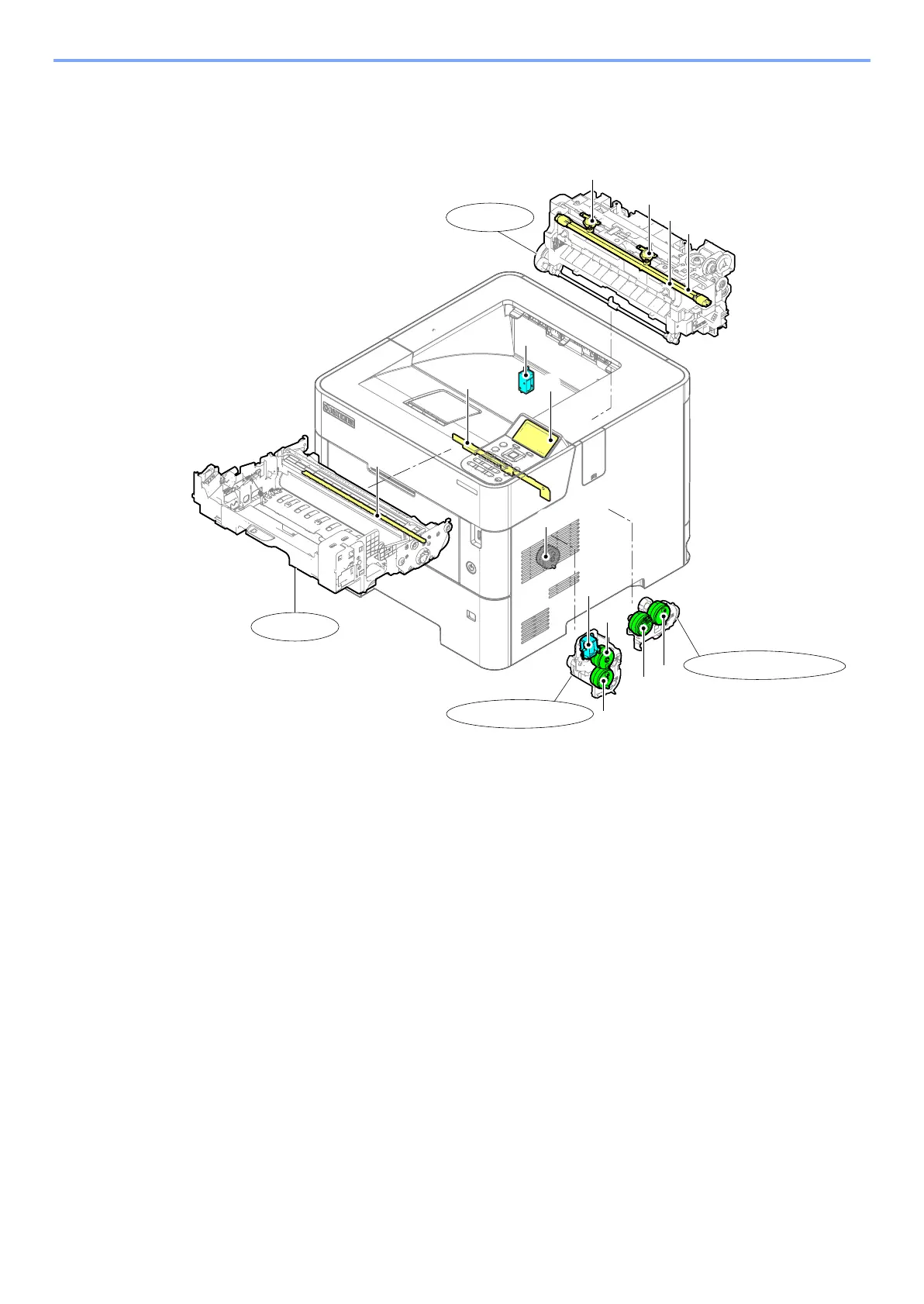

(6-1)Layout
*1:60/55/50 ppm model, *2：100V model only
1 Paper feed clutch
Primary paper feed from cassette.
2 Registration clutch
Controls the secondary paper feed.
3 Developer clutch
Controls the drive of the developer.
4 Conveying clutch
Controls the paper conveying.
5 Duplex clutch
Controls the drive of the duplex feed roller.
6 MP solenoid
Controls the MP bottom plate.
7 Feedshift solenoid*1
Operates the feedshift guide.
8LCD
LCD display. Displays an operating state.
9 Cleaning lamp
Eliminates the residual electrostatic charge on the drum.
10 Fuser heater 1
Heats the heat roller.
11 Fuser heater 2
Heats the heat roller.
12 Fuser thermostat 1
Prevents overheating of the heat roller.
13 Fuser thermostat 2
Prevents overheating of the heat roller.
14 Drum heater*2
Defumidifying the drum
12
11
8
6
9
3
2
4
Feed drive unit
1
7
5
13
10
14
Drum unit
Fuser unit
Developer drive unit
