Utax P-4532DN - (9) Duplex conveying section

3-37
Machine Design ＞ Mechanical construction
[CONFIDENTIAL]

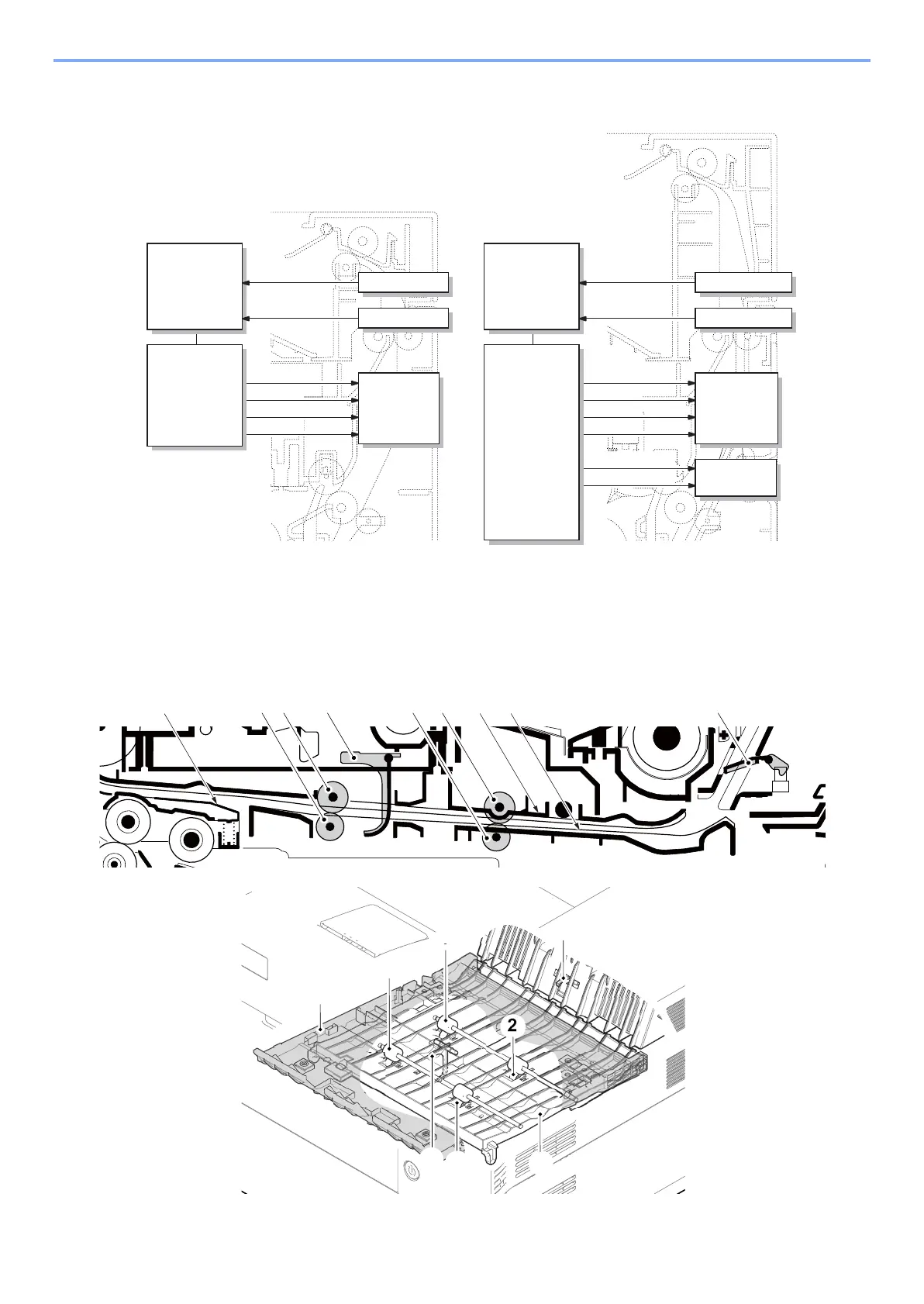

Block diagram
*1: 60/55/50 ppm model
(9) Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the eject/feedshift section to
the paper feed/conveying section when duplex printing.
(60/55/50 ppm model)
(45 ppm model)
