Utax P-4532DN - (1-4) Detaching and refitting the top cover; (1-5) Detach the rear cover.

4-21
Maintenance ＞ Assembly and disassembly
(1-4)Detaching and refitting the top cover
1
Remove the right cover.
(See Page 4-15)
2
Detach the left cover.
(See Page 4-18)
3

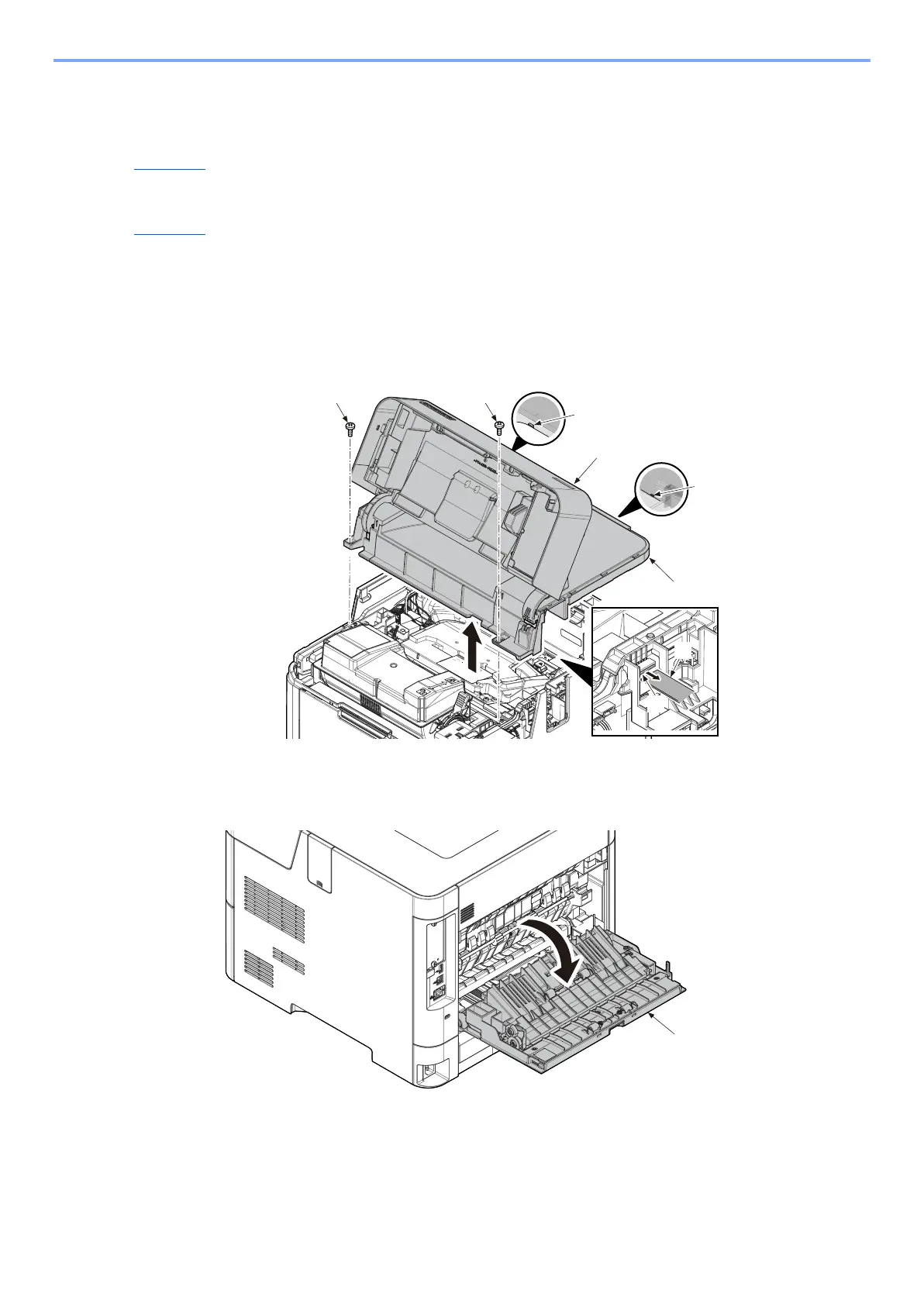

Detach the top cover assembly.
1 Remove two screws (b). (M3x8)
2 Release two hooks (c) and lift the top cover upward.
3 Pull out FFC (d) from the connector (e) and then remove the top cover assembly (f).
(1-5)Detach the rear cover.
1
Open the rear cover (a).
2
Detach the rear left cover (a).
1 Pull the cover and release hook (b).
2 Detach the rear left cover (a) by rotating it.
d
b
b
e
c
c
a
f
a
