Utax P-4532DN - (1-2) Part name table; (2) Paper feeder (PF-3100); (2-1) Layout

3-19
Machine Design ＞ Electric parts (Optional unit)
[CONFIDENTIAL]
(1-2)Part name table
(2) Paper feeder (PF-3100)

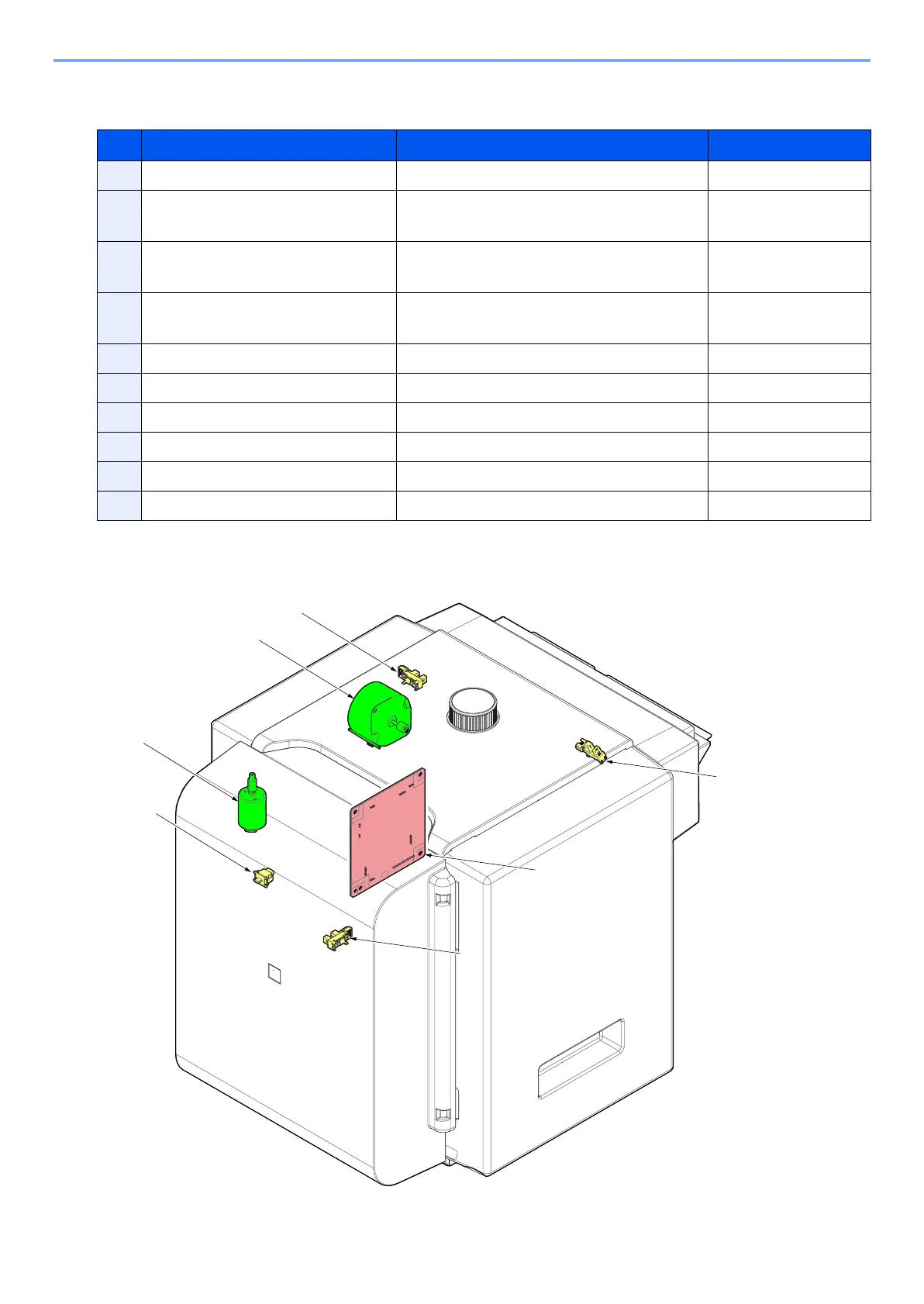

(2-1)Layout
No. Name used in service manual Name used in parts list Part. No.
1 PF PWB PARTS PWB ASSY PF MAIN SP 303NY9401_
2 PF paper sensor 1 -
(PARTS PWB ASSY PF MAIN SP)
-
(303NY9401_)
3 PF paper sensor 2 -
(PARTS PWB ASSY PF MAIN SP)
-
(303NY9401_)
4 PF lift sensor -
(PARTS PWB ASSY PF MAIN SP)
-
(303NY9401_)
5 PF conveying sensor SENSOR OPT. 7NXSG2A141++H01
6 PF cassette size switch SW.PUSH 7SP03072001+H01
7 PF feed motor PARTS MOTOR-BL W20 SP 302K99432_
8 PF lift motor DC MOTOR ASSY 303NY0102_
9 PF feed clutch CLUTCH 50 Z35R 302KV4404_
10 PF conveying clutch CLUTCH 50 Z35R 302KV4404_
7
6
2
5
1
4
3
