Utax P-4532DN - (5-2) Detaching and refitting the paper feed drive unit; (5-3) Detaching and refitting the center fan motor (100 V 60 ppm only)

4-39
Maintenance ＞ Assembly and disassembly
(5-2)Detaching and refitting the paper feed drive unit
1
Remove the right cover.
(See Page 4-15)
2

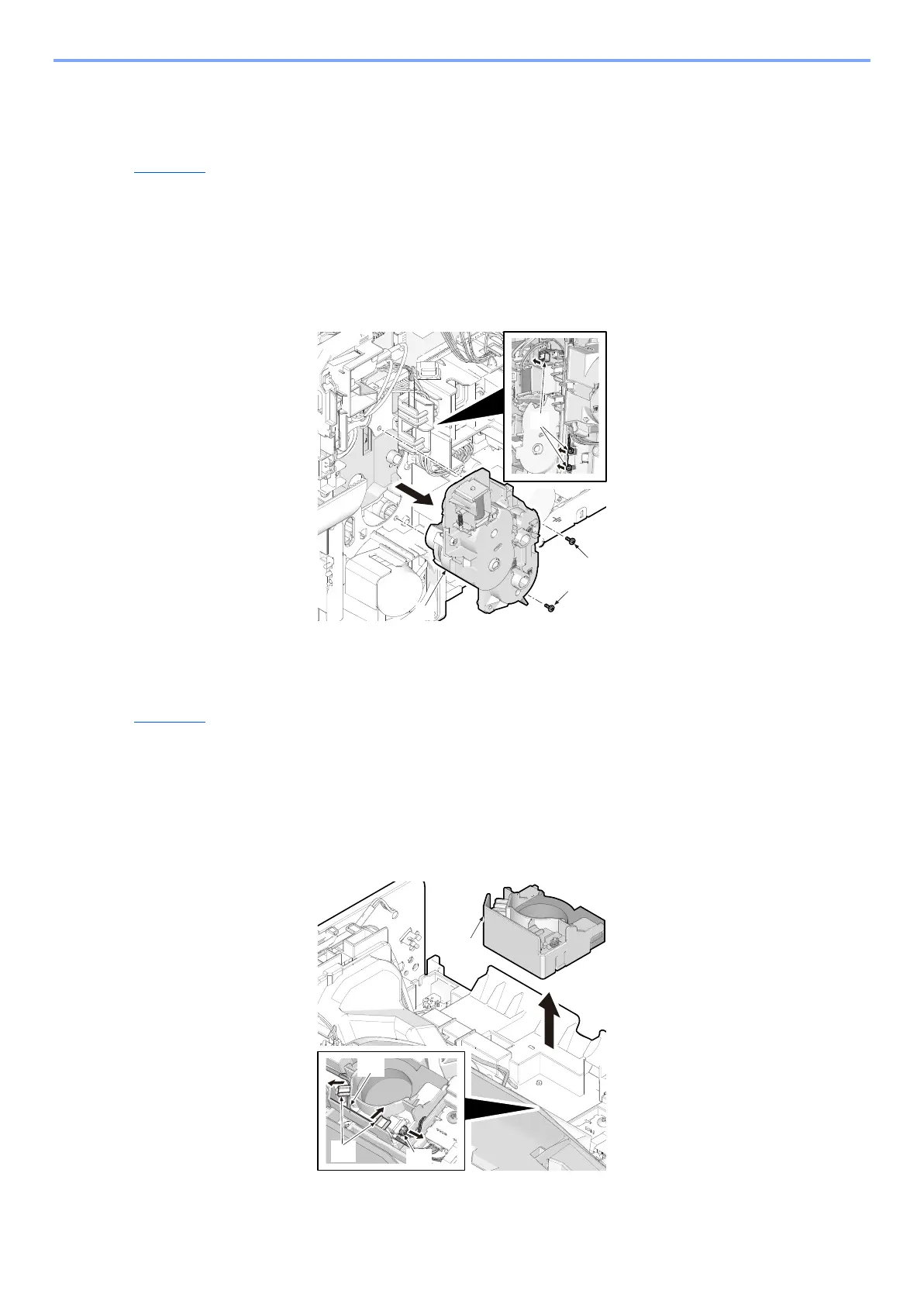

Remove the paper feed drive unit.
1 Pull the connector (a) out.
2 Remove 2 screws (b) and then detach the paper feed drive unit (c).
3 Check or replace the paper feed drive unit and refit all the removed parts.
(5-3)Detaching and refitting the center fan motor (100V 60 ppm only)
1
Detach the exit unit
(See Page 4-26)
2
Detach the center fan motor (d).
1 Disconnect the connector (a) and release the wire (b) from the hook (c).
2 Detach the center fan motor (d).
3 Check or replace the center fan motor and refit all the removed parts.
