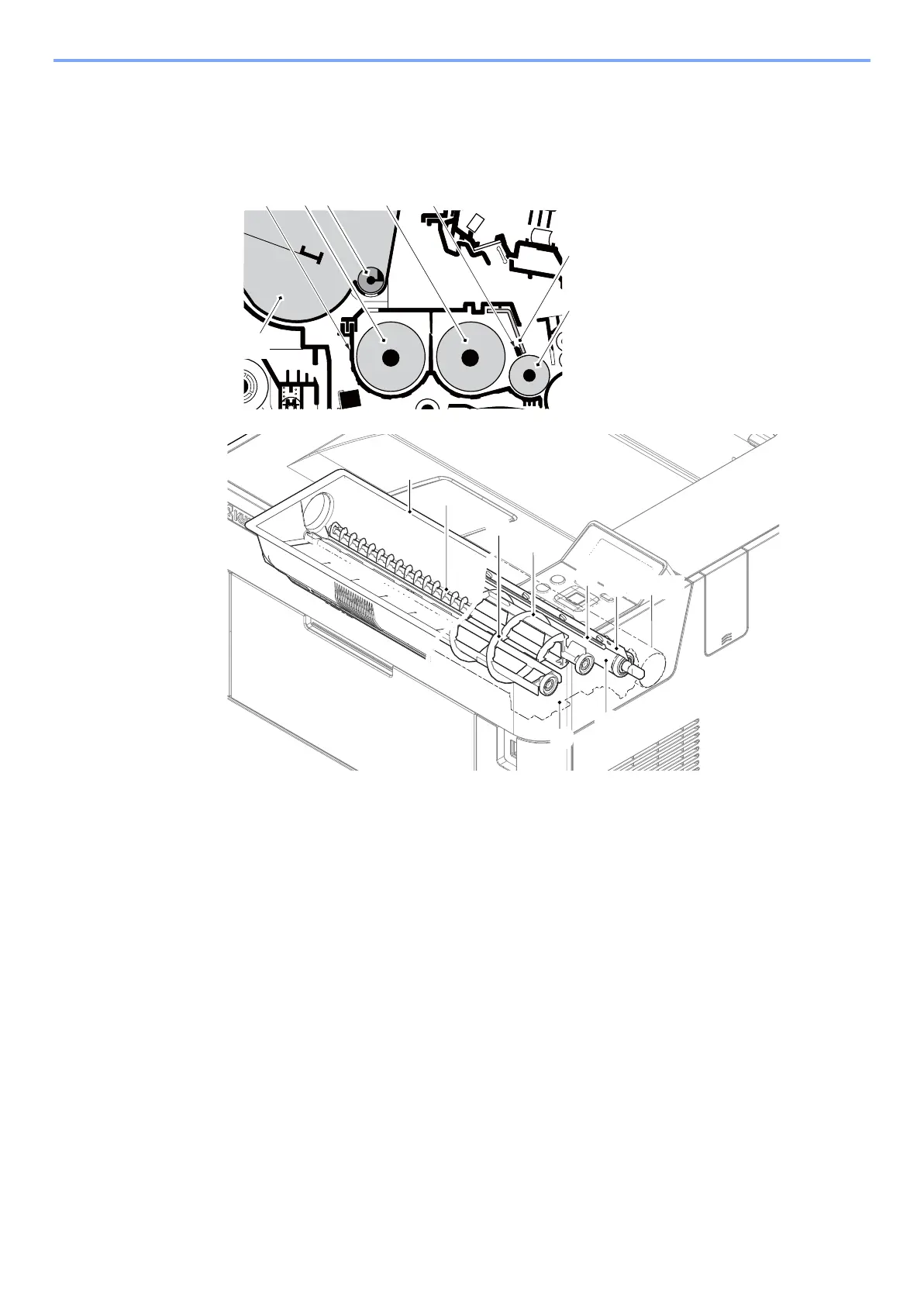

(4) Developer section
The developer unit consists of the developer roller that forms the toner layer, the developer blade and the developer
screws that agitate the toner.Also, the toner sensor checks whether or not toner remains in the developer unit.
1 Developer roller
2 Developer blade
3 Magnet blade
4 Developer screw A
5 Developer screw B
6 Developer case
7 Toner supply roller
8 Toner container
6 3
2
1
4
5
7
8
2
1
3
4
6
7
8
6
Drum
