Utax P-4532DN - (1-2) MP tray paper feed section

3-26
Machine Design ＞ Mechanical construction
[CONFIDENTIAL]

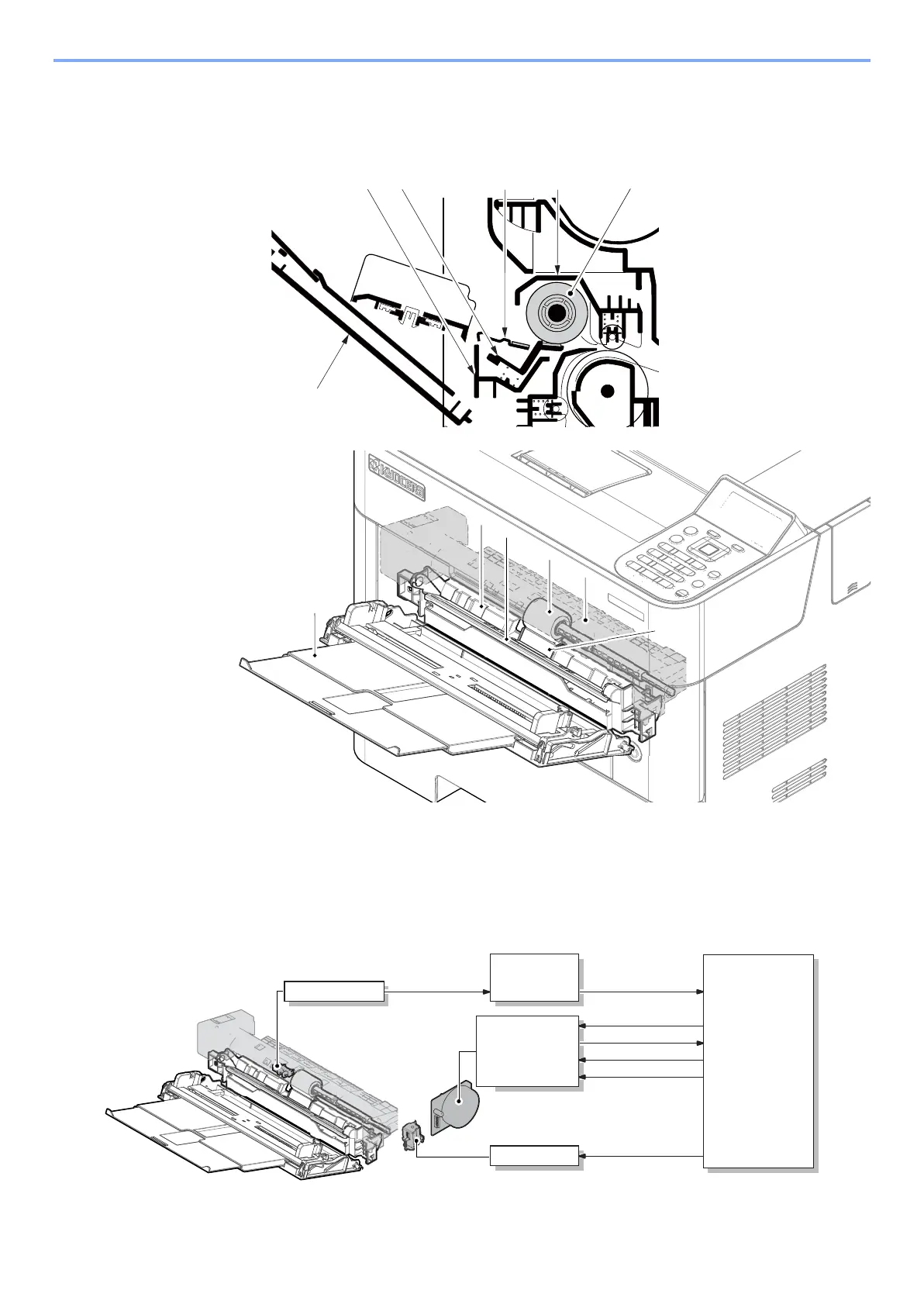

(1-2)MP tray paper feed section
The MP tray can contain 100 sheets. Feeding from the MP tray is performed by the rotation of the MP paper feed roller.
Also, function of the MP separation pad prevents paper from multiple feeding.
Block diagram
1 MP paper feed roller
2MP separation pad
3 MP bottom plate
4MP frame
5MP base
6 MP (Multi purpose)tray
1
3 4
6
52
2
3
5
1
6
4
YC4-1
YC4-2
YC4-3
YC4-4
YC8-2
MMOTCW
MMOTRDYN
MMOTCLKN
MMOTONN
MPFSOLN
6
5
4
3
MP solenoid
Engine PWB
YC2-12
YC8-3
Relay-L PWB
MPFSENS
MP paper sensor
MPFSENS
Main motor
