(2) Conveying section
The conveying section conveys paper to the transfer/separation section as paper feeding from the cassette or MP tray,
or as paper refeeding for duplex printing. Paper by feeding is conveyed by the paper feed roller to the position where the
registration sensor is turned on, and then sent to the transfer/separation section by the upper registration roller and
lower registration roller.

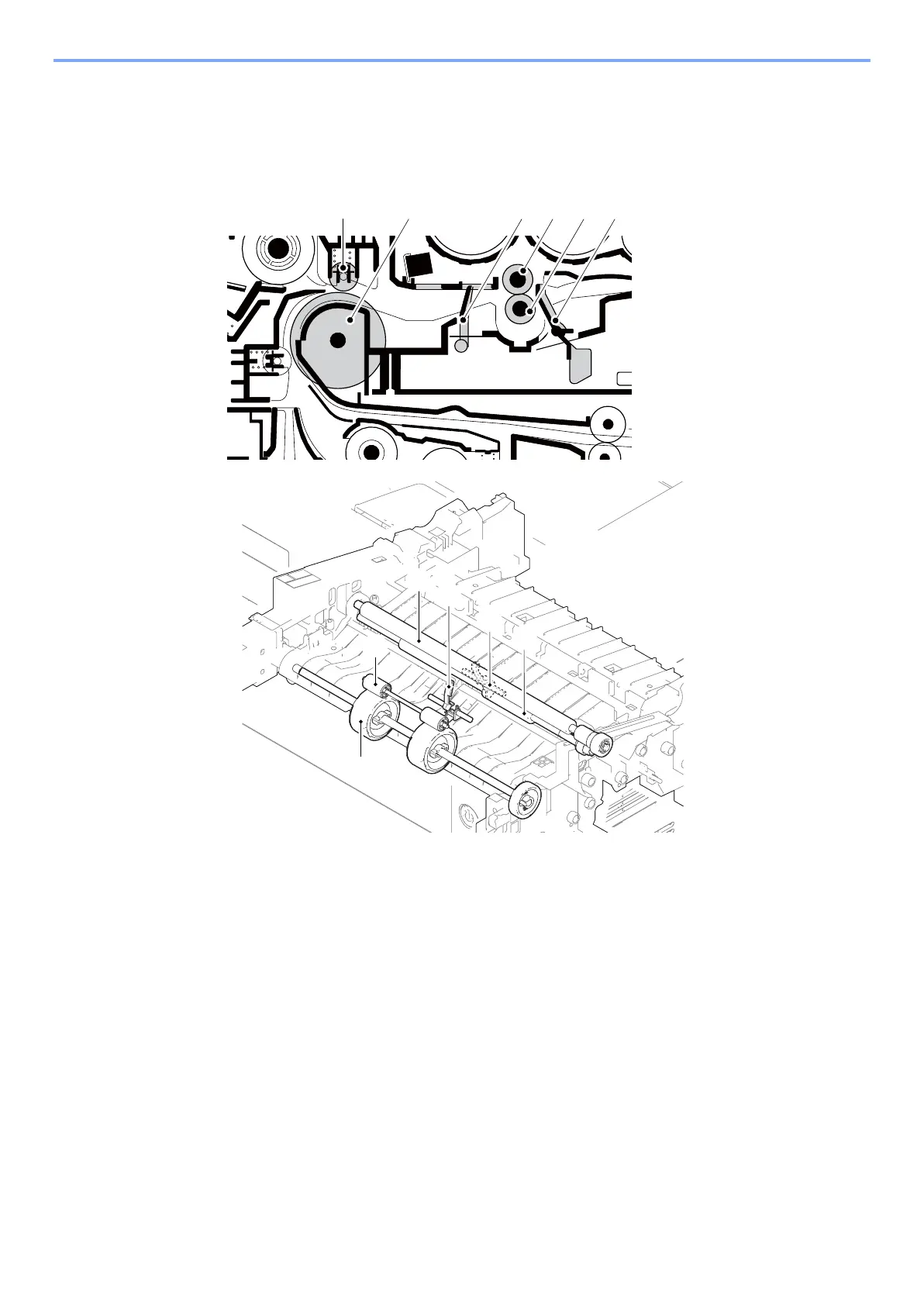

1 Middle feed roller
2 Feed DU pulley
3 Actuator
(Registration sensor 1) *1
4 Upper registration roller
5 Lower registration roller
6 Actuator
(Registration sensor 3) *2
1 4 5 6
2
3
