Machine Design ＞ Mechanical construction (option)
[CONFIDENTIAL]

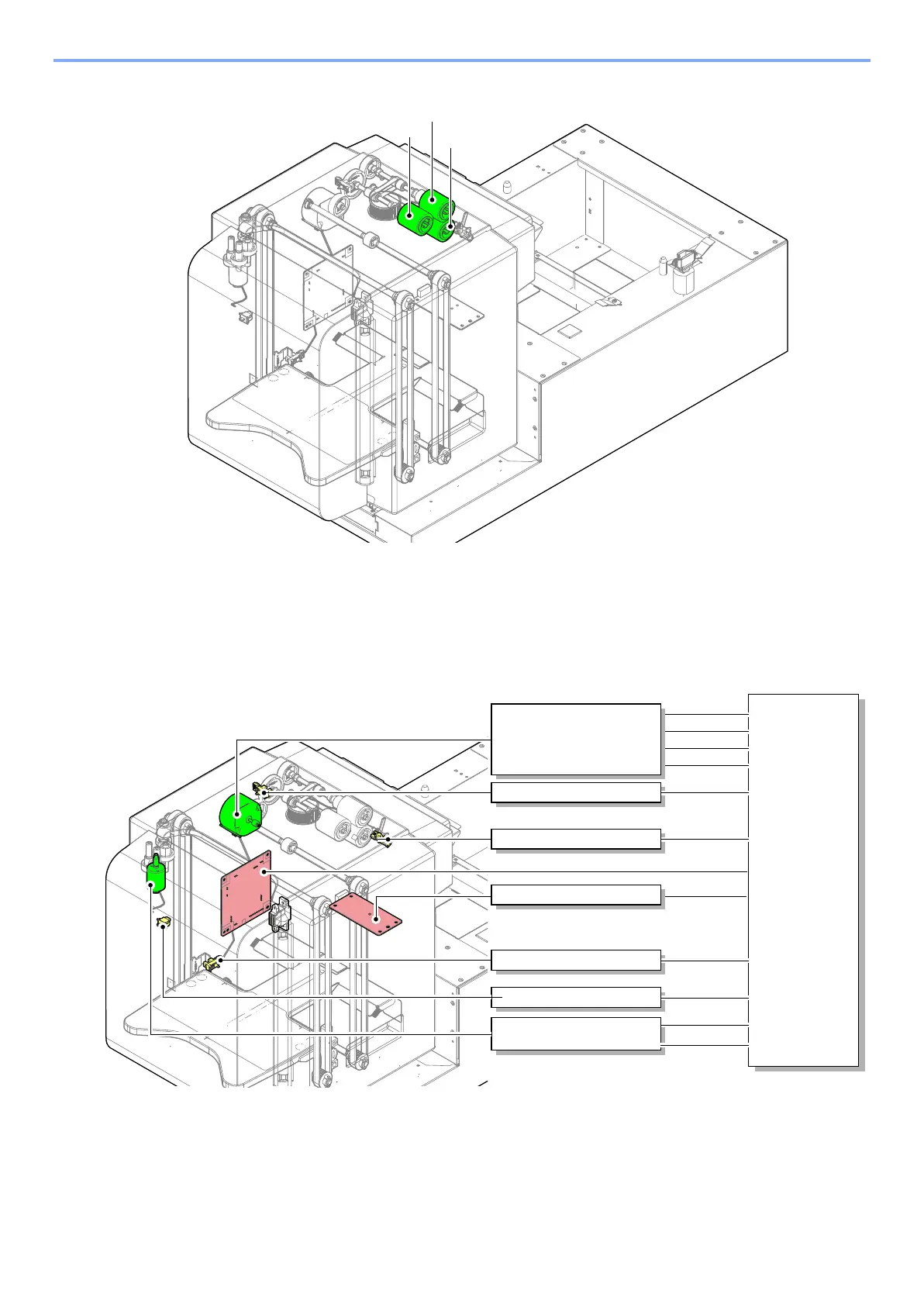

Block diagram
1 PF paper feed roller
2 PF pickup roller
3 PF retard roller
4 PF lift plate
5 PF friction pad
1
2
3
YC7-3
YC6-2
YC4-1
YC4-2
YC1
MOTOR1
MOTOR2
COVER
DOWNLIMIT
PF PWB
PF tray bottom position sensor
PF cover switch
PF lift motor
PF paper feed motor
UPLIMIT
YC3-1
YC3-2
YC3-3
YC3-4
YC5-3
YC2-3
BN
B
A
AN
PF tray top position sensor
FEEDN
PF paper feed sensor
PB PWB
