Utax P-4532DN - Page 127

4-29
Maintenance ＞ Assembly and disassembly
6

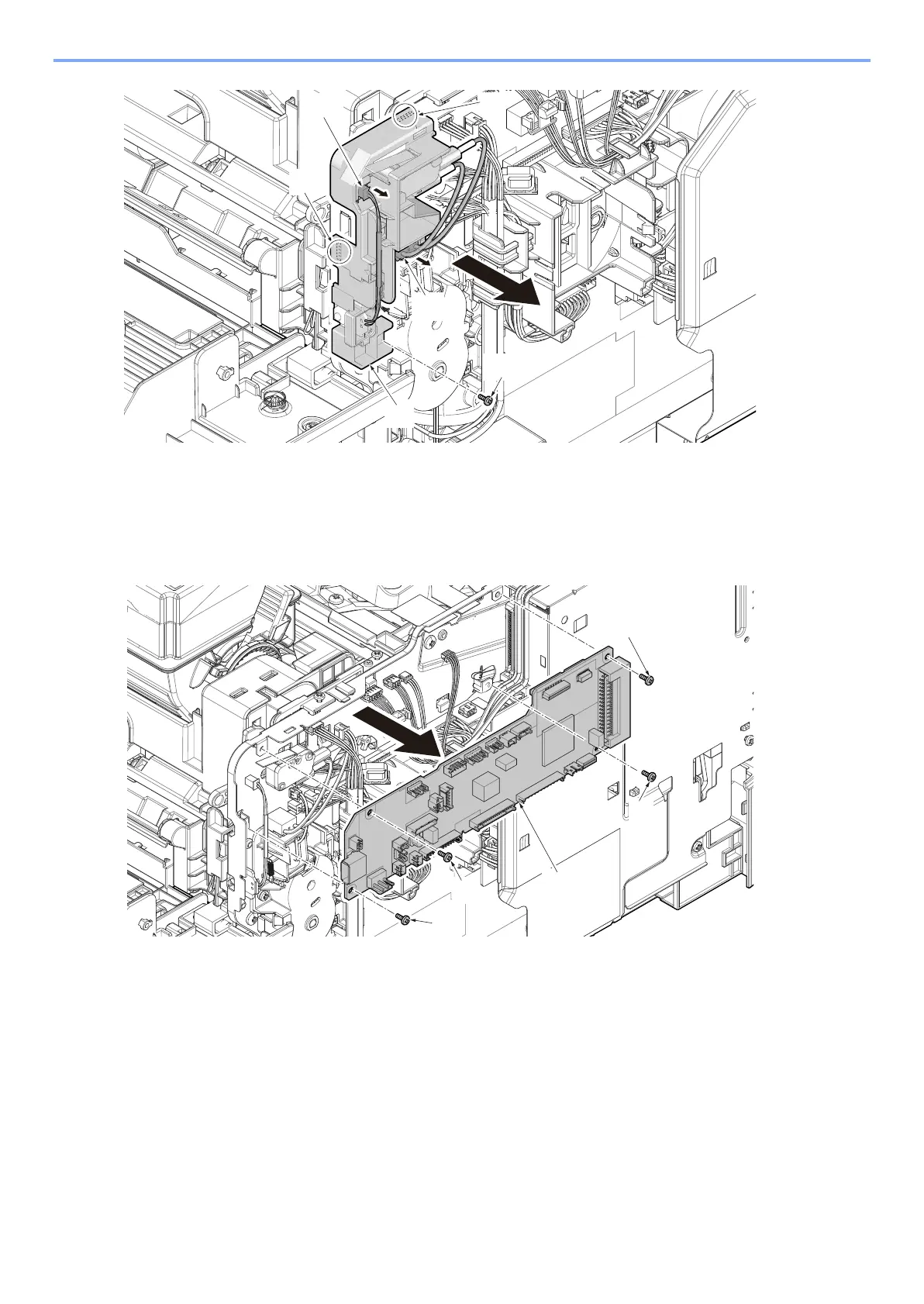

Detach the engine PWB.
1 Pull all connectors out from engine PWB (a).
2 Remove four screws (b) and then detach the engine PWB (a). (M3x8)
3 Check or replace the engine PWB and refit all the removed parts.
c
a
b
d
a
c
b
a
b
b
b
