Vacon 100 Applications Manual

K2 K3
K2
K3
M1
Motor 1 control from relay Motor 2 control from relay Motor 3 control from relay
NOT USED
Mains
M2 M3
Fig. 83: Selection 0
SELECTION 1, ENABLED

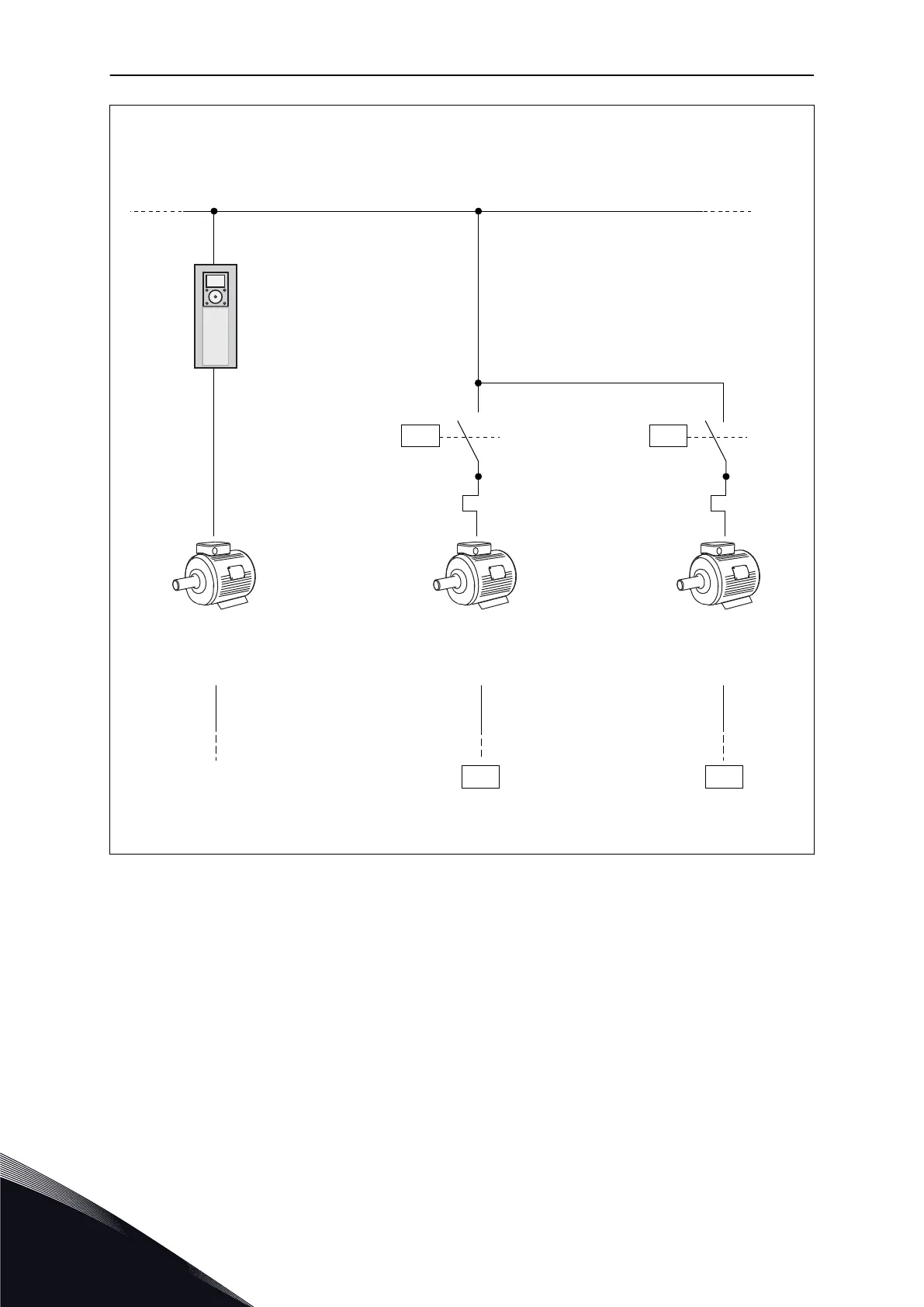

To include the regulating motor in the autochange or in the interlock logic, obey the
instructions in the figure below. 1 relay controls each motor. The contactor logic always
connects the first motor to the drive, and the next motors to the mains.
VACON · 302 PARAMETER DESCRIPTIONS
9
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205

Vacon 100 Specifications

General

Product type	AC Drive
Enclosure class	IP20
EMC filter	Built-in
Power	0.25 kW - 5.5 kW
Cooling method	Fan
Braking chopper	Optional
