Vari Lite VL3500 - Wheel Position Sensor PCB Assembly

HEAD ASSEMBLY : COLOR/EFFECT/STROBE MODULE
02.9686.0010 0 83
3

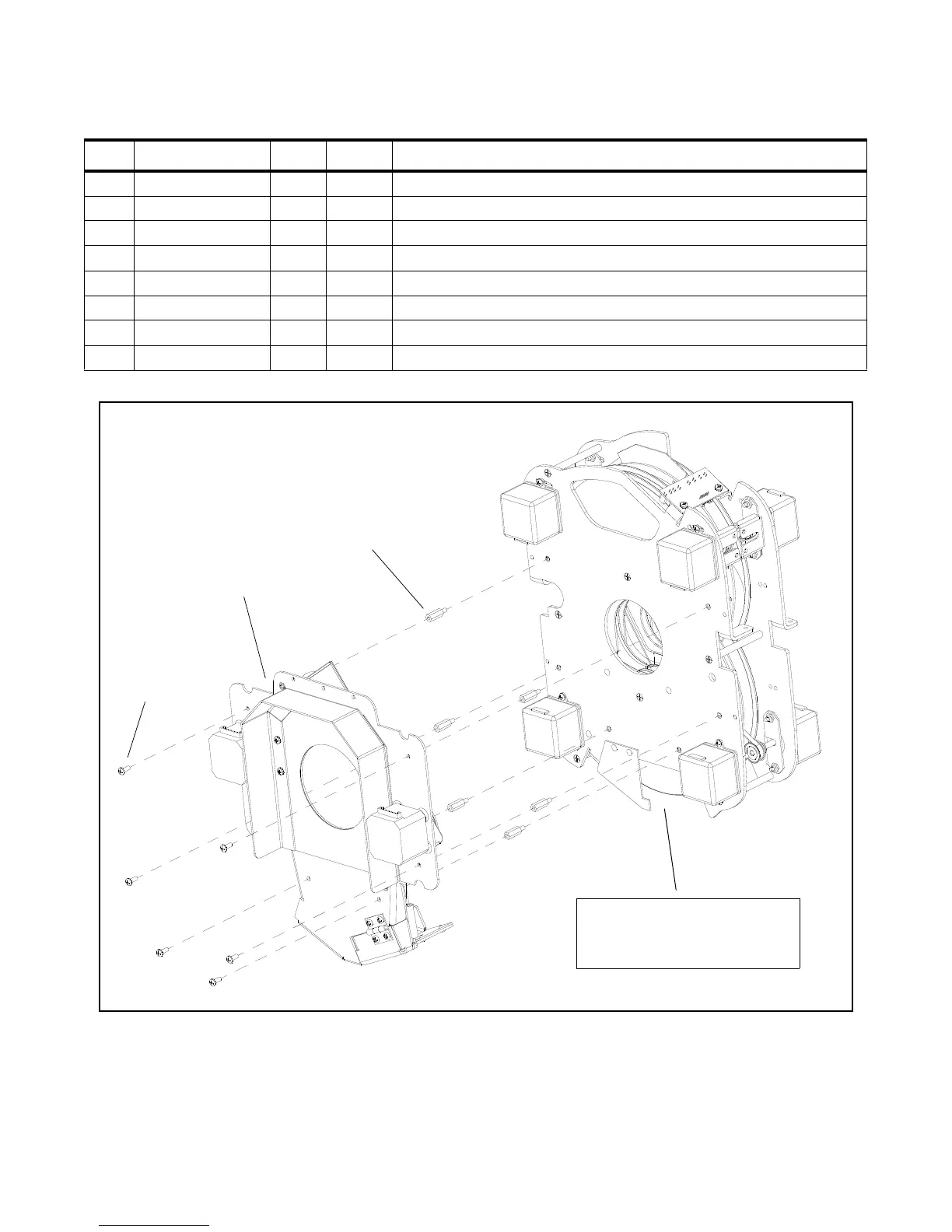

Figure 3-19: Color Effect and Strobe Module
32 10.9678.0246 6 EA ADJUST PLATE, MOTOR
33 25.9686.0205 1 EA CABLE ASSY, COLOR HARNESS (not shown)
34 10.9686.0442 1 EA BLOCKING PLATE, AIR, DIMMER
35 10.9686.0443 1 EA AIR DIVERTER, DIMMER
36 10.9686.0444 1 EA AIR DIVERTER, DIMMER, BELT SIDE
37 53.6530.006 6 EA RIVET, 1/8" OD POP, .188 - .250 LG
38 10.9686.2468 2 EA PULLEY, MOTOR, NO FLANGES, FOR CTO AND DIMMER WHEELS
39 10.9686.0447 1 EA MOTOR ADJUST PLATE, CABLE GUIDE
No. Item Qty. UM. Description
31 (x6)
11
26 (x6)
Color Effect Section; see
Figure 3-20 for the illustrated
parts breakdown.
