Vari Lite VL3500 - Internal-Lens Split Motor Cable Assembly

CABLE ASSEMBLIES : INTERNAL-LENS SPLIT MOTOR CABLE ASSEMBLY
02.9686.0010 0 135
3
Internal-Lens Split Motor Cable Assembly
25.9686.0206 Rev 0
Refer to Figure 3-60

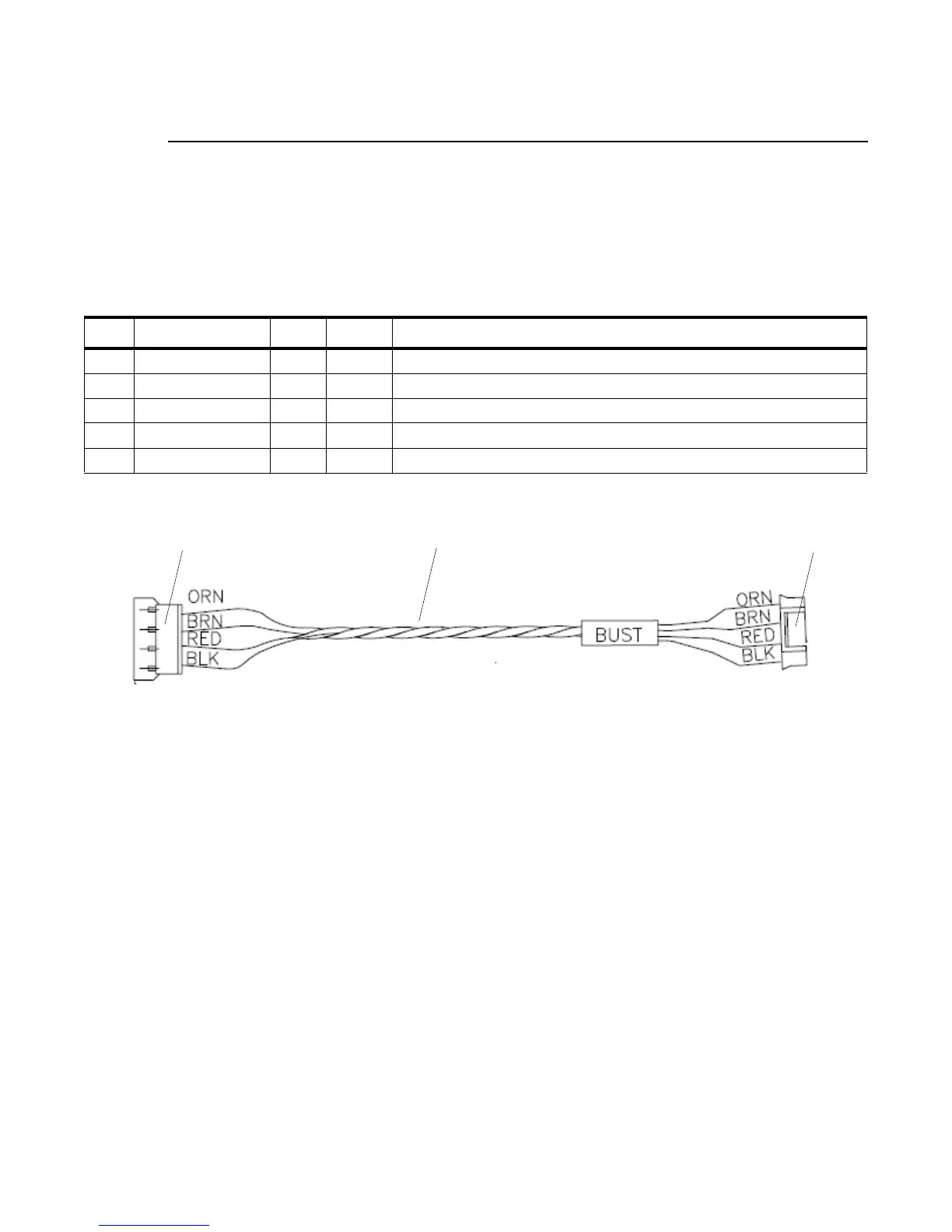

Figure 3-60: Internal-Lens Split Motor Cable Assembly
No. Item Qty. UM. Description
1 52.6467.0004 1 EA CONNECTOR, FEM PLUG 4 POS, 30-24 AWG
2 52.6467.0024 4 EA CONTACT, 24-30 AWG FEMALE CRIMP 2.00 MM PITCH
3 52.6696.0001 1 EA RECEPT, WIRE TO WIRE 4 POS, 2 MM PITCH 28-24 AWG
4 52.6694.0001 4 EA CRIMP, TERMINAL WIRE-TO-WIRE FEMALE 2 MM PITCH 28-24 AWG
5 73.2326.0123 0.7 FT WIRE, 26 AWG, 4 COND, 300V 200C TEF UL1180 (BLK-BRN-RED-ORN)
1
2 (x4)
5
3
4 (x4)
