Vari Lite VL3500 - Front Stippled Lens Assembly

VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
60 02.9686.0010 0
Front Stippled Lens Assembly
21.9686.0617 Rev B
Refer to Figure 3-2

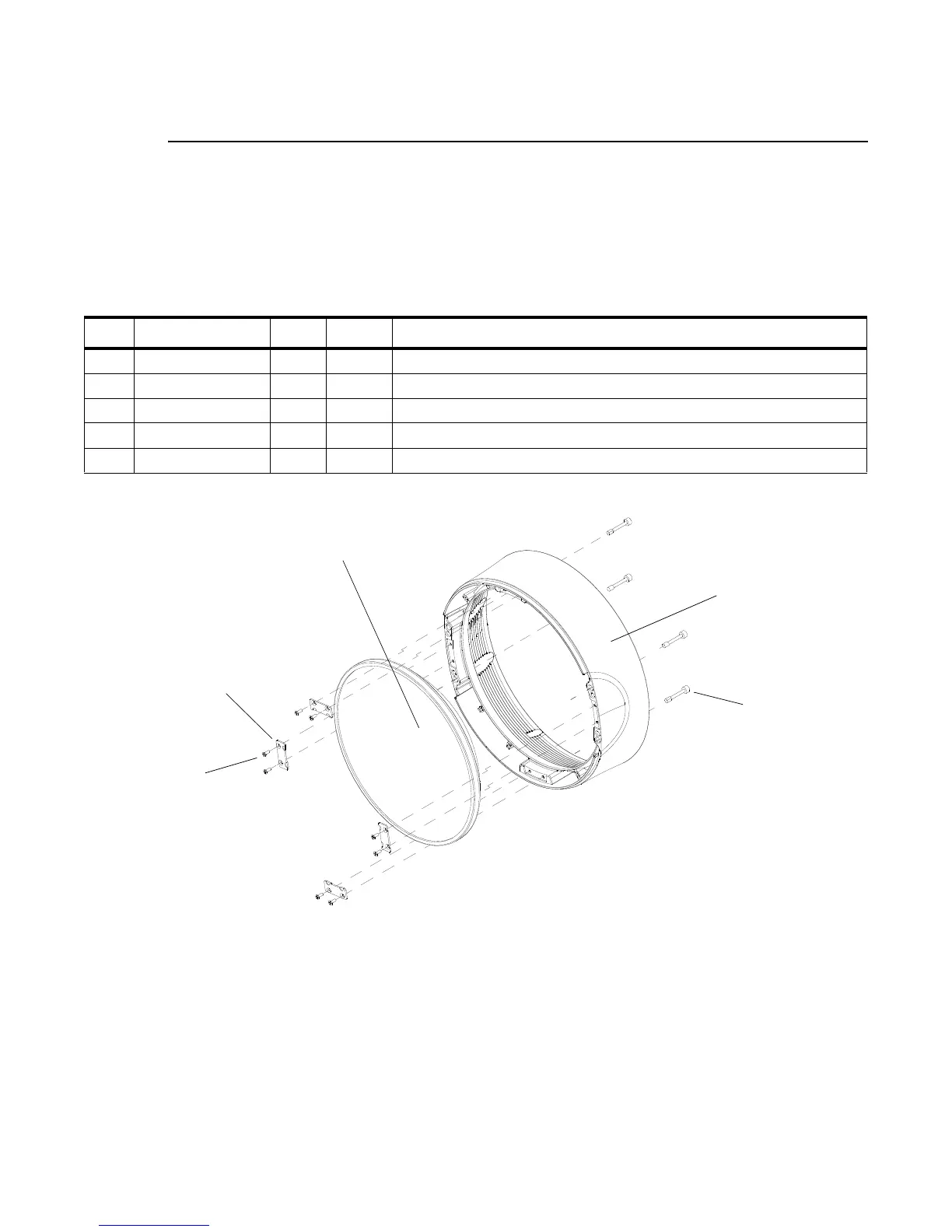

Figure 3-2: Front Stippled Lens Assembly
No. Item Qty. UM. Description
1 12.9686.0627 1 EA CASTING, CONVEX LENS
2 42.9686.0101 1 EA LENS, ASPHERIC PLANO CONVEX STIPPLED
3 10.9686.0641 4 EA CLIP, FRONT LENS
4 53.6685.1125 4 EA SCREW, CAPTIVE, SH CAP 10-32 1.125 LG BLK ZN
5 53.6598.0312 8 EA SCREW, 4-40 X 5/16" PFB
1
2
4 (x4)
5 (x8)
3 (x4)
