Vari Lite VL3500 - Head Cover Assembly

HEAD ASSEMBLY : HEAD COVER ASSEMBLY
02.9686.0010 0 63
3
Head Cover Assembly
21.9686.0611 Rev B
Refer to Figure 3-5

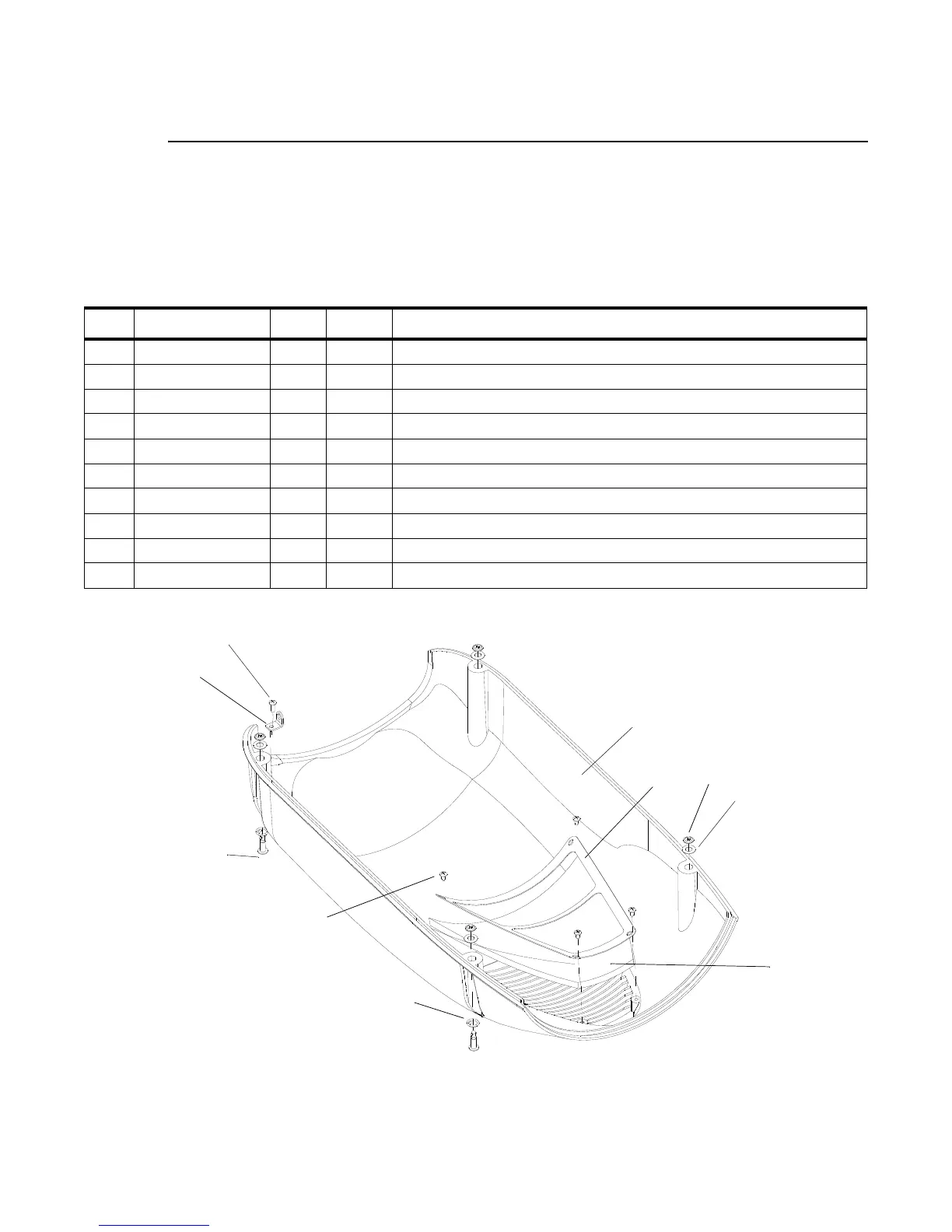

Figure 3-5: Head Cover Assembly
No. Item Qty. UM. Description
1 10.9678.0612 1 EA HEAD COVER FOAM BAFFLE
2 10.9678.0674 1 EA BRACKET, COVER TETHER
3 10.9678.0696 1 EA FOAM FRAME, HEAD COVER
4 10.9686.0610 1 EA HEAD COVER, VL3500 WASH
5 53.5606.0375 1 EA SCREW, 6-32 X 3/8, PPSS
6 53.6683.0015 4 EA SCREW, #6 X 1/4" PPZ PLASTIC
7 55.2233.0003 4 EA RETAINER, PUSH-ON TYPE
8 55.2233.0775 4 EA STUD, 1/4 TURN .775L STEEL BLK ZINC
9 10.9678.0649 4 EA EJECTOR SPRING, BLACK OXIDE
10 55.9676.0255 4 EA BELLEVILLE SPRING WASHER
1
4
3
5
10 (x4)
7 (x4)
8 (x4)
Bottom View
2
6 (x4)
9 (x4)
