Vari Lite VL3500 - Transfer Fans Cable Assembly

CABLE ASSEMBLIES : TRANSFER FANS CABLE ASSEMBLY
02.9686.0010 0 137
3
Transfer Fans Cable Assembly
25.9686.0209 Rev B
Refer to Figure 3-62

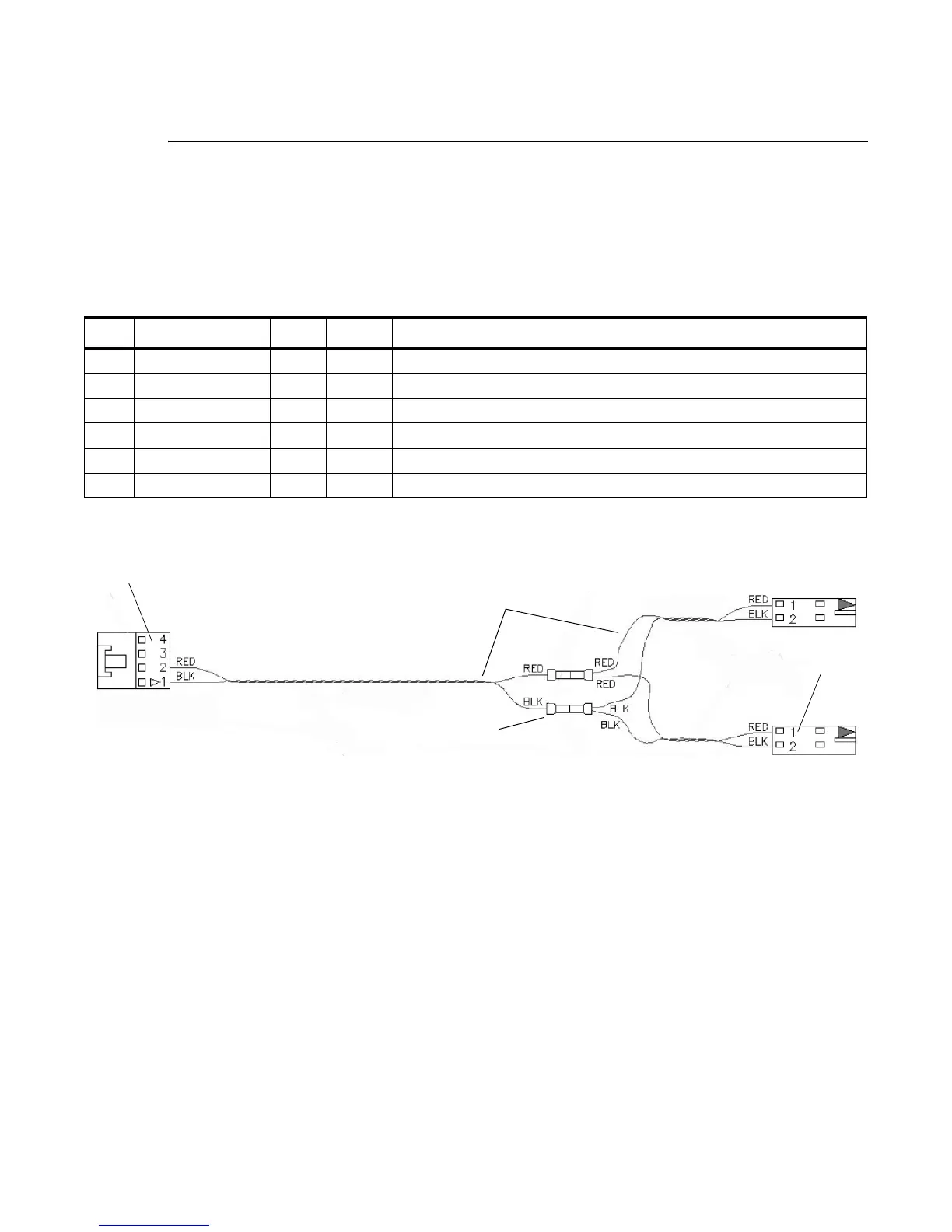

Figure 3-62: Transfer Fans Cable Assembly
No. Item Qty. UM. Description
1 52.6523.0004 1 EA CONN, HOUSING 4POS RECEPTACLE
2 52.6524.0002 2 EA CONN, HOUSING 2POS RECEPTACLE
3 52.8347.0001 4 EA CONTACT, 24-30AWG MALE CRIMP
4 52.8346.0001 4 EA CONTACT, 24-30AWG FEMALE CRIMP
5 73.2324.0200 2.21 FT WIRE, 26AWG 2COND 300V 200C <BLK-RED> UL1213
6 52.8274.0001 2 EA CONNECTOR, BUTT SPLICE, 22-18 AWG INSULATED
5
1
2 (x2)
4 (x4)
3 (x4)
6 (x2)
