Vari Lite VL3500 - Lamp Supply to Relay Cable Assembly

CABLE ASSEMBLIES : LAMP SUPPLY TO RELAY CABLE ASSEMBLY
02.9686.0010 0 155
3
Lamp Supply to Relay Cable Assembly
25.9678.0829 Rev A
Refer to Figure 3-79

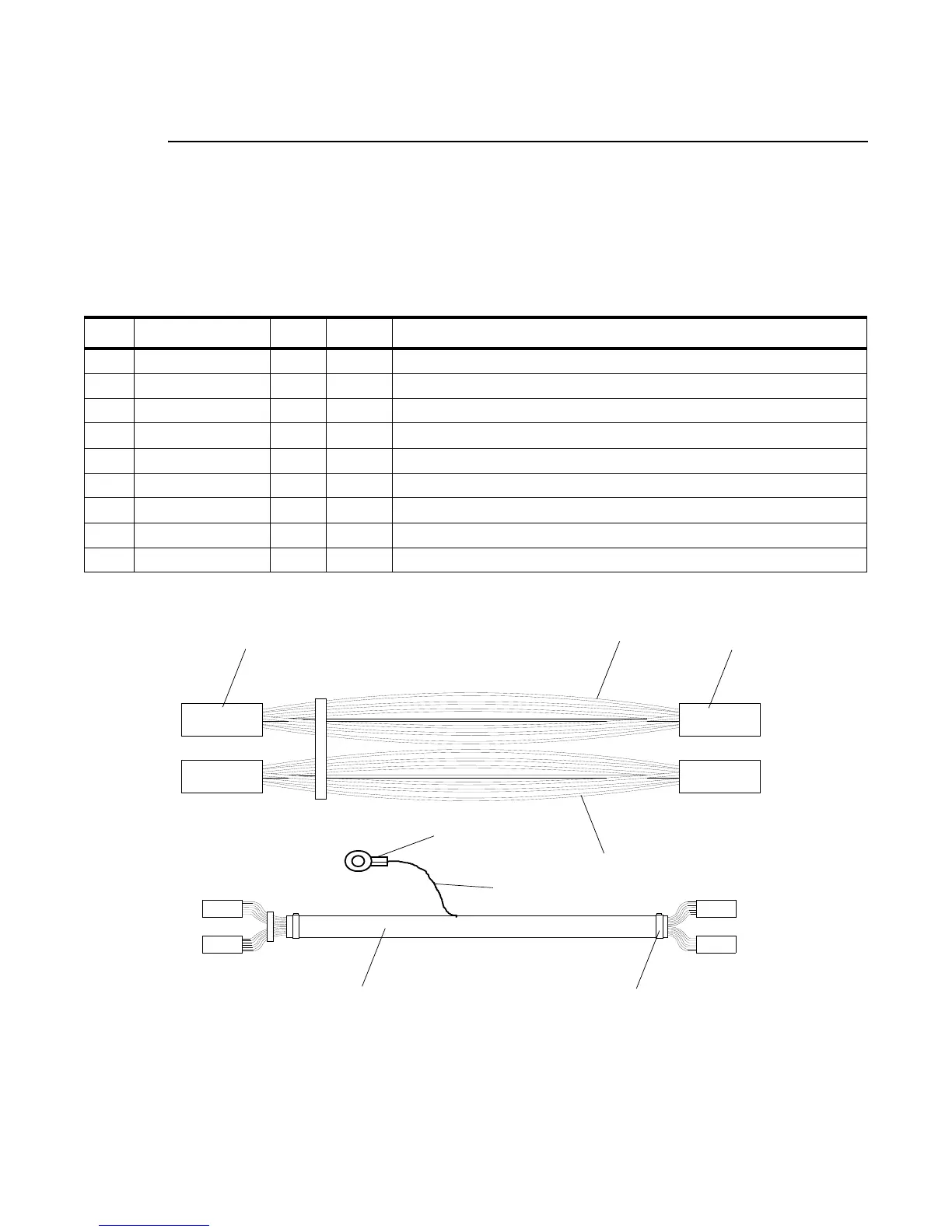

Figure 3-79: Lamp Supply to Relay Cable Assembly
No. Item Qty. UM. Description
1 52.8312.0001 4 EA RECP, FASTON 1/4" 18-14 AWG INSULATED VO
2 55.2186.0001 3 EA CABLE TIE, .10"WD 4.00"LG SMALL
3 55.6699.0003 3.19 FT SLEEVING, 1/2" NOM. DIA POLY EXP BRAIDED
4 73.7089.0000 34.41 FT WIRE, 22AWG BLK 300V TEFLON STRANDED
5 73.7089.0009 34.41 FT WIRE, 22AWG WHT 300V TEFLON STRANDED
6 73.3516.0504 .58 FT WIRE, 16 AWG 300V 105C PVC GRN/YEL UL1569
7 52.8245.0001 1 EA TERM, RING, #10 16-14 AWG REEL PIDG
8 73.7130.0005 2.08 FT WIRE, TUBULAR BRAID, 7/16" (
NOT SHOWN)
9 55.2183.0001 .33 FT HEATSHRINK 1/2" BLACK (NOT SHOWN)
2 (x3)
3
1 (x2)
5 (x7)
1 (x2)
4 (x7)
To Relay
From Lamp Supply
6
7
