Vari Lite VL3500 - Yoke Fan and Relay Cable Assembly

CABLE ASSEMBLIES : YOKE FAN AND RELAY CABLE ASSEMBLY
02.9686.0010 0 139
3
Yoke Fan and Relay Cable Assembly
25.9678.0681 Rev C
Refer to Figure 3-64

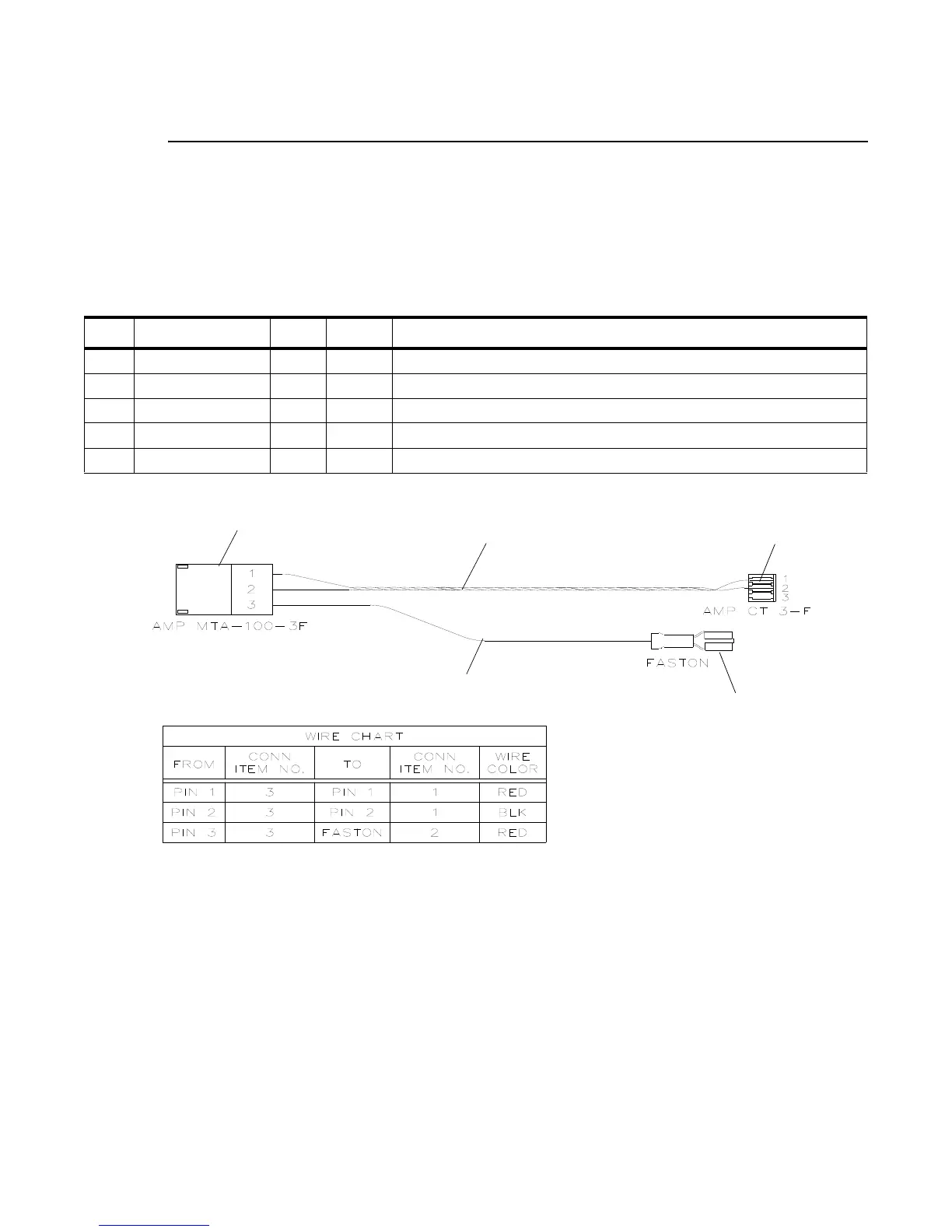

Figure 3-64: Yoke Fan and Relay Cable Assembly
No. Item Qty. UM. Description
1 52.6423.0003 1 EA HOUSING, 3 POS MT RECEPT, 2MM
2 52.8230.0003 1 EA RECEPT, 1/4" FASTON 22-18AWG
3 52.6396.3103 1 EA RECEPT, 3 POS MTA100 W/ POL TAB BLU CLSD END
4 73.3526.0002 1.25 FT WIRE, 26AWG 300V 105C PVC RED
5 73.5126.0002 1.50 FT WIRE, 26AWG 2 COND 300V 80C <RED-BLK>
1
3
5
4
2
