Vari Lite VL3500 - Display Cable Assembly

CABLE ASSEMBLIES : DISPLAY CABLE ASSEMBLY
02.9686.0010 0 151
3
Display Cable Assembly
25.9678.1825 Rev C
Refer to Figure 3-75

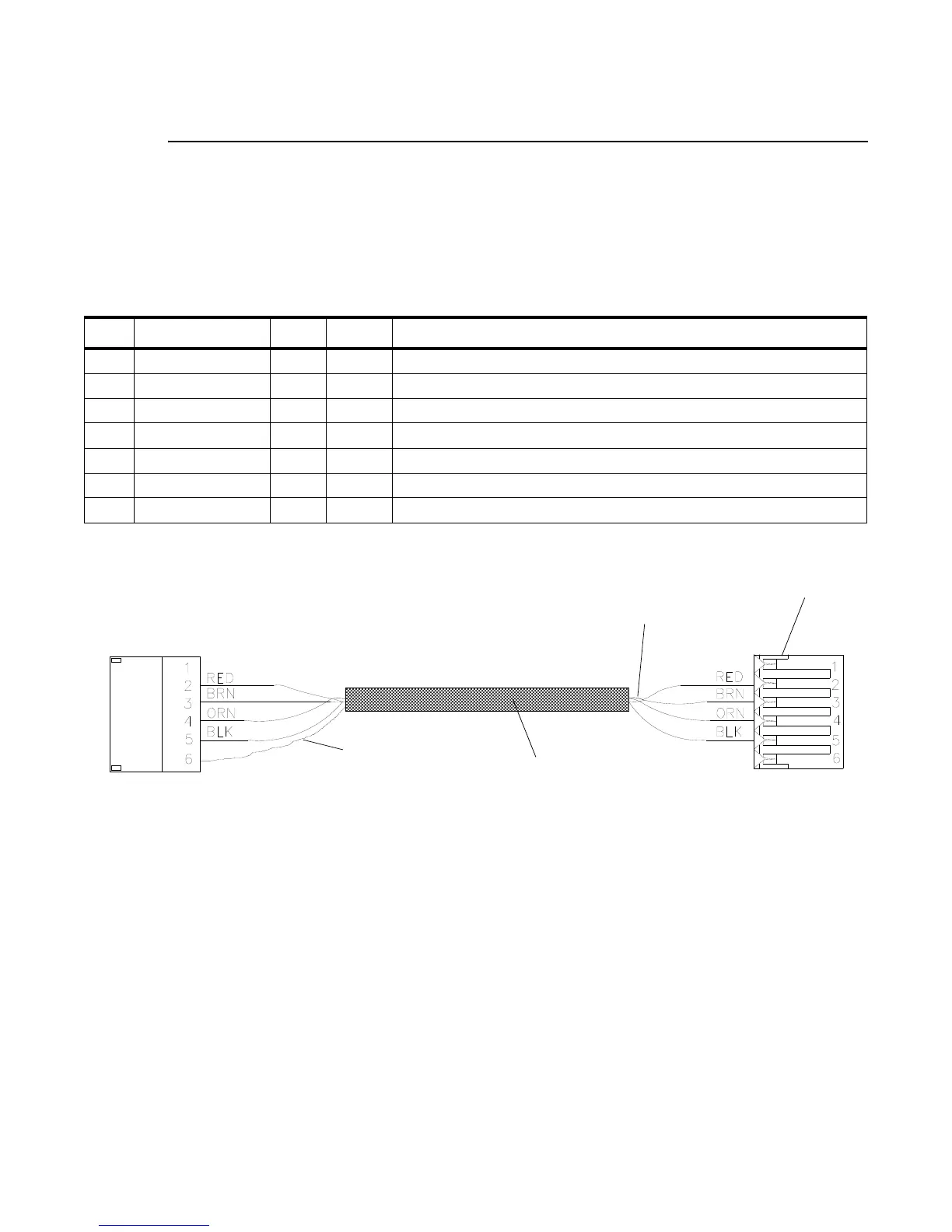

Figure 3-75: Display Cable Assembly
No. Item Qty. UM. Description
1 52.6396.2406 2 EA RECEPT, 6 POS MTA100 W/POL TAB WHT CLSD END
2 73.5116.0123 1.02 FT WIRE, 24AWG 4COND TW <BLK-BRN-RED-ORN>
3 55.2186.0001 4 EA CABLE TIE, .10" WD 4" LG SMALL (NOT SHOWN)
4 73.7130.0004 .958 FT WIRE, TUBULAR BRAID, 1/8" X 23" LG (NOT SHOWN)
5 73.6224.0005 .208 FT WIRE, 24AWG 600V 200C TFE GRN 2.5" LG
6 55.6699.0009 .208 FT SLEEVING, 3/8" NOM DIA POLY EXP
7 55.6621.0001 1 EA SLEEVE, NYLON THIN WALL #6 SCR 1.0" LG
(NOT SHOWN)
GRN
6
1 (x2)
2
5
