VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
62 02.9686.0010 0
Front Fresnel Lens Assembly
21.9686.0619 Rev D
Refer to Figure 3-4

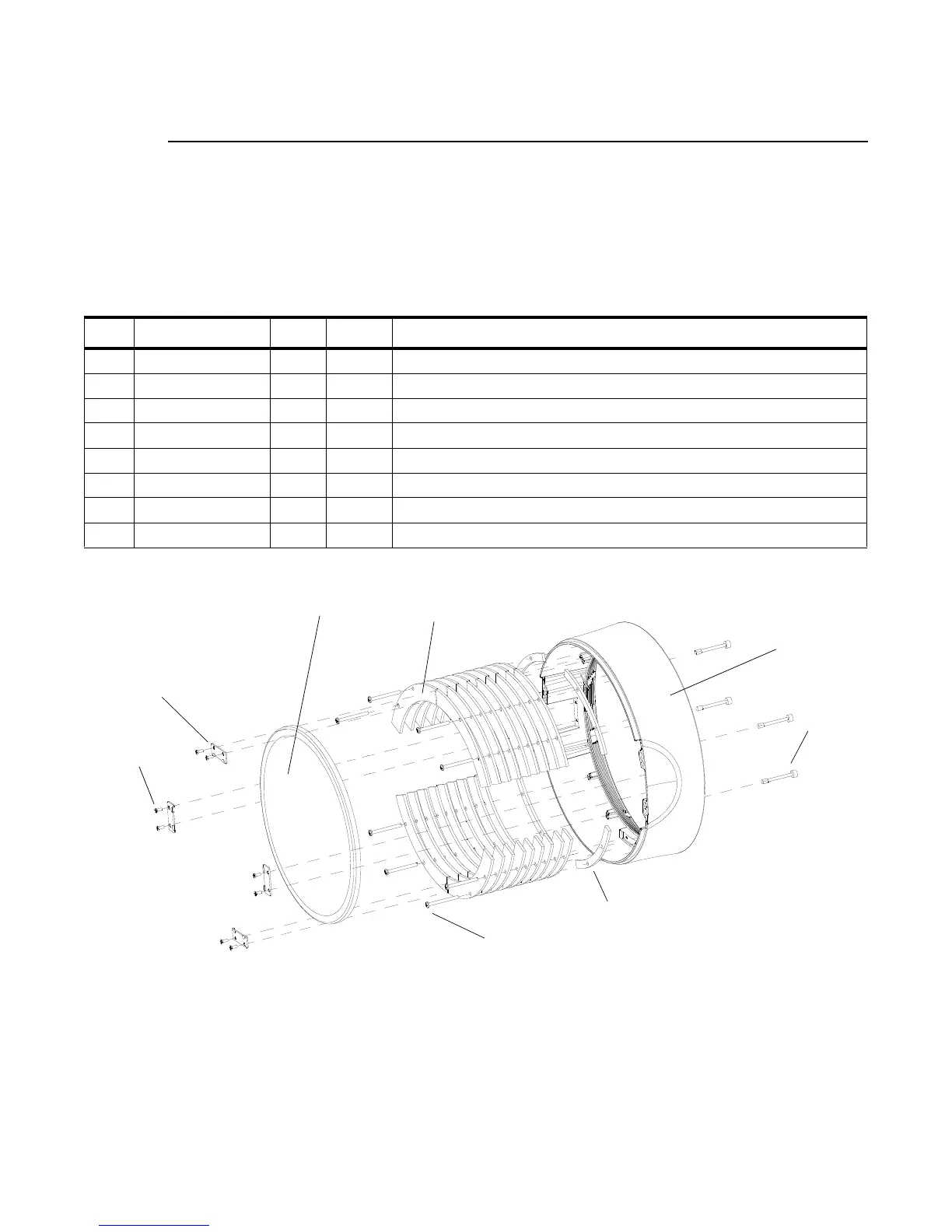

Figure 3-4: Front Fresnel Lens Assembly
No. Item Qty. UM. Description
1 12.9686.0629 1 EA CASTING, MACHINED, FRESNEL LENS
2 42.9686.0102 1 EA LENS, FRESNEL 230 MM DIA
3 10.9686.0641 4 EA CLIP, FRONT LENS
4 53.6685.1500 4 EA SCREW, CAPTIVE, SH CAP 10-32 1.5 LG BLK ZN
5 53.6598.0312 8 EA SCREW, 4-40 X 5/16" PFB
6 10.9686.0682 4 EA COUNTERWEIGHT, FRONT, SHORT, THIN
7 10.9686.0638 36 EA COUNTERWEIGHT, FRONT, LONG
8 53.6618.0001 8 EA SCREW, 6-32 X 1.5 PPZ
1
2
4 (x4)
5 (x8)
3 (x4)
6 (x4)
7 (x36)
8 (x8)
