Vari Lite VL3500 - Front Lens Assembly Removal (Continued)

MAINTENANCE PROCEDURES : FRONT LENS ASSEMBLY REMOVAL (CONTINUED)
02.9686.0010 0 23
2
Front Lens Assembly Removal (continued)

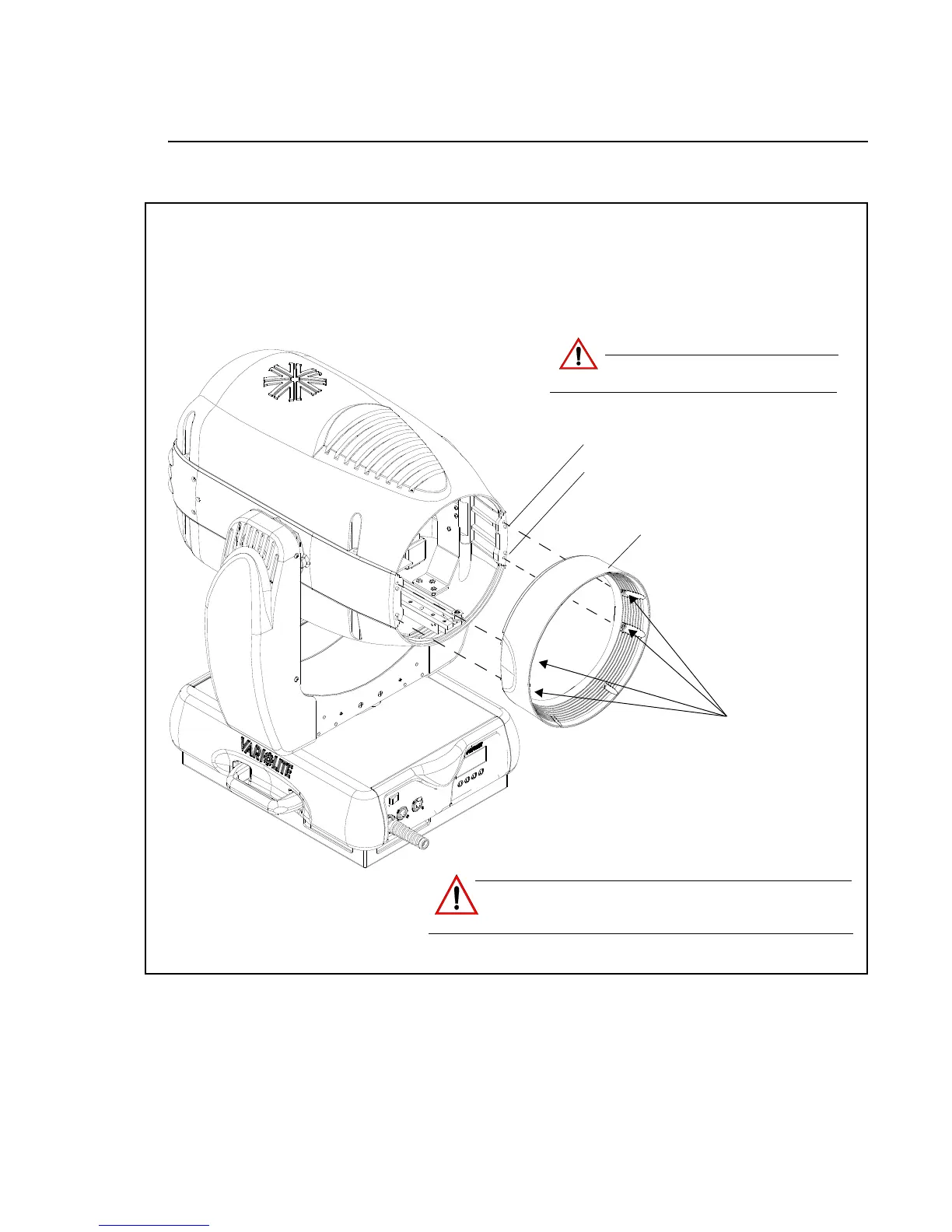

Figure 2-4: Front Lens Assembly Removal
Front Lens Assembly
Captive Screws
Front Lens Assembly Mounting Holes
Front Lens Assembly Guide Pins
CAUTION:
Clean any fingerprints on lenses with
isopropyl alcohol and a lint-free cloth.
CAUTION
Lens is heavy. Horizontal orientation shown for clarity. If lens is
removed as shown, head assembly will instantaneously rotate to
face upwards. See Caution on
page 22.
