VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
138 02.9686.0010 0
Upper Enclosure Fans Cable Assembly
25.9686.0210 Rev B
Refer to Figure 3-63

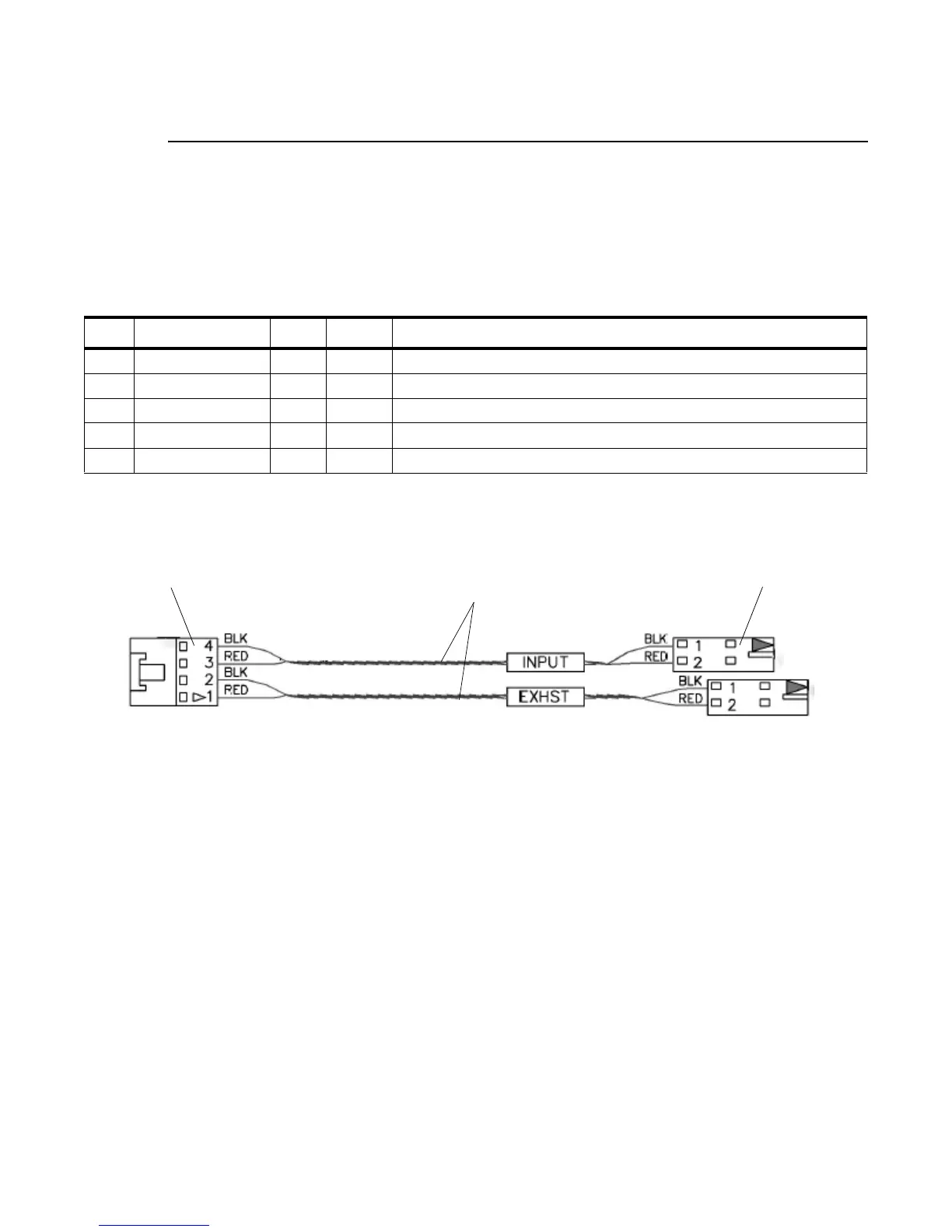

Figure 3-63: Upper Enclosure Fans Cable Assembly
No. Item Qty. UM. Description
1 52.6523.0004 1 EA CONN, HOUSING 4POS RECEPTACLE
2 52.6524.0002 2 EA CONN, HOUSING 2POS RECEPTACLE
3 52.8347.0001 4 EA CONTACT, 24-30AWG MALE CRIMP
4 52.8346.0001 4 EA CONTACT, 24-30AWG FEMALE CRIMP
5 73.5126.0002 2.67 FT WIRE, 26AWG 2COND 300V 80C <BLK-RED>
5
1
2 (x2)
4 (x4)
3 (x4)
