Vari Lite VL3500 - Yoke to Dual AC Fan Cable Assembly

VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
128 02.9686.0010 0
Yoke to Dual AC Fan Cable Assembly
25.9686.0012 Rev A
Refer to Figure 3-53

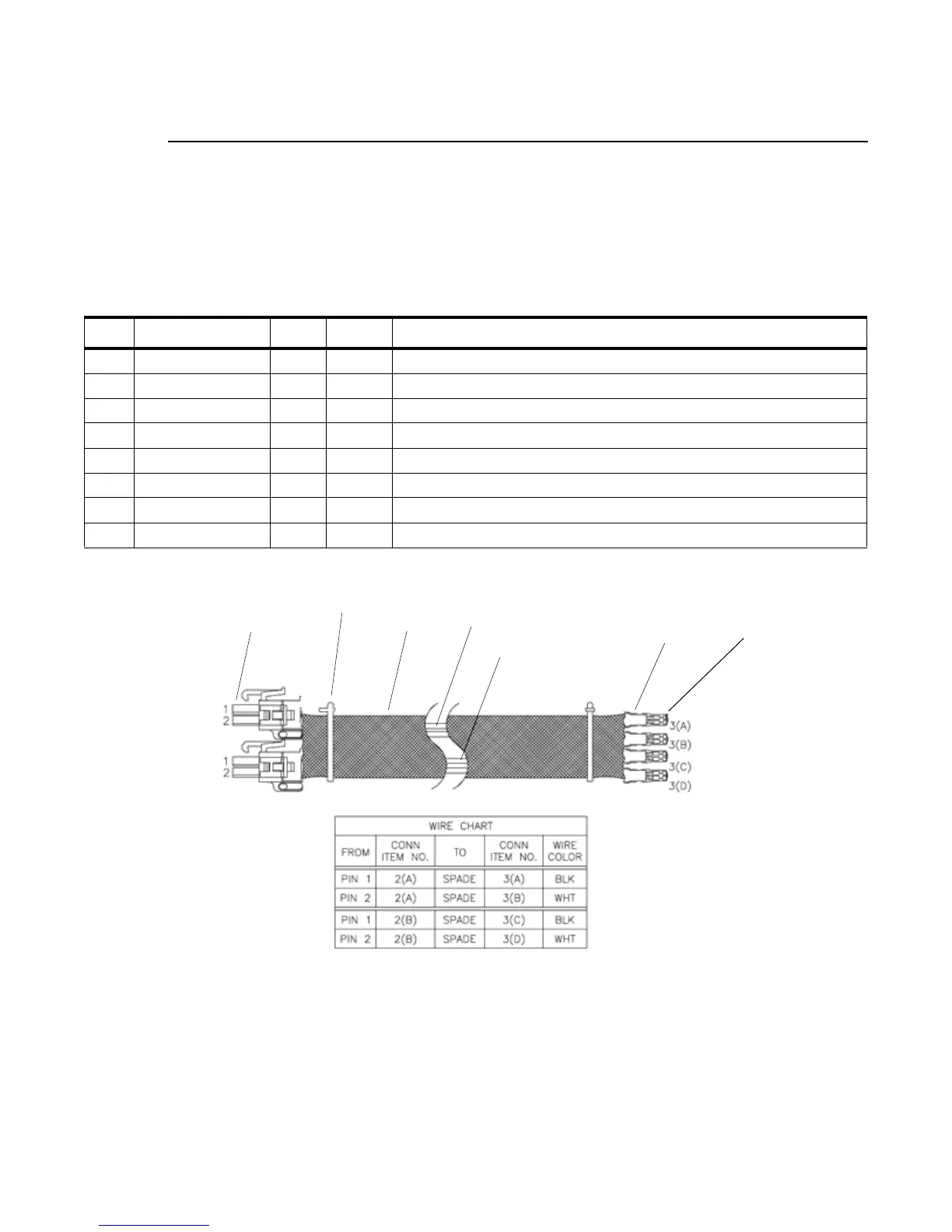

Figure 3-53: Yoke to Dual AC Fan Cable Assembly
No. Item Qty. UM. Description
1 52.6665.0001 4 EA CONTACT, 22-26AWG MALE MATE-N-LOK 2
2 52.6665.0002 2 EA CONN, HOUSING 2 POS PLUG MATE-N-LOC 2
3 52.8413.0001 4 EA RECEPT, FASTON .110 SERIES 22-18AWG INSULATED
4 55.2186.0002 2 EA CABLE TIE, .09"WD 3.750"LG TEFZEL
5 55.2260.0208 2.75 FT SLEEVING, FIBERGLASS 0.208 ID
6 55.2200.0003 0.50 FT HEATSHRINK, TEFLON NATURAL COLOR
7 73.6222.0009 6.33 FT WIRE, 22AWG 600V 200C TFE WHT UL1199 19STRAND
8 73.6222.0010 6.33 FT WIRE, 22AWG 600V 200C TFE BLK UL1199
1, 2 (x2)
3 (x4)
4 (x2)
5
6
7
8
2 (A)
2 (B)
