ENCLOSURE ASSEMBLY : EXHAUST FAN ASSEMBLY
02.9686.0010 0 113
3
Exhaust Fan Assembly
21.9686.0811 Rev B
Refer to Figure 3-40

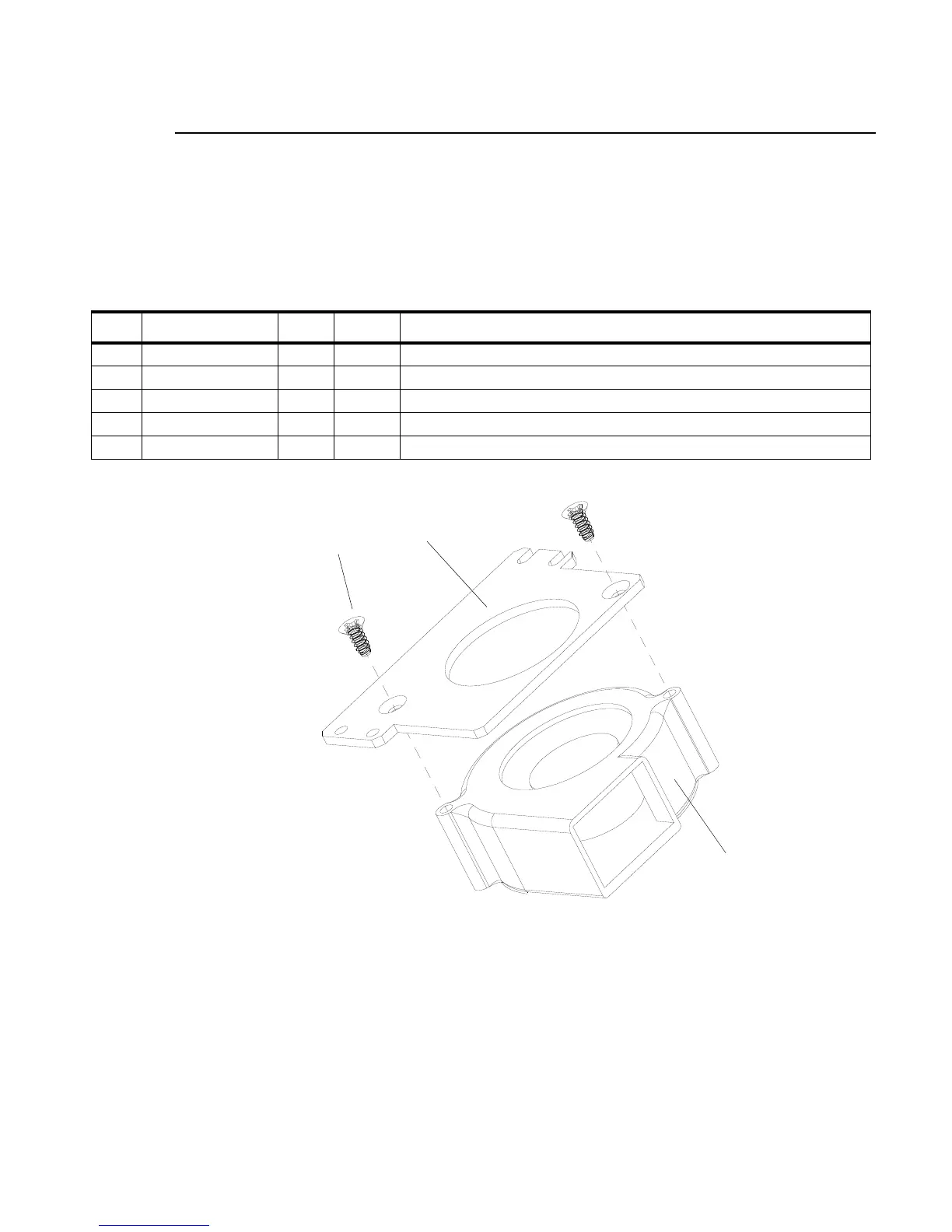

Figure 3-40: Exhaust Fan Assembly
No. Item Qty. UM. Description
1 40.7140.0001 1 EA BLOWER, CENTRIFUGAL, 24VDC 9CFM 3" X 3"
2 10.9686.0810 1 EA MOUNTING PLATE, EXHAUST FAN
3 55.6576.0001 2 EA SCREW, #10-16 X 3/8 TYPE B PFZ
4 52.6523.0002 1 EA CONN, HOUSING, 2 POS PLUG SHROUDED (
NOT SHOWN)
5 52.8347.0001 2 EA CONTACT, 24-30 AWG MALE CRIMP (
NOT SHOWN)
