VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
68 02.9686.0010 0
Reflector Mount Assembly
21.9686.0605 Rev C
Refer to Figure 3-9

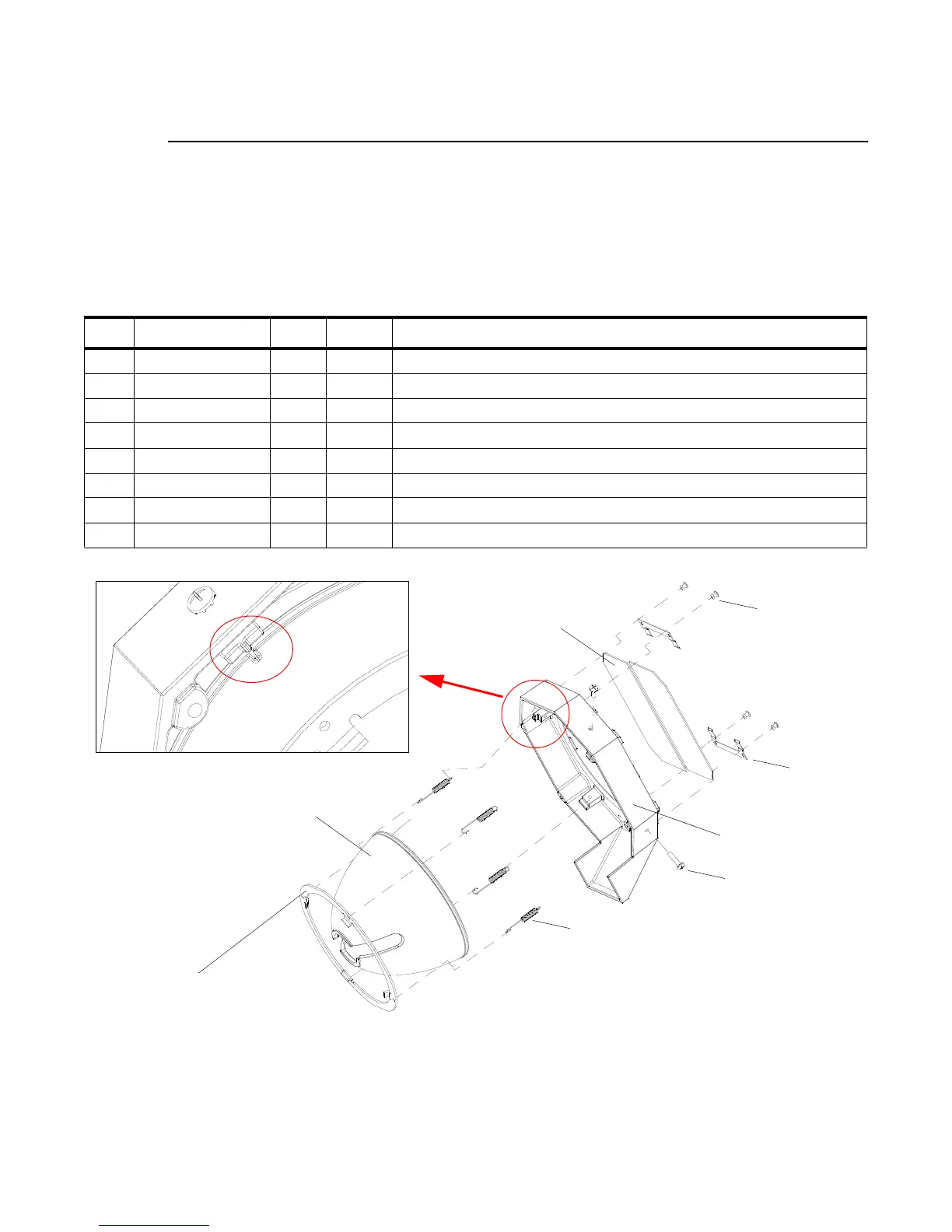

Figure 3-9: Reflector Mount Assembly
No. Item Qty. UM. Description
1 10.9686.0632 1 EA REFLECTOR CLAMP
2 10.9686.0633 2 EA CLIP, UV REFLECTOR
3 12.9686.0631 1 EA REFLECTOR MOUNT, MACHINED CASTING
4 42.9686.0105 2 EA UV/IR BLOCKING FILTER
5 42.9686.0120 1 EA REFLECTOR, ELIPTICAL
6 53.6530.0002 4 EA RIVET, 1/8 OD POP, .063-.125 GRIP, ALUM
7 53.6683.0015 4 EA SCREW, 6-32 X 5/8, PPB, SEMS
8 10.9686.0644 4 EA SPRING, REFLECTOR MOUNT
1
3
2 (x2)
Note: Install filter with marks
indicating IR coating side of the
glass facing up and located
outside of circular cutout in
reflector mount (Item 2).
4 (x2)
5
6 (x4)
7 (x4)
8 (x4)
Align tabs on reflector and top-left support
