Vari Lite VL3500 - Tilt Harness Cable Assembly

VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
132 02.9686.0010 0
Tilt Harness Cable Assembly
25.9686.0203 Rev G
Refer to Figure 3-61

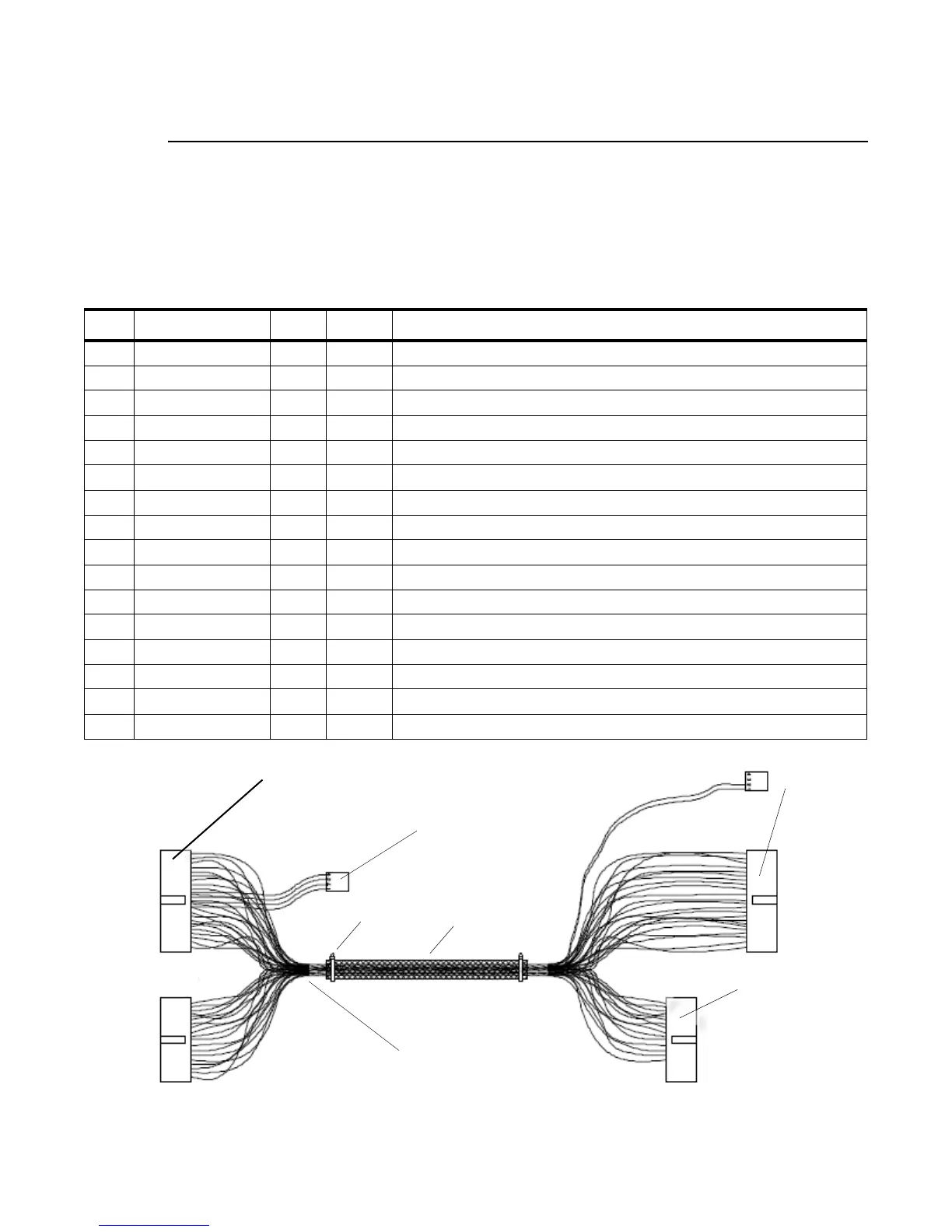

Figure 3-57: Tilt Harness Cable Assembly
No. Item Qty. UM. Description
1 52.6610.0040 2 EA CONNECTOR, HOUSING 40 POS, 26-22 AWG DBL ROW UNLOADED
2 52.6224.1040 2 EA COVER, FRONT 40 POS MT LATCHING
3 52.6224.2040 2 EA COVER, BACK 40 POS MT
4 52.6610.0034 1 EA CONNECTOR, HOUSING 34 POS, 26-22 AWG DBL ROW UNLOADED
5 52.6224.1034 1 EA COVER, FRONT 34 POS MT LATCHING
6 52.6224.2034 1 EA COVER, BACK 34 POS MT
7 52.6610.0017 1 EA CONNECTOR, HOUSING 50 POS, 26-22 AWG DBL ROW UNLOADED
8 52.6224.1050 1 EA COVER, FRONT 50 POS MT LATCHING
9 52.6224.2050 1 EA COVER, BACK 50 POS MT
10 52.8351.0004 110 EA CONTACT, 26-22 AWG RECP MTE
11 52.6524.0004 2 EA CONNECTOR, HOUSING 4 POS RECEPTACLE 30-24 AWG
12 52.8346.0001 6 EA CONTACT, 24-30 AWG FEMALE CRIMP
13 73.5116.0123 25.8 FT WIRE, 24 AWG, 4 COND TW, 300V 80C (BLK-BRN-RED-ORN)
14 73.5126.0002 1.9 FT WIRE, 26 AWG, 2 COND TW, 300V 80C (BLK-RED)
15 55.2186.0001 2 EA CABLE TIE, .10 X 4" SMALL
16 55.6699.0011 1.13 FT SLEEVING, 3/4" NOM. DIA WOVEN POLY, ROUNDIT 200D
4
5
15
6
11 (x2)
13, 14
10 (x110)
1 (x2)
2 (x2)
3 (x2)
10 (x110)
7
8
9
10 (x110)
12 (x6)
16
