VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
80 02.9686.0010 0
Fresnel Internal Lenses
21.9686.0620 Rev A
Refer to Figure 3-17

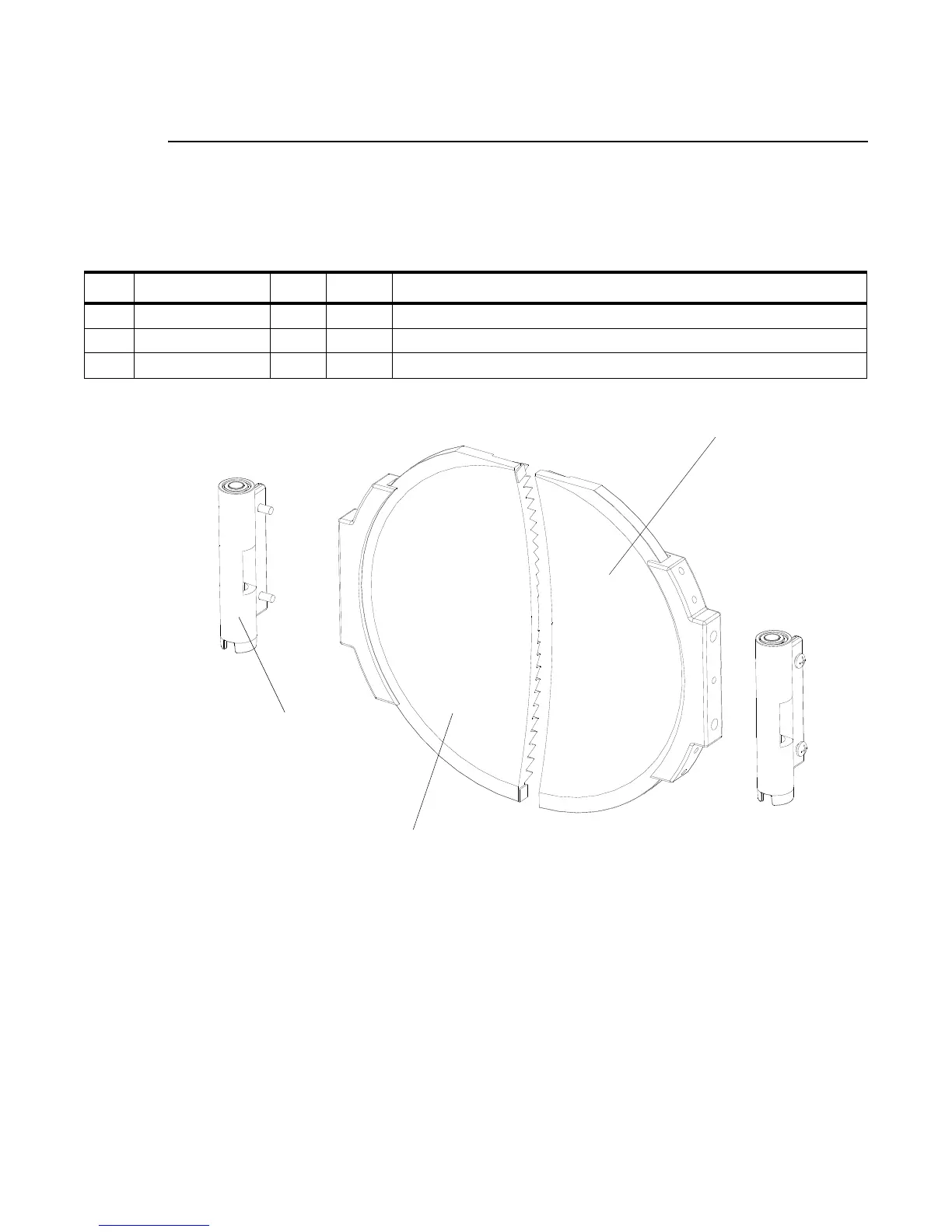

Figure 3-17: Fresnel Internal Lenses
No. Item Qty. UM. Description
1 21.9686.3103 1 EA LENS, ZOOM, FRESNEL, LEFT
2 21.9686.3104 1 EA LENS, ZOOM, FRESNEL, RIGHT
3 21.9686.3105 2 EA KIT, SPLIT LENS MOUNTING
2
1
3 (x2)
