Vari Lite VL3500 - Pan Pulley Assembly

ENCLOSURE ASSEMBLY : PAN PULLEY ASSEMBLY
02.9686.0010 0 117
3
Pan Pulley Assembly
21.9686.0807 Rev B
Refer to Figure 3-44

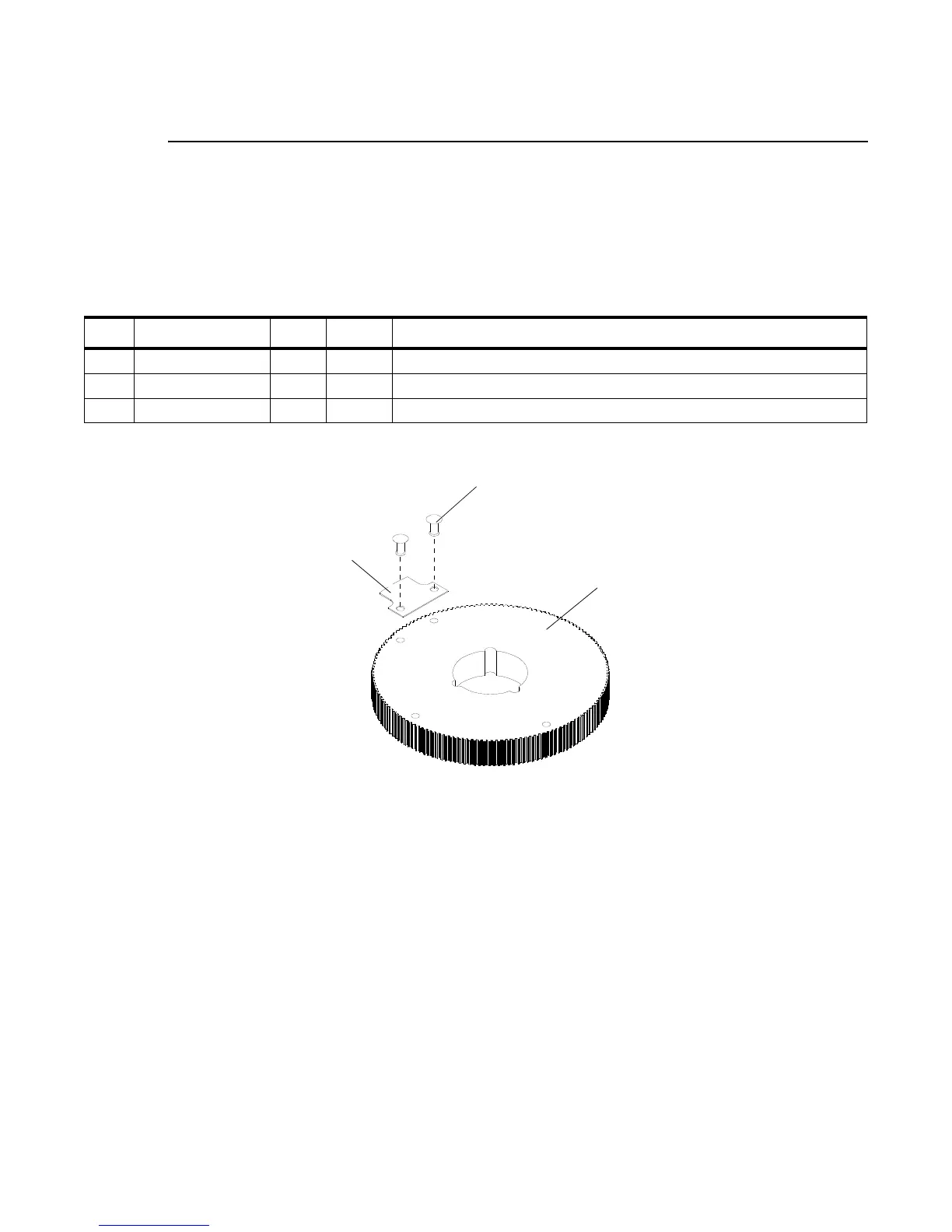

Figure 3-44: Pan Pulley Assembly
No. Item Qty. UM. Description
1 10.9686.0750 1 EA TIMING PULLEY, 170 TOOTH
2 10.9678.0855 1 EA PAN FLAG
3 53.6530.0009 2 EA RIVET, 1/8"OD POP .126-.187 GL
1
2
3 (x2)
