HEAD/YOKE PCB ASSEMBLIES : HEAD CABLE INTERCONNECT
02.9686.0010 0 97
3
Head/Yoke PCB Assemblies
Head Cable Interconnect
21.9686.1121 Rev A
Refer to Figure 3-29

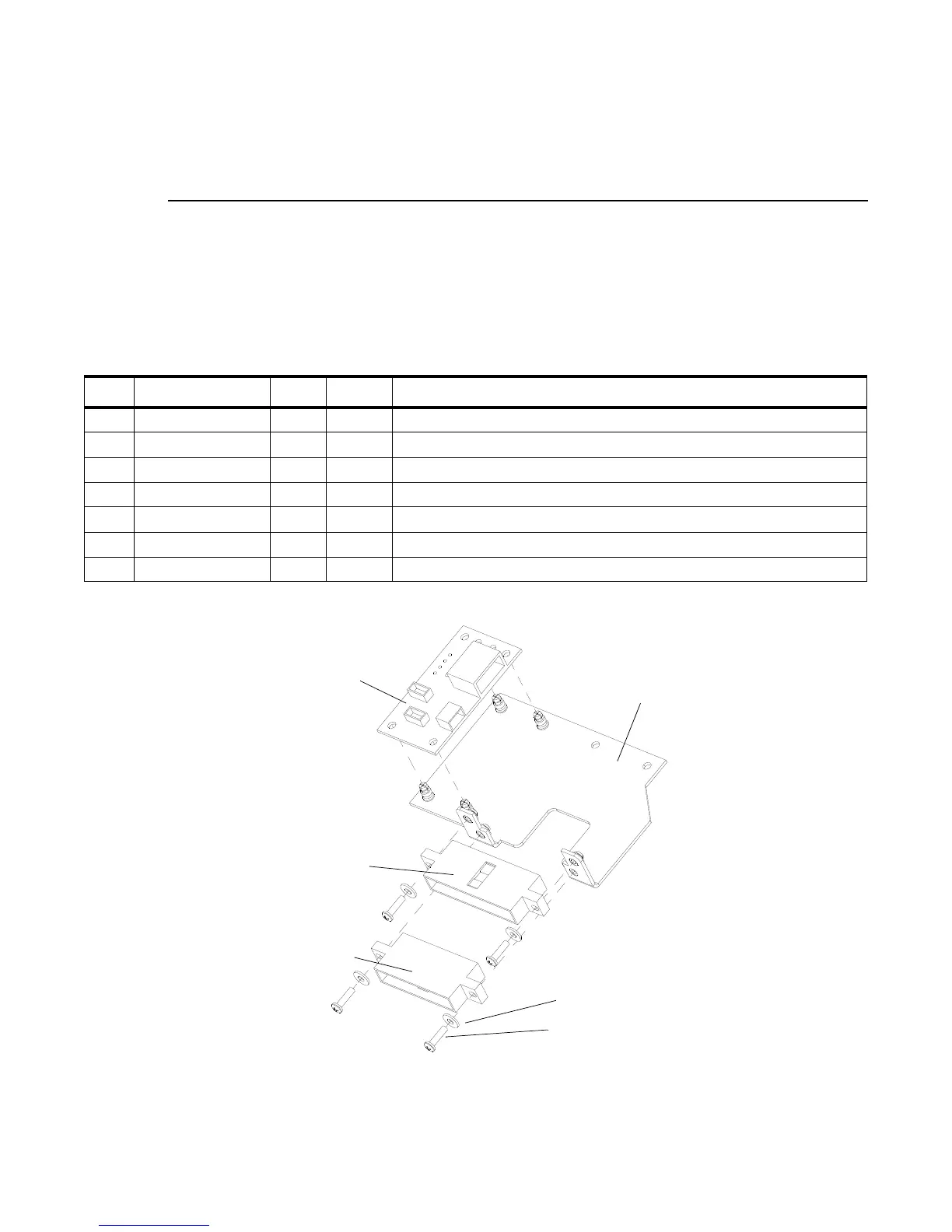

Figure 3-29: Head Cable Interconnect
No. Item Qty. UM. Description
1 10.9686.1120 1 EA BRACKET, HEAD CABLE INTERCONNECT
2 53.6520.0002 4 EA SCREW, 4-40 X 7/16 PPZ
3 55.6621.0001 4 EA WASHER, #4 FLAT ZINC
4 52.6670.0040 1 EA HEADER ASSY, MOD 11 40 POS MTG
5 52.6670.0034 1 EA HEADER ASSY, MOD 11 34 POS MTG
6 23.9686.0208 1 EA CABLE ASSY, ZOOM MOTOR (
CABLE PORTION NOT SHOWN)
7 25.9686.0207 1 EA CABLE ASSY, VARI-BRITE MOTOR (NOT SHOWN)
1
2 (x4)
3 (x4)
4
5
6
