MAINTENANCE PROCEDURES : TILT EOT SENSOR REPLACEMENT
02.9686.0010 0 47
2
Tilt EOT Sensor Replacement
VL Part No: 23.9661.1253
Repair Procedure
Step 1. Disconnect luminaire AC input cable from power source.
Step 2. At tilt-side leg, remove yoke leg cover by removing four 6-32 x 5/16" PPB screws.
Step 3. As shown in Figure 2-18, at the sensor bracket, remove two 10-32 x 1/2" PPZ screws and
remove bracket.
Step 4. Disconnect wiring from tilt encoder board.
Step 5. At sensor, remove two 6-32 x 3/8" PPZ screws and remove sensor from bracket.
Step 6. Replace by performing steps 2 through 5 in reverse order.

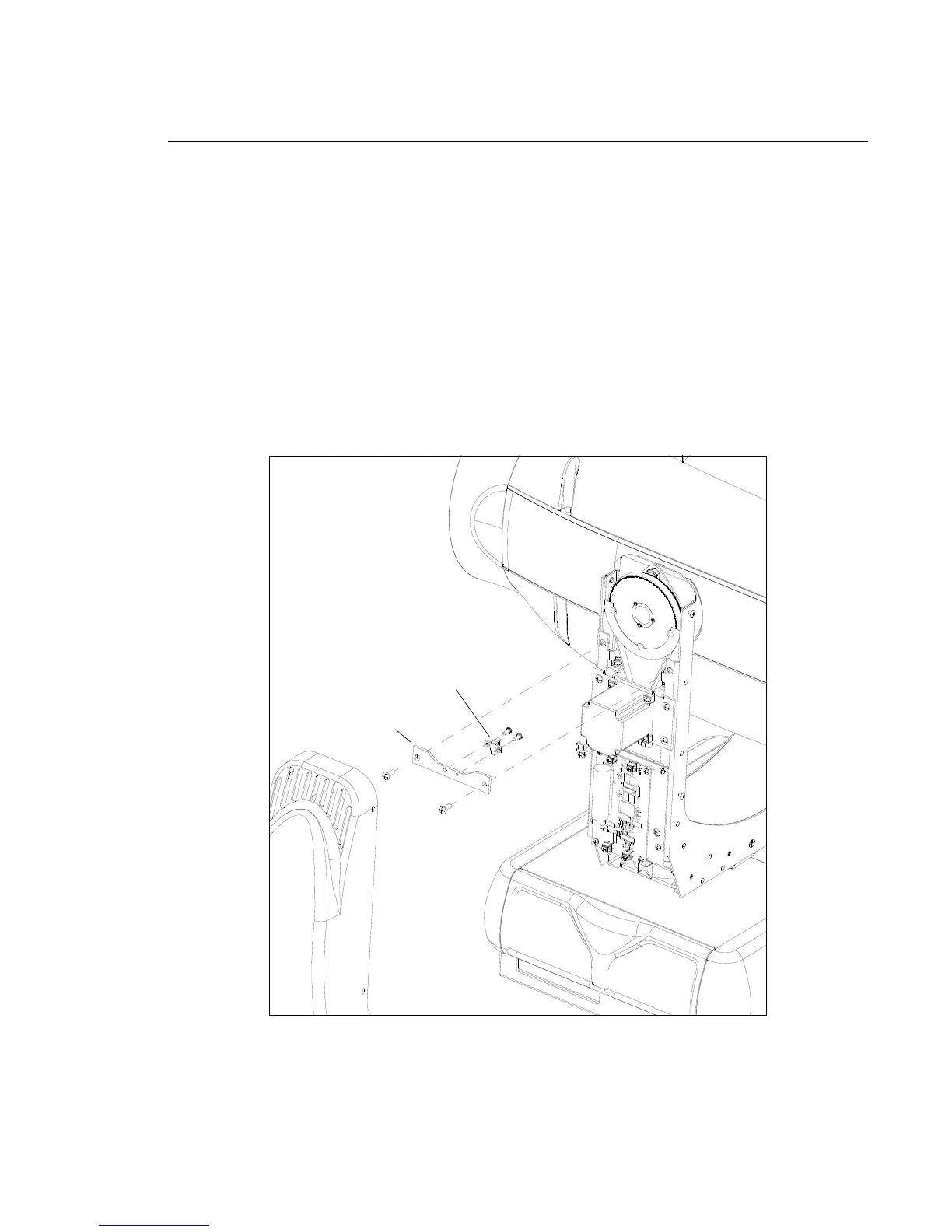

Figure 2-18: Tilt EOT Sensor Replacement
