VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
134 02.9686.0010 0
Color Harness Cable Assembly
25.9686.0205 Rev E
Refer to Figure 3-59

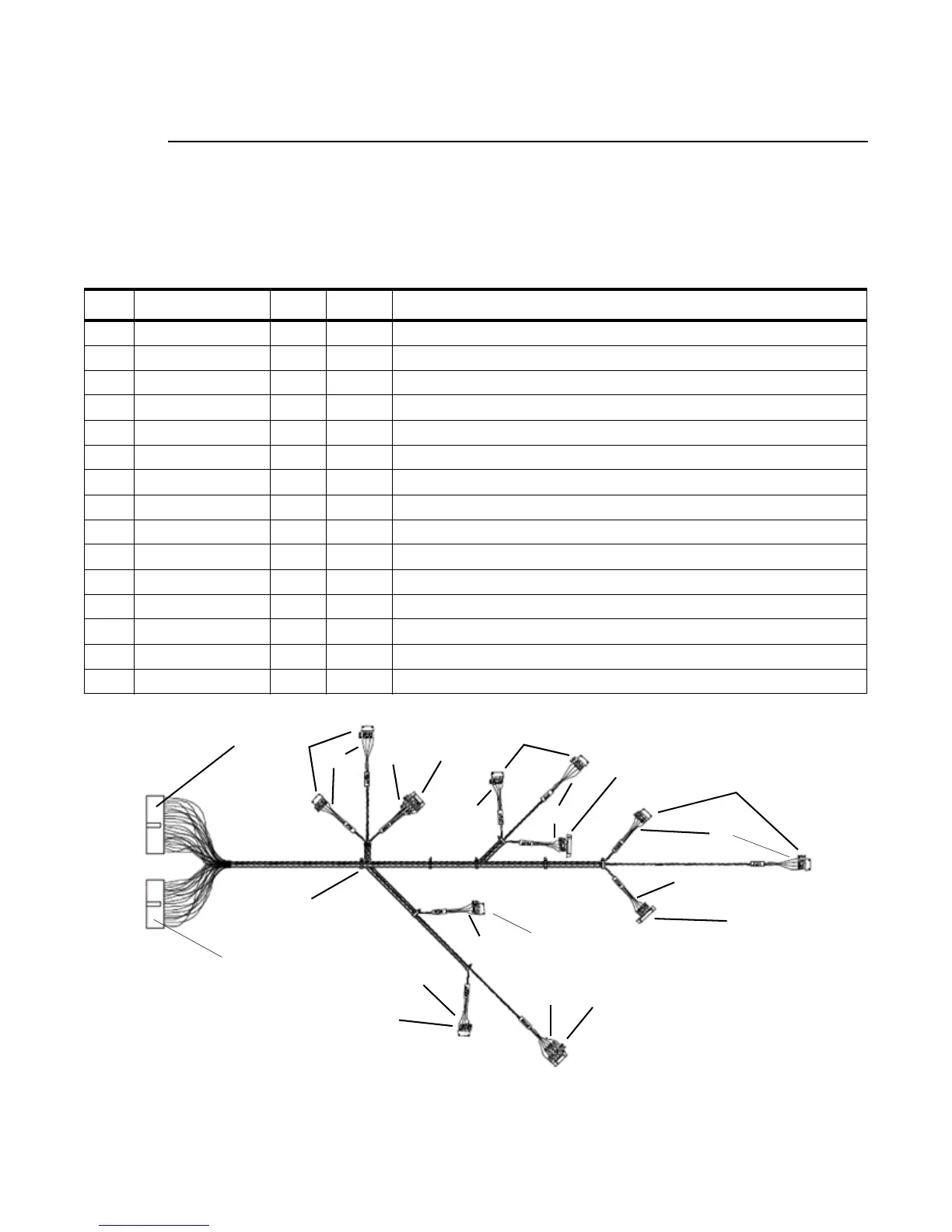

Figure 3-59: Color Harness Cable Assembly
No. Item Qty. UM. Description
1 52.6610.0040 1 EA CONNECTOR, HOUSING 40 POS, 26-22 AWG DBL ROW UNLOADED
2 52.6224.1040 1 EA COVER, FRONT 40 POS MT LATCHING
3 52.6224.2040 1 EA COVER, BACK 40 POS MT
4 52.6610.0034 1 EA CONNECTOR, HOUSING 34 POS, 26-22 AWG DBL ROW UNLOADED
5 52.6224.1034 1 EA COVER, FRONT 34 POS MT LATCHING
6 52.6224.2034 1 EA COVER, BACK 34 POS MT
7 52.8351.0004 52 EA CONTACT, 26-22 AWG RECP MTE
8 52.6467.0011 2 EA CONNECTOR, FEMALE PLUG 11 POS, 30-24 AWG
9 52.6467.0024 20 EA CONTACT, SOCKET 30-24 AWG CRIMP
10 52.6662.0006 8 EA HOUSING, 6 POS 125/2A 2.0 MM PITCH
11 52.8388.0001 32 EA CONTACT, 24-30 AWG FEMALE CRIMP 2.0 MM PITCH
12 55.2186.0001 8 EA CABLE TIE, .10 X 4" SMALL
13 73.2324.0123 13.33 FT WIRE, 24 AWG, 4 COND TW, 300V 200C TEF (BLK-BRN-RED-ORN)
14 73.2328.5000 3.29 FT WIRE, 26 AWG, 6 COND TW, 300V 200C TEF UL1180
15 52.6467.0001 2 EA CONN, FEMALE PLUG, 6 POS 24-30 AWG
4
5
13
6
10, 11
7 (x52)
1
2
3
7 (x52)
12 (x8)
10, 11
10, 11
10, 11
10, 11
15, 9
15, 9
8, 9
8, 9
13
13
13
13
13
13
14
14
