Vari Lite VL3500 - Internal Lens Interconnect Cable Assembly

CABLE ASSEMBLIES : INTERNAL LENS INTERCONNECT CABLE ASSEMBLY
02.9686.0010 0 133
3
Internal Lens Interconnect Cable Assembly
25.9686.0204 Rev 0
Refer to Figure 3-61

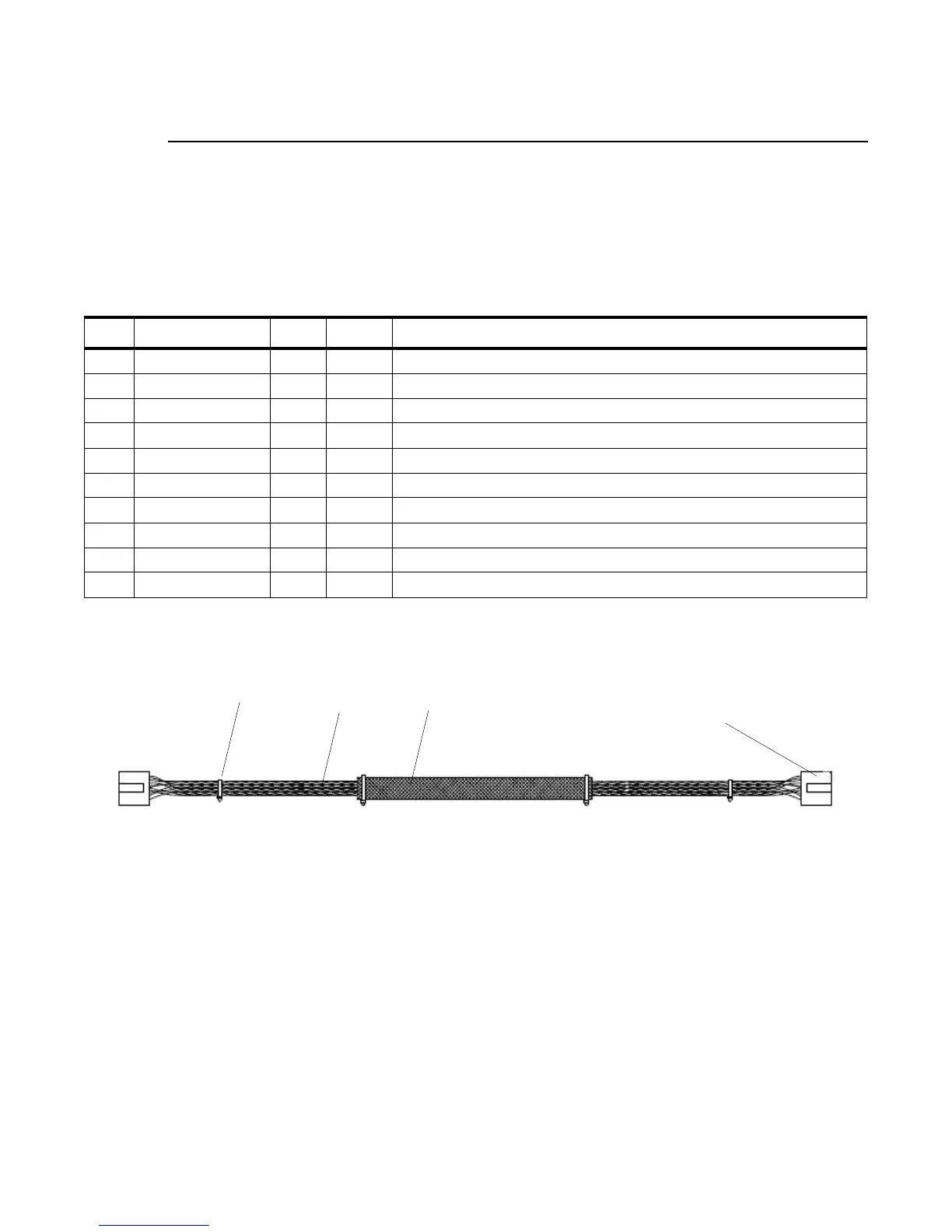

Figure 3-58: Internal Lens Interconnect Cable Assembly
No. Item Qty. UM. Description
1 52.6610.0014 2 EA CONNECTOR, HOUSING 14 POS, 26-22 AWG
2 52.6224.1014 2 EA COVER, FRONT 14 POS MT LATCHING
3 52.6224.2014 2 EA COVER, BACK 14 POS MT
4 55.2186.0001 4 EA CABLE TIE, .10 X 4" SMALL
5 55.6699.0004 0.6 FT SLEEVING, 3/4" NOM. DIA POLY EXP BRAID
6 73.5116.0123 4.0 FT WIRE, 24 AWG, 4 COND TW, 300V 80C (BLK-BRN-RED-ORN)
7 73.5126.0002 2.0 FT WIRE, 26 AWG, 2 COND TW, 300V 80C (BLK-RED)
8 73.5126.0007 2.0 FT WIRE, 26 AWG, 2 COND TW, 300V 80C (BLK-ORN)
9 73.3026.0009 2.0 FT WIRE, 26 AWG 300V 80C WHT
10 52.8351.0004 26 EA CONTACT, 26-22 AWG RECP MTE
1 (x2)
2 (x2)
5
3 (x2)
4 (x4)
6, 7, 8, 9
10 (x26)
