Vari Lite VL3500 - Ignitor to Lamp Socket Cable Assembly

CABLE ASSEMBLIES : IGNITOR TO LAMP SOCKET CABLE ASSEMBLY
02.9686.0010 0 143
3
Ignitor to Lamp Socket Cable Assembly
25.9678.0789 Rev B
Refer to Figure 3-68.

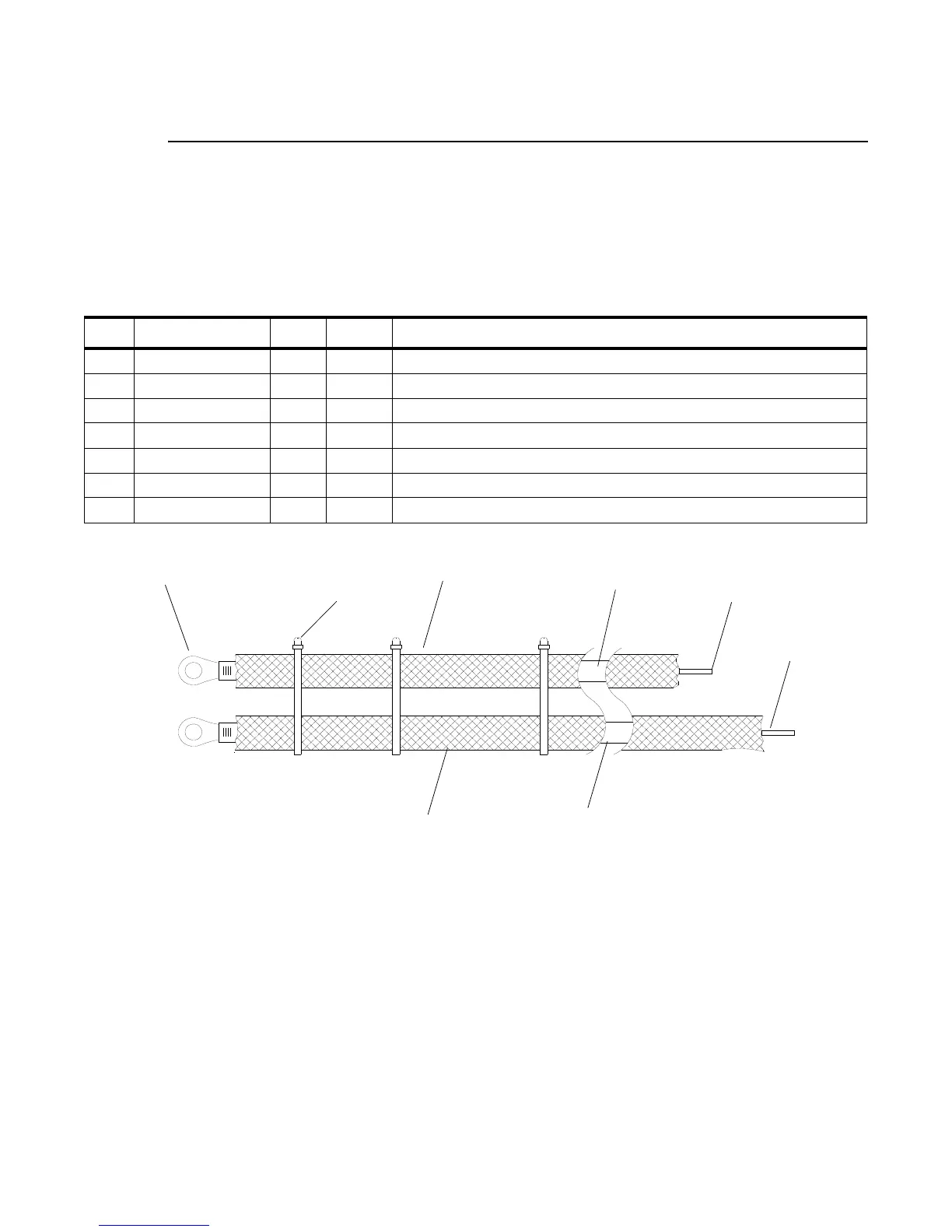

Figure 3-68: Ignitor to Lamp Socket Cable Assembly
No. Item Qty. UM. Description
1 52.8231.0005 2 EA TERM, RING #6 BLUE 16-14 AWG REEL PIDG
2 55.2186.0001 3 EA CABLE TIE, .10"WD 4.00"LG SMALL
3 55.2260.0133 6.83 FT SLEEVING, FIBERGLASS .133" ID
4 73.7100.0001 2.84 FT WIRE, 16AWG 20KVDC 41/32 STRD 200C SILICONE 2 X 17" (
NOT SHOWN)
5 73.7190.0001 3.66 FT WIRE, 250 DEG C
6 55.2200.0003 .33 FT HEAT SHRINK TUBING 2 X 2" (NOT SHOWN)
7 52.8274.1614 2 EA CONN, BUTT SPLICE, 16-14 PIDG
7
2 (x3)
1 (x2)
From Ignitor Output To Arc Lamp Socket
7
3 (1 x 44" each)
3 (1 x 48" each)
5 (1 x 20" each)
5 (1 x 24" each)
