HEAD ASSEMBLY : INTERNAL LENS MOUNTING KIT
02.9686.0010 0 81
3
Internal Lens Mounting Kit
21.9686.3105 Rev A
Refer to Figure 3-18

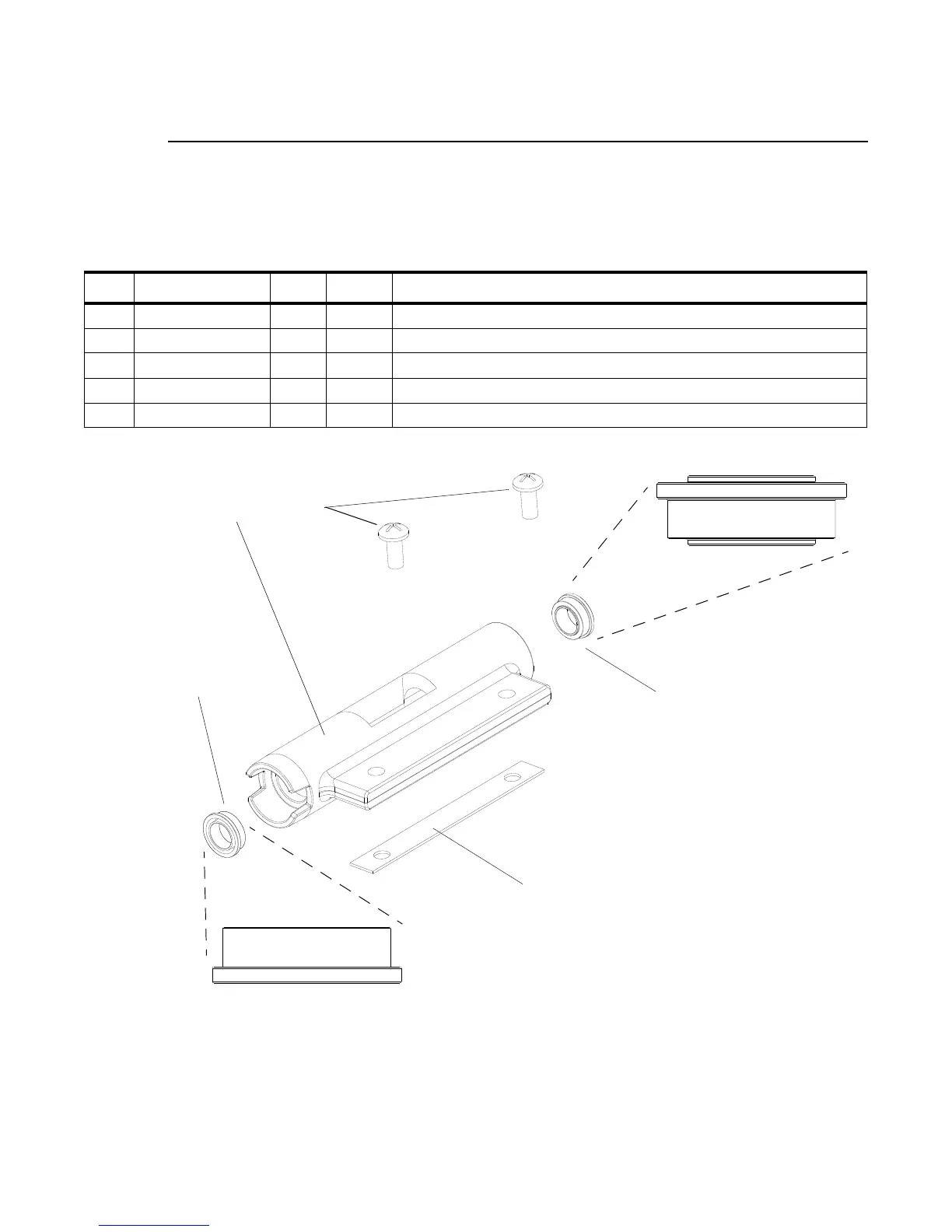

Figure 3-18: Internal Lens Mounting Kit
No. Item Qty. UM. Description
1 10.9686.1141 1 EA INTERNAL LENS PIVOT ADAPTER
2 10.9686.2181 1 EA SPACER, LENS MOUNTING
3 53.6524.0002 2 EA SCREW, 6-32 X 5/16 PPB
4 54.1259.0006 1 EA BEARING, FLANGED, EXTENDED RACE 0.25" ID
5 54.1259.0007 1 EA BEARING, FLANGED, 0.25" ID
2
1
3
4
5
Important: Extended race
bearing must be installed
in the top of the pivot
adapter.
