Vari Lite VL3500 - EMI Filter to Power Switch Cable Assembly

CABLE ASSEMBLIES : EMI FILTER TO POWER SWITCH CABLE ASSEMBLY
02.9686.0010 0 147
3
EMI Filter to Power Switch Cable Assembly
25.9678.0811 Rev C
Refer to Figure 3-72

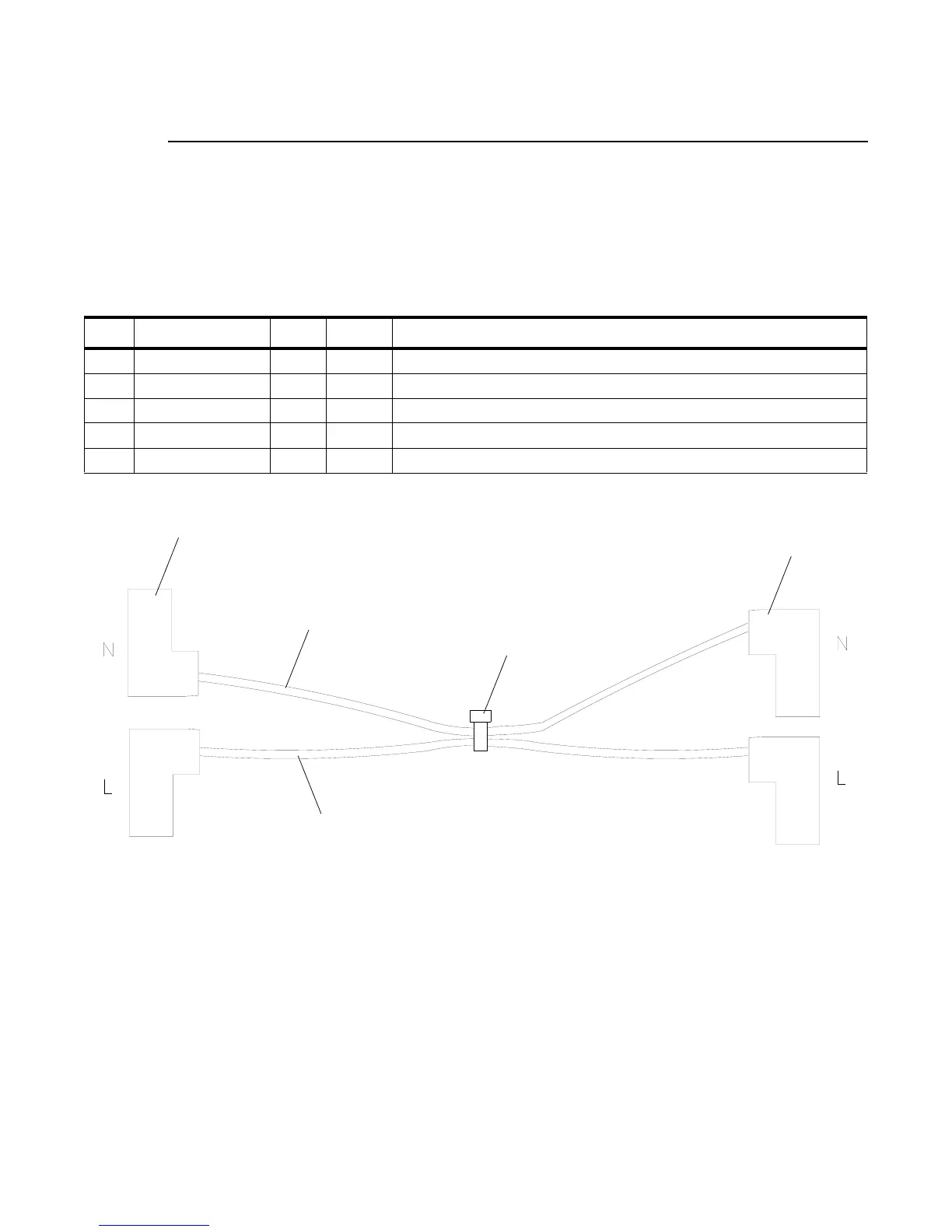

Figure 3-72: EMI Filter to Power Switch Cable Assembly
No. Item Qty. UM. Description
1 52.8313.0001 2 EA RCPT, FASTON 1/4" 18-14 AWG FLAG DBL CRP (REEL)
2 52.8392.0001 2 EA RECP, FASTON .187"X0.32" 16-14 AWG FLAG DBL CRP
3 55.2186.0001 1 EA CABLE TIE, .10"WD 4.00"LG SMALL
4 73.6016.0009 0.83 FT WIRE, 16AWG 600V 105C PVC WHT UL1015
5 73.6016.0010 0.83 FT WIRE, 16AWG 600V 105C PVC BLK UL1015
1 (x2)
2 (x2)
4
3
5
White
Black
White
Black
