VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
66 02.9686.0010 0
80mm Fan Assembly
21.9686.6619 Rev A
Refer to Figure 3-7

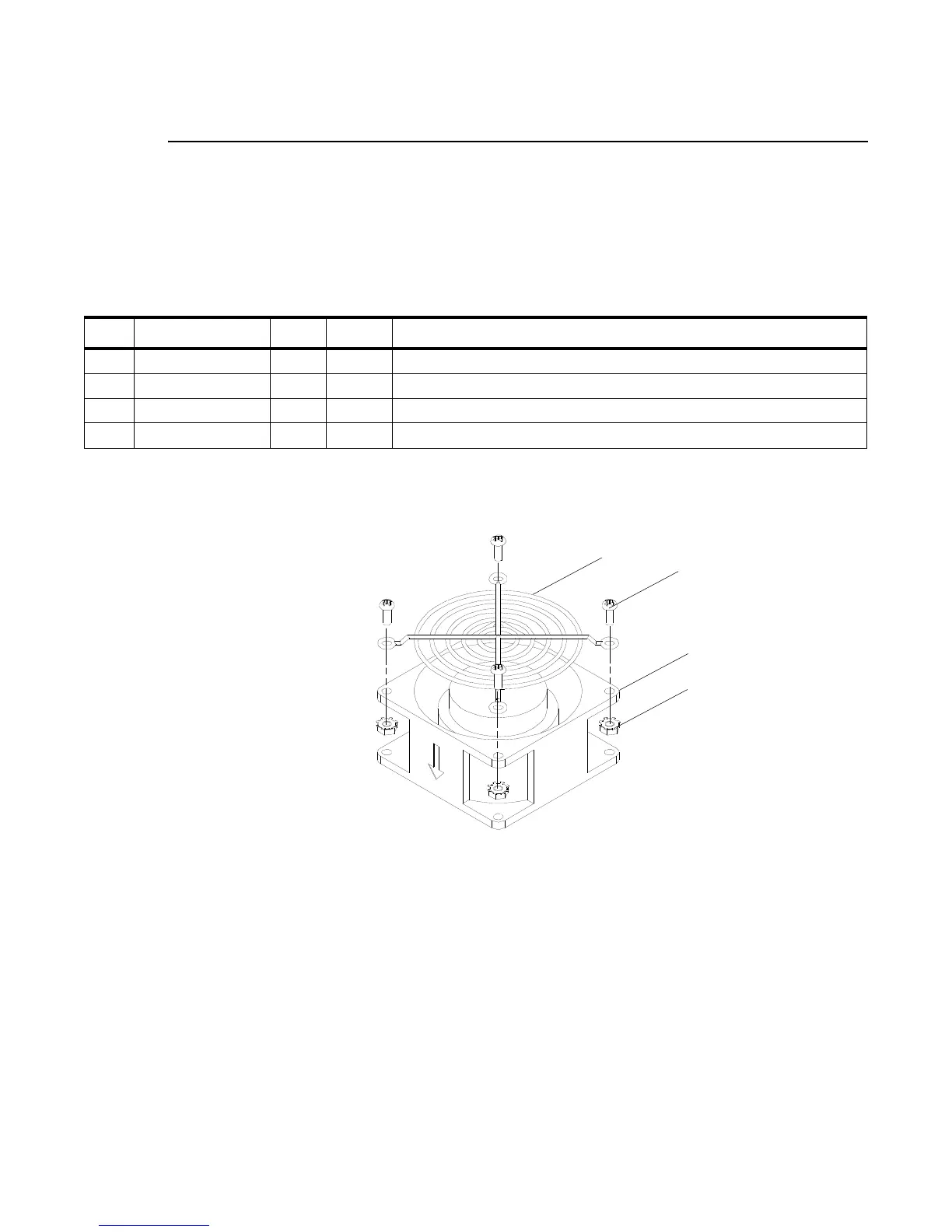

Figure 3-7: 80mm Fan Assembly
No. Item Qty. UM. Description
1 40.7144.0001 1 EA FAN, TUBEAXIAL 80 X 80 X 38 MM, 230V, 36 CFM, BBEARING, 95°C
2 53.2200.0006 4 EA NUT, 6-32 KEPS SS
3 53.6558.0001 4 EA SCREW, 6-32 X 3/8" PPZ
4 55.7016.0001 1 EA FAN GUARD, 80MM NICKEL PLATED STEEL WIRE
1
2 (x4)
3 (x4)
4
