Vari Lite VL3500 - Head Assembly; Head Structure Assembly

HEAD ASSEMBLY : HEAD STRUCTURE ASSEMBLY
02.9686.0010 0 59
3
Head Assembly
Head Structure Assembly
21.9686.0600 Rev B
Refer to Figure 3-1

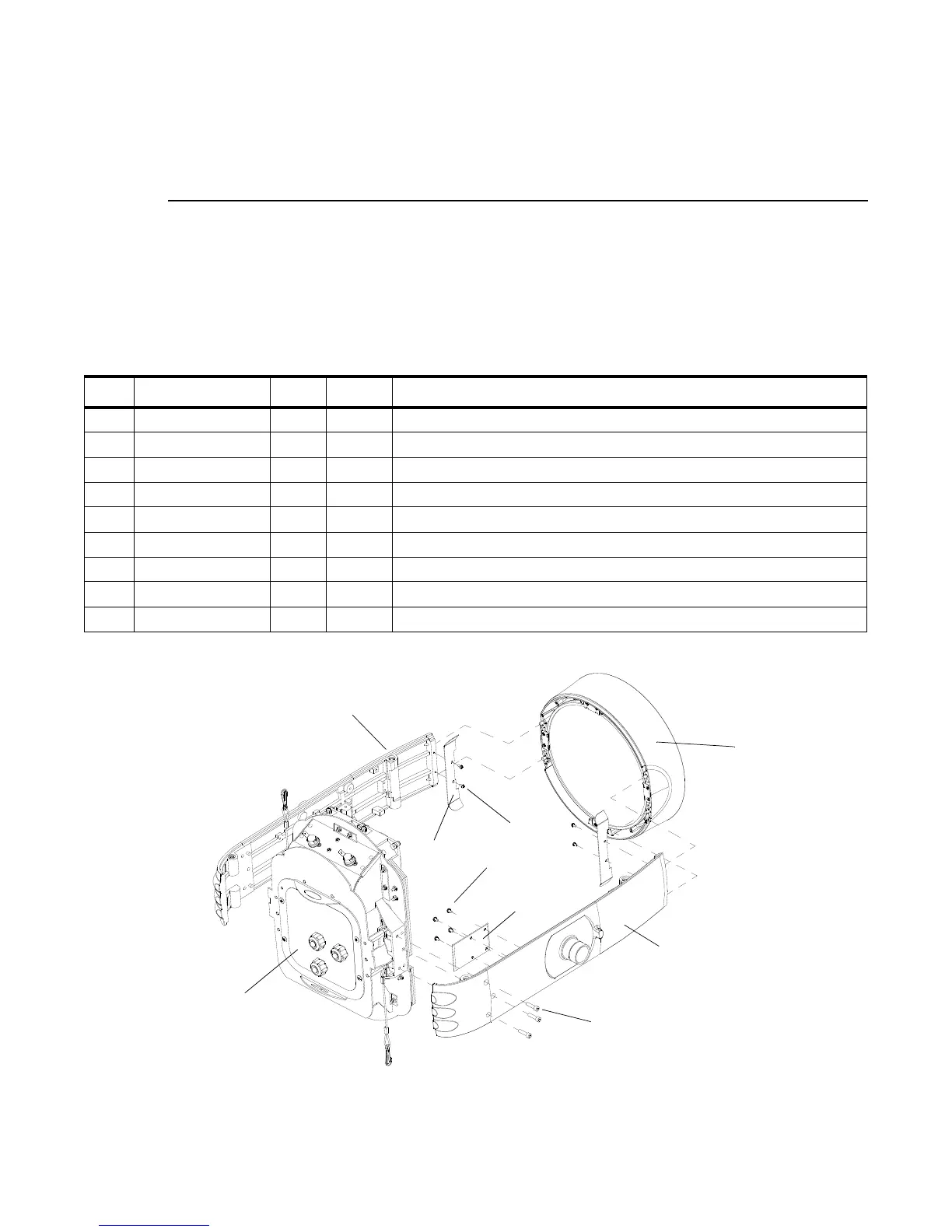

Figure 3-1: Head Structure Assembly
No. Item Qty. UM. Description
1 21.9686.0615 1 EA ASSY, BACKEND
2 12.9686.0623 1 EA RIGHT SIDE RAIL, MACHINED
3 12.9686.0625 1 EA LEFT SIDE RAIL, MACHINED
4 21.9686.0617 1 EA ASSEMBLY, FRONT CASTING/LENS
5 53.6515.0001 6 EA SCREW, 10-32 X 3/4" SCB CAP
6 10.9686.0619 2 EA RETAINER, WIRING HARNESS
7 53.6558.0007 8 EA SCREW, #6-32 X 1/4" PPZ SEMS
8 10.9686.0639 2 EA LIGHT BAFFLE, FRONT
9 53.6682.0002 4 EA SCREW, 4-40 X 1/4 PPZ SEMS
1
2
3
5 (x6)
4
6
7 (x8)
8
9 (x4)
