Vari Lite VL3500 - Rear Strobe Blade Assembly

HEAD ASSEMBLY : REAR STROBE BLADE ASSEMBLY
02.9686.0010 0 89
3
Rear Strobe Blade Assembly
22.9686.0437 Rev 0
Refer to Figure 3-23

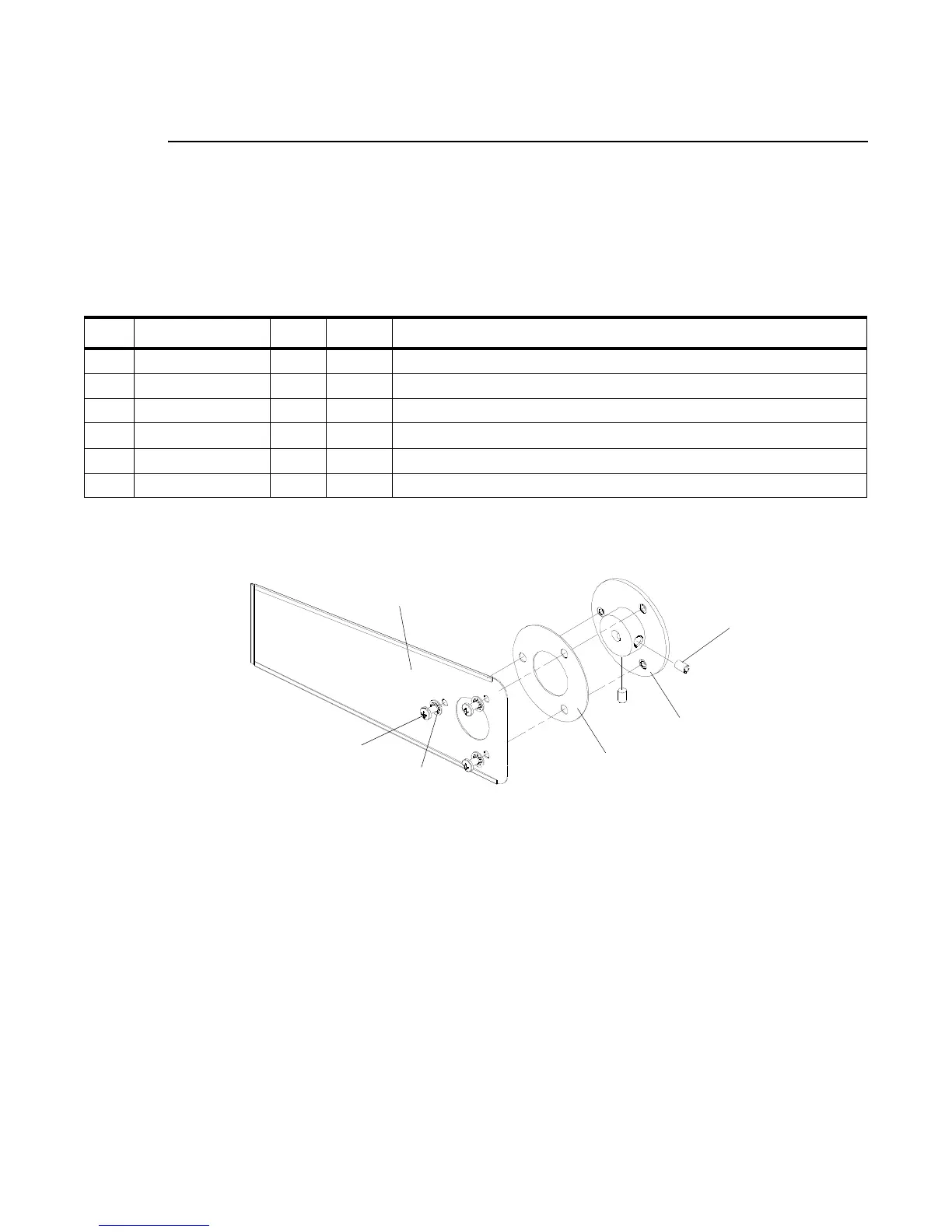

Figure 3-23: Rear Strobe Blade Assembly
No. Item Qty. UM. Description
1 10.9678.0432 1 EA HUB, STROBE BLADE
2 10.9678.0466 1 EA STROBE BLADE, DAMPER
3 10.9686.0431 1 EA STROBE BLADE
4 53.5558.0188 2 EA SCREW, 8-32 X .188 LG SET SS BRASS TIP UNC-2A
5 53.6597.0001 3 EA SCREW, 4-40 X 3/16" PPZ
6 55.3303.0004 3 EA WASHER, #4 LOCK INT. TOOTH SS
1
2
3
4 (x2)
5 (x3)
6 (x3)
