COMPONENTS : ENCLOSURE COMPONENTS
02.9686.0010 0 7
1
Enclosure Components

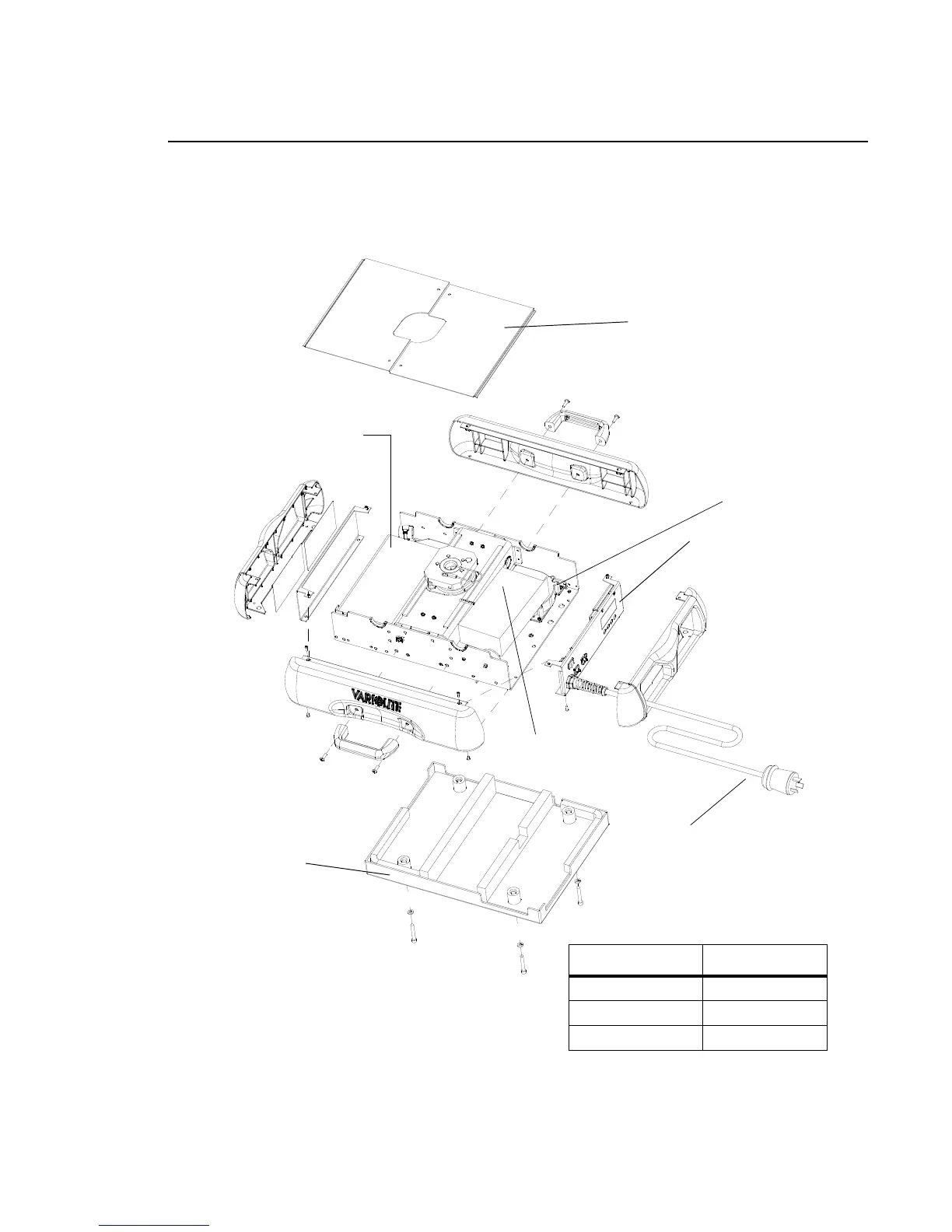

The following illustration shows the major sub-assemblies, which are located in the luminaire
enclosure assembly. (Yoke and head assemblies not shown for clarity.)
Enclosure Top Covers
150W +24V/6.3A
Input Panel Assembly
1500W Arc Ballast Module
Enclosure Bottom
Ventilation Cover
Power Supply
Fan
containing DMX Input PCB
and Menu Display
* International (Harmonized) Standard
AC Input Cable
Requires standard AC
power distribution from
200-264 VAC, 50/60 Hz,
7 to 12 A depending on
the AC supply voltage.
Wire* Connection
Green/Yellow AC Ground
Blue AC Neutral
Brown AC Line
