HEAD/YOKE PCB ASSEMBLIES : COLOR SENSOR PCB INLINE ASSEMBLY
02.9686.0010 0 99
3
Color Sensor PCB Inline Assembly
24.9686.0428 Rev C
Refer to Figure 3-31

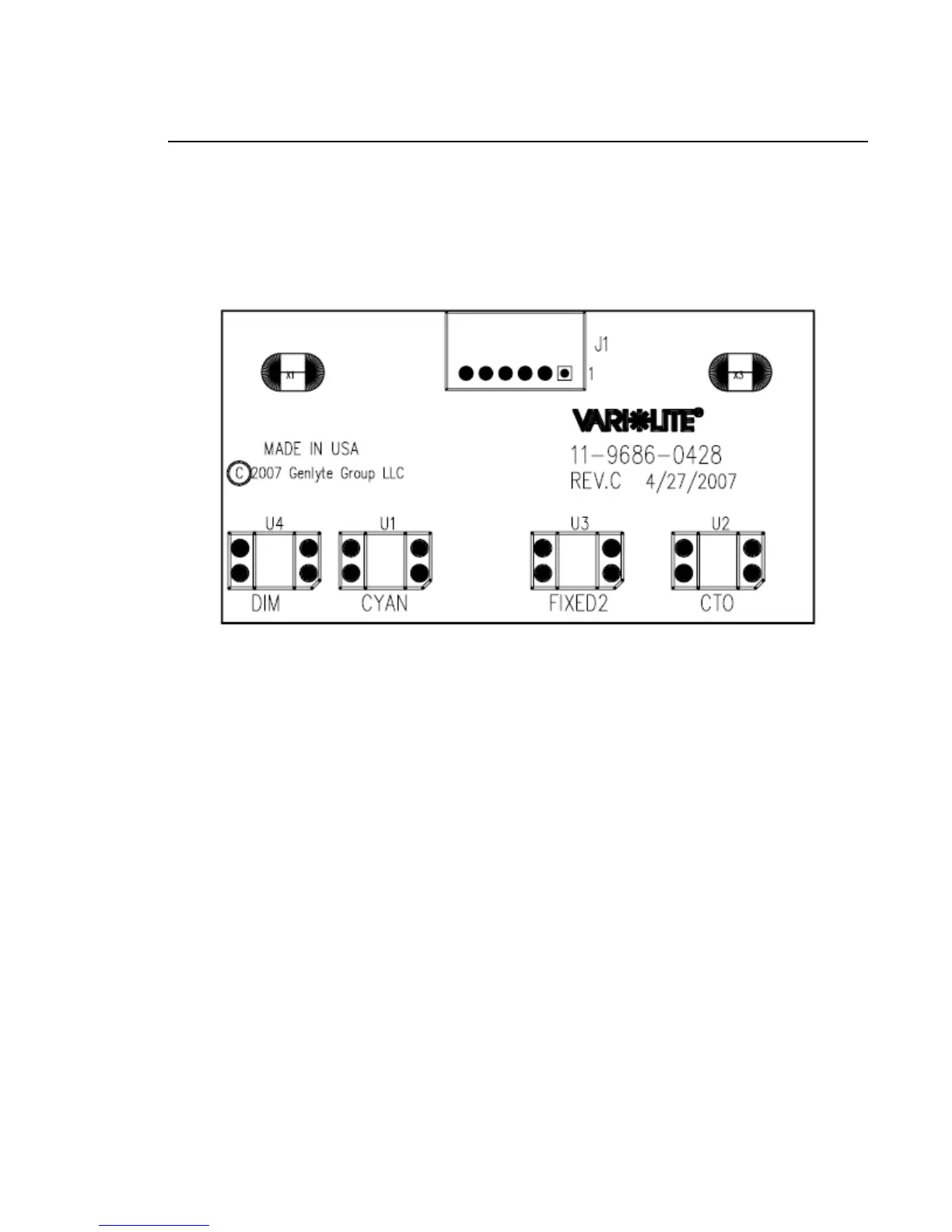

Figure 3-31: Color Sensor PCB Inline Assembly
