Vari Lite VL3500 - Front Strobe Blade Assembly

VARI❋LITE® - VL3500™ WASH LUMINAIRE SERVICE MANUAL
90 02.9686.0010 0
Front Strobe Blade Assembly
22.9686.0438 Rev 0
Refer to Figure 3-24

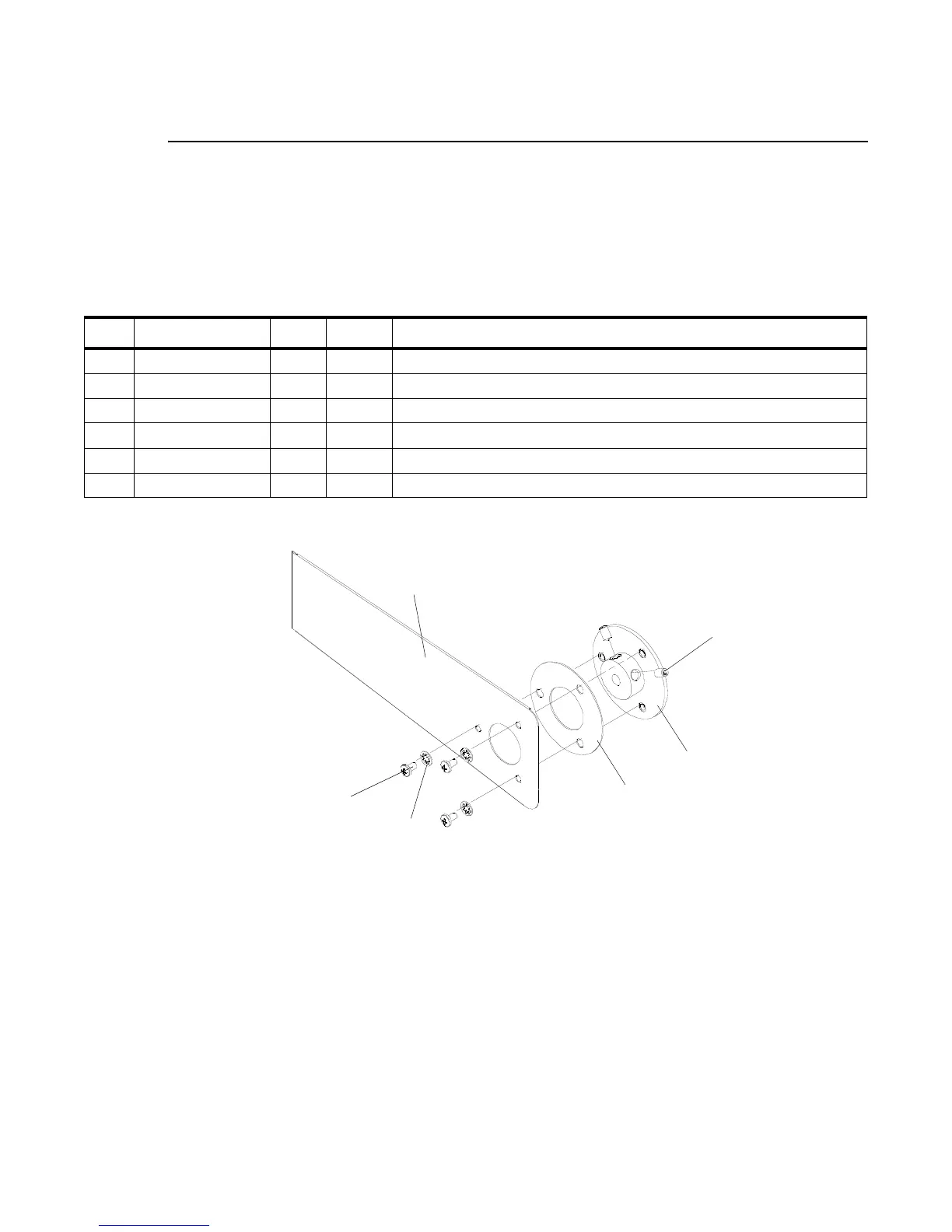

Figure 3-24: Front Strobe Blade Assembly
No. Item Qty. UM. Description
1 10.9678.0432 1 EA HUB, STROBE BLADE
2 10.9678.0466 1 EA STROBE BLADE DAMPER
3 10.9686.0431 1 EA STROBE BLADE
4 53.5558.0188 2 EA SCREW, 8-32 X .188 LG SET SS BRASS TIP UNC-2A
5 53.6597.0001 3 EA SCREW, 4-40 X 3/16" PPZ
6 55.3303.0004 3 EA WASHER, #4 LOCK INT. TOOTH SS
1
2
3
4 (x2)
5 (x3)
6 (x3)
