Vari Lite VL3500 - LVS to Yoke Dual AC Fan Cable Assembly

CABLE ASSEMBLIES : LVS TO YOKE DUAL AC FAN CABLE ASSEMBLY
02.9686.0010 0 127
3
LVS to Yoke Dual AC Fan Cable Assembly
25.9686.0843 Rev A
Refer to Figure 3-52

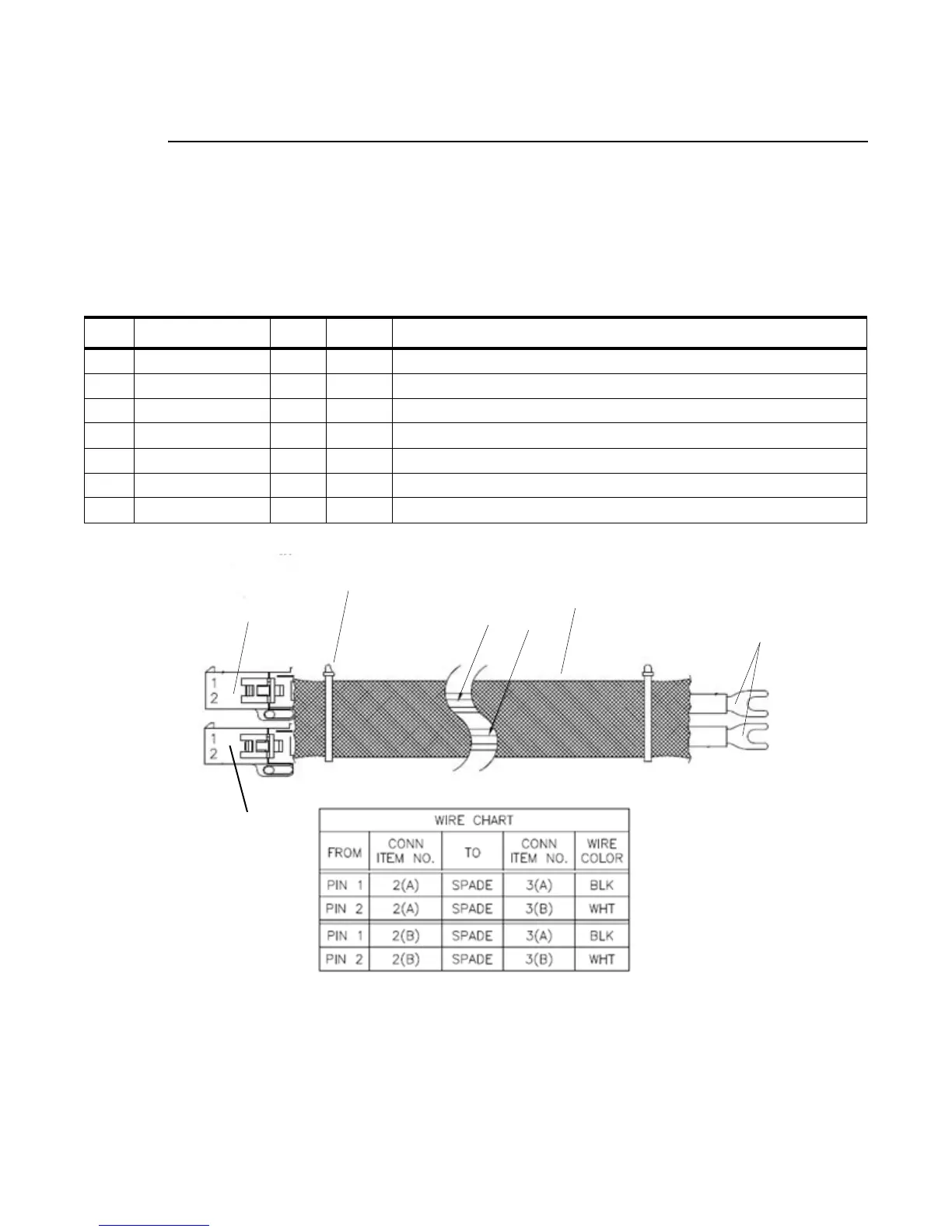

Figure 3-52: LVS to Yoke Dual AC Fan Cable Assembly
No. Item Qty. UM. Description
1 52.6664.0001 4 EA CONTACT, 22-26AWG FEMALE MATE-N-LOK 2
2 52.6664.0002 2 EA CONN, HOUSING 2 POS CAP MATE-N-LOK 2
3 52.8231.0008 2 EA TERM, SPADE #6 RED 22-16AWG INSERT
4 55.2186.0001 2 EA CABLE TIE, .10" WD 4.00"LG SMALL
5 55.6699.0002 2.08 FT SLEEVING, 1/4" NOM.DIA. POLY EXP BRAIDED
6 73.6222.0009 4.34 FT WIRE, 22AWG 600V 200C TFE WHT UL1199
7 73.6222.0010 4.34 FT WIRE, 22AWG 600V 200C TFE BLK UL1199
1, 2
3
4 (x2)
5
6
7
1, 2
2 (A)
2 (B)
3 (A)
3 (B)
