YOKE ASSEMBLY : TILT MOTOR ASSEMBLY
02.9686.0010 0 93
3
Tilt Motor Assembly
21.9678.0765 Rev E
Refer to Figure 3-26

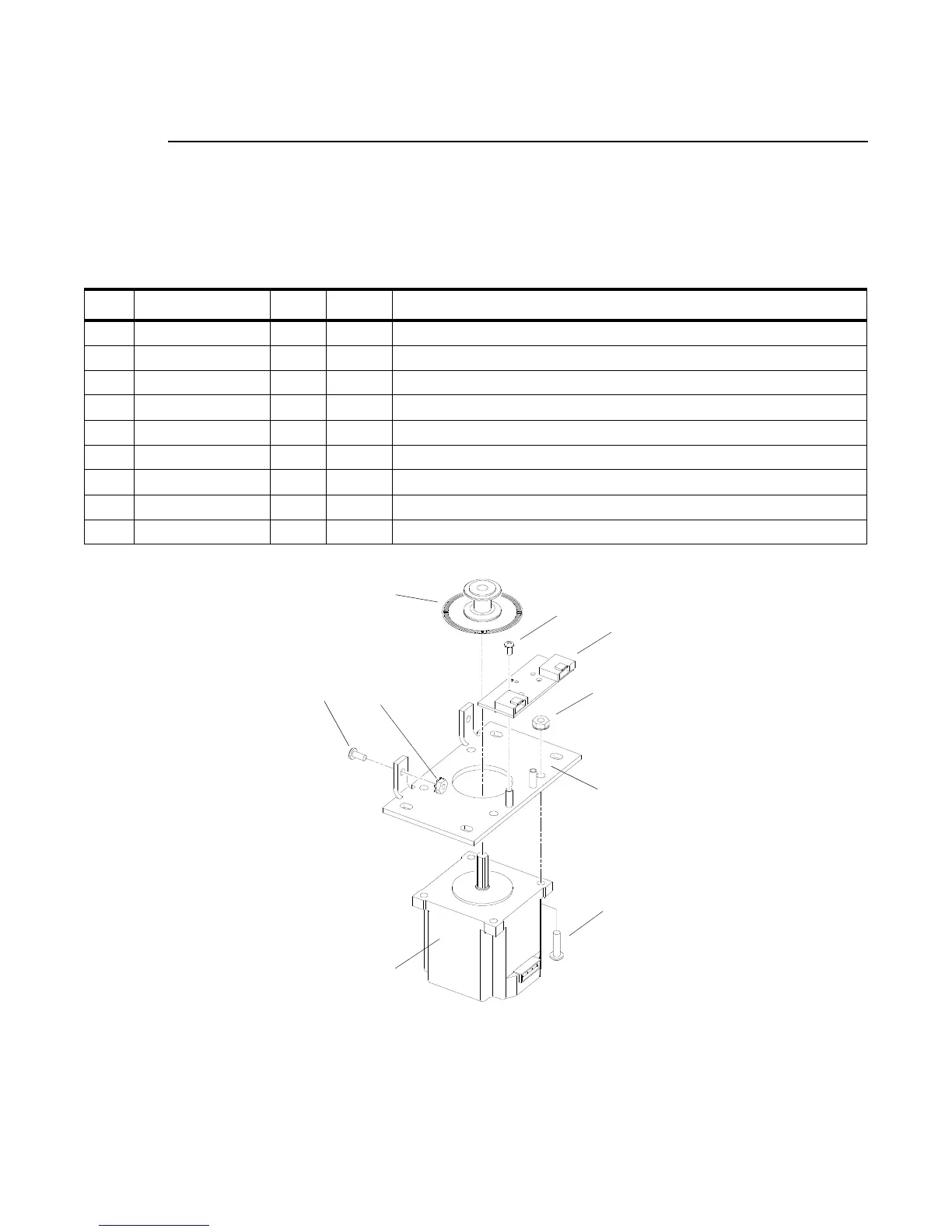

Figure 3-26: Tilt Motor Assembly
No. Item Qty. UM. Description
1 10.9678.0763 1 EA PLATE, TILT MOTOR MOUNT
2 21.9678.0708 1 EA ASSY, DRIVE PULLEY
3 24.9661.9629 1 EA PCB ASSY, PAN/TILT ENCODER
4 44.9678.0680 1 EA MOTOR, 3 PHASE SIZE 23 HIGH TORQUE
5 53.2200.0006 2 EA NUT, 6-32 KEPS SS
6 53.2200.0008 4 EA NUT, 8-32 KEPS SS
7 53.6525.0001 2 EA SCREW, 6-32 X 5/16" PPZ
8 53.6546.0001 4 EA SCREW, 8-32 X 5/8" PPB
9 53.6682.0002 2 EA SCREW, 4-40 X 1/4"LG PPZ SEMS-EXT
1
2
3
4
5 (x2)
6 (x4)
7 (x2)
8 (x4)
9 (x2)
Note: Vari-Lite recommends
that this motor be replaced as a
complete assembly. Although
you can replace only the motor,
the pulley (Item 2) is bonded to
the motor shaft during
assembly and cannot be
removed intact. If you order a
replacement motor (Item 4),
also order the pulley (Item 2).
Contact Vari-Lite Customer
Service for installation
information.
